NB5Q-TW00B Omron
Original price
$598.52
-
Original price
$3,664.50
Original price
$598.52
$598.52
-
$3,664.50
Current price
$598.52
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

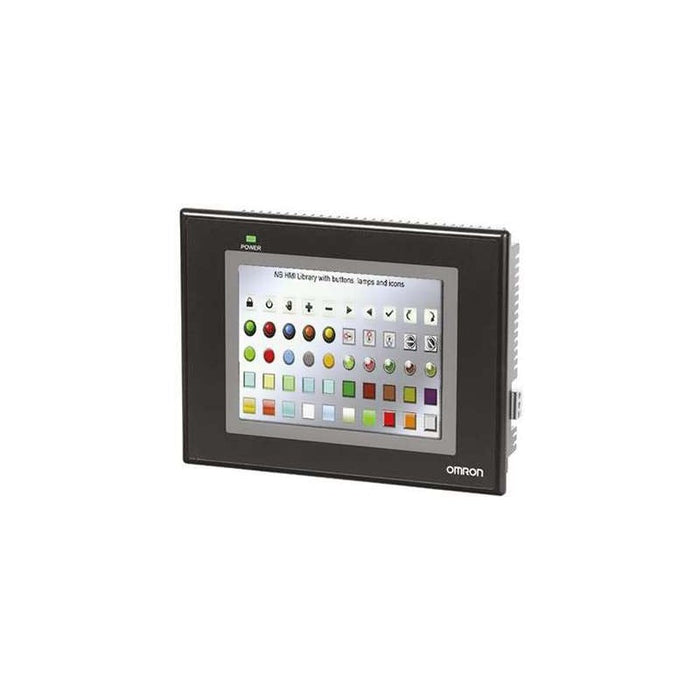

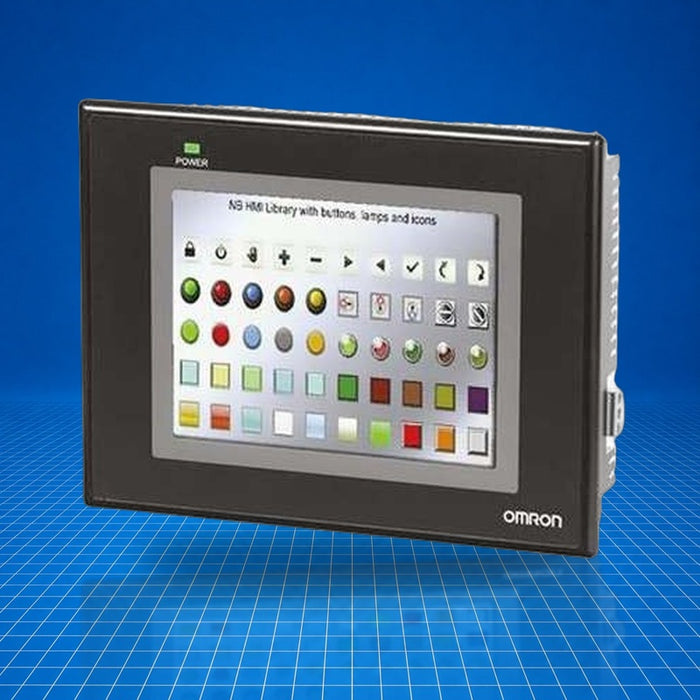

The NB5Q-TW00B is a 5.7-inch NB series programmable terminal from Omron, serving as an HMI operator interface in control systems. It employs a color TFT LCD and integrates with programmable logic controllers through multiple serial and Ethernet communications. Typical installations include machine-level monitoring, parameter setting, and operational display in manufacturing, packaging, and material handling environments.
Best Suited For
- Machine-level operator interfaces
- Parameter entry and status display
- Integration via RS-232C/422A/485 serial links
- Networked PLC systems using 10/100 BASE-T Ethernet
- Applications requiring compact panel-mounted displays
Display size
5.7-inch TFT LCD
Display resolution
320 × 240
Internal memory
128 MB
Power consumption
6 W
Front-side protection
IP65
Technical Specifications
I/O & Electrical
Internal memory
128 MB (including system area)
Serial COM1
RS-232C/422A/485 (not isolated), 15 m (RS-232C), 500 m (RS-422A/485), D-Sub 9-pin
Serial COM2
RS-232C/422A/485 (not isolated), 15 m (RS-232C), 500 m (RS-422A/485), D-Sub 9-pin
Ethernet
10/100 BASE-T
Communication & Power
Line voltage
20.4 to 27.6 V DC (24 V DC -15 % to +15 %)
Power consumption
6 W
Backlight
LED (50 000 h at 25 °C)
USB Slave
USB 2.0 full-speed, Type B, up to 5 m cable
Physical & Environmental
Dimensions (H × W × D)
142 × 184 × 46 mm
Weight
320 g max.
Touch panel
Analog resistive, resolution 1024 × 1024, 1 million touches
Operating temperature
0 to 50 °C
Operating humidity
10 % to 90 % RH (without condensation)
Front-side protection
IP65 (dust-proof and drip-proof from front)
Certifications
EC DirectivesKCcUL508
Obtained standards include EC Directives, KC, cUL508. Noise immunity: IEC 61000-4-4, 2 kV (power cable). No corrosive gases; flash memory rated for 100 000 writes.
