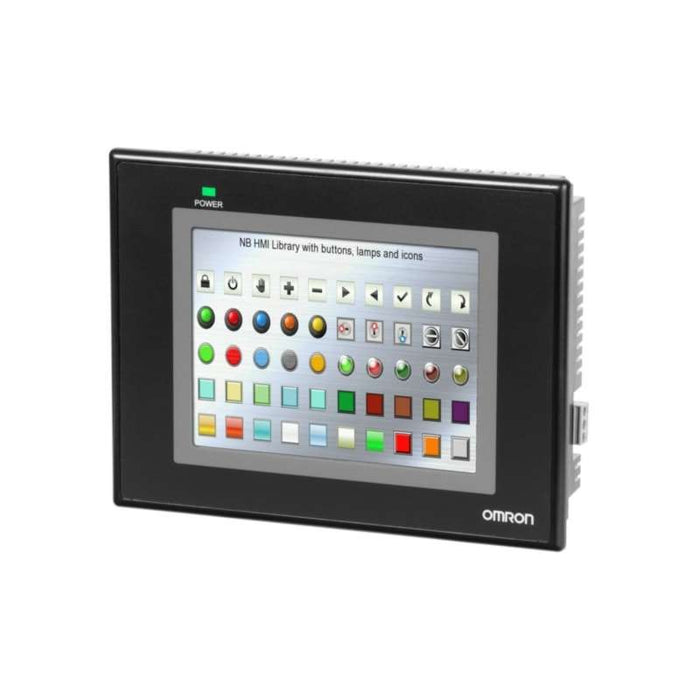

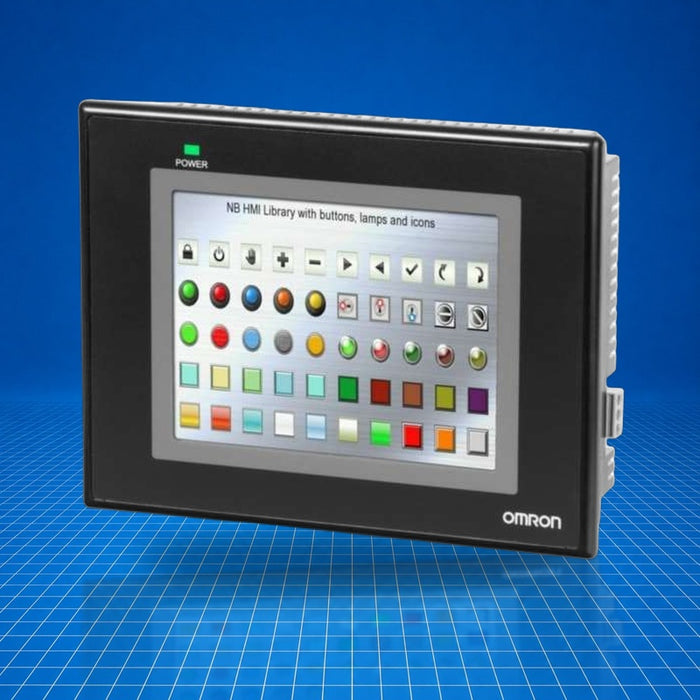

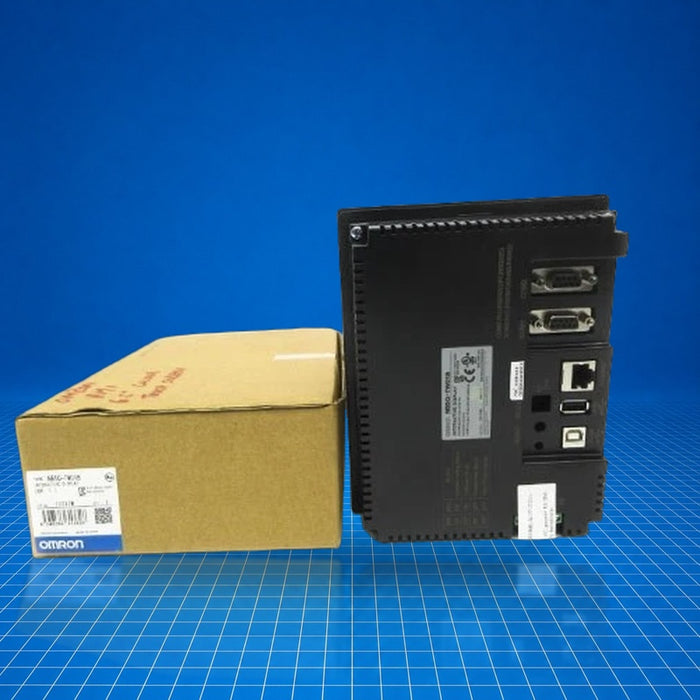

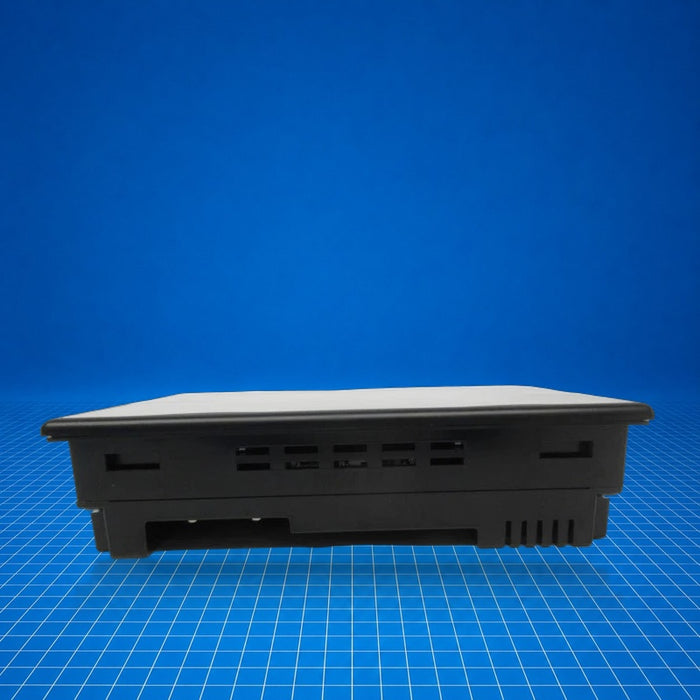

The NB5Q-TW01B is a programmable terminal (HMI) in Omron's NB-Series (-V1 family), offering a 5.7-inch TFT LCD display interfacing control systems and operators. It functions as the human-machine interface in industrial automation, typically deployed for status monitoring, parameter entry, and diagnostics. It connects to micro-PLC and other control devices via serial communications, USB, and Ethernet. NB5Q-TW01B is often used in machine applications such as packaging, material handling, and compact control stations.
Best Suited For
- Interface to Omron CP1-series micro-PLC
- Small to mid-sized machine operator panels
- Parameter setting and local diagnostics
- Space-constrained panel installations
Display size
5.7-inch TFT LCD
Display resolution
320 × 234
Internal memory
128 MB (including system area)
Line voltage
20.4 to 27.6 V DC
Power consumption
9 W
Technical Specifications
I/O & Electrical
Line voltage
20.4 to 27.6 V DC (24 V DC -15 % to +15 %)
Power consumption
9 W
Communication & Power
Internal memory
128 MB (including system area)
USB Host
USB 2.0 full-speed, type A, 5 V, 150 mA
USB Slave
USB 2.0 full-speed, type B, up to 5 m

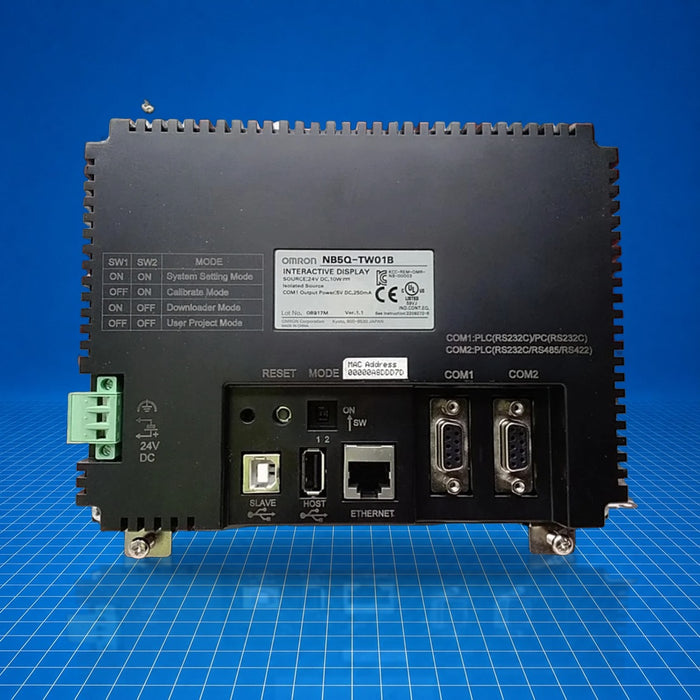

Serial (COM1)
RS-232C/422A/485 (not isolated), 15 m max (RS-232C), 500 m max (RS-422A/485), D-Sub 9-pin
Serial (COM2)
RS-232C/422A/485 (not isolated), same distances, D-Sub 9-pin
Ethernet
10/100 base-T
Physical & Environmental
Display type
TFT LCD, 65,536 colors, LED backlight
Backlight lifetime
50,000 h at 25 °C
Touch panel
Analog resistive, 1024×1024 resolution, 1M touches
Dimensions (H×W×D)
142 × 184 × 46 mm
Weight
320 g max
Enclosure rating (front)
IP65 (front only)
Operating temperature
0 to 50 °C
Operating humidity
10 to 90 % RH (no condensation)
Noise immunity
IEC 61000-4-4, 2 kV (power cable)
Certifications
EC DirectivesKCcUL508
Obtained standards: EC Directives, KC, cUL508.
