NS10-TV01B-V2 Omron
Original price
$1,462.48
-
Original price
$5,367.00
Original price
$1,462.48
$1,462.48
-
$5,367.00
Current price
$1,462.48
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

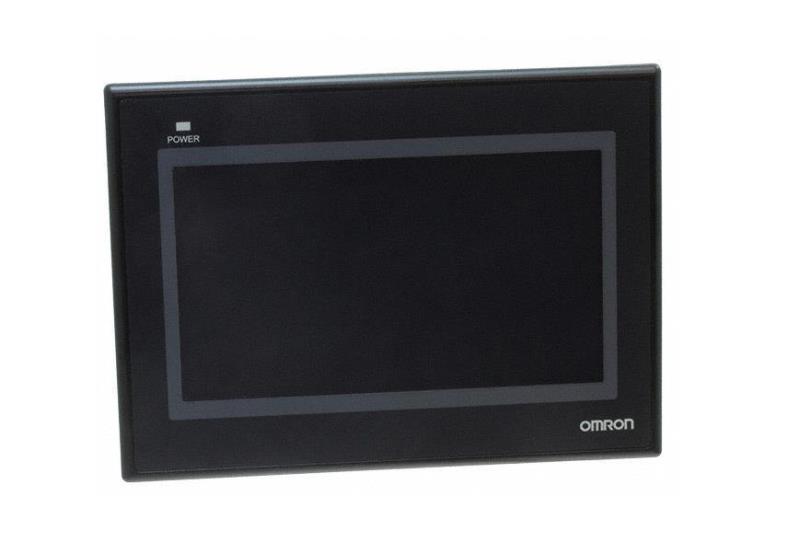

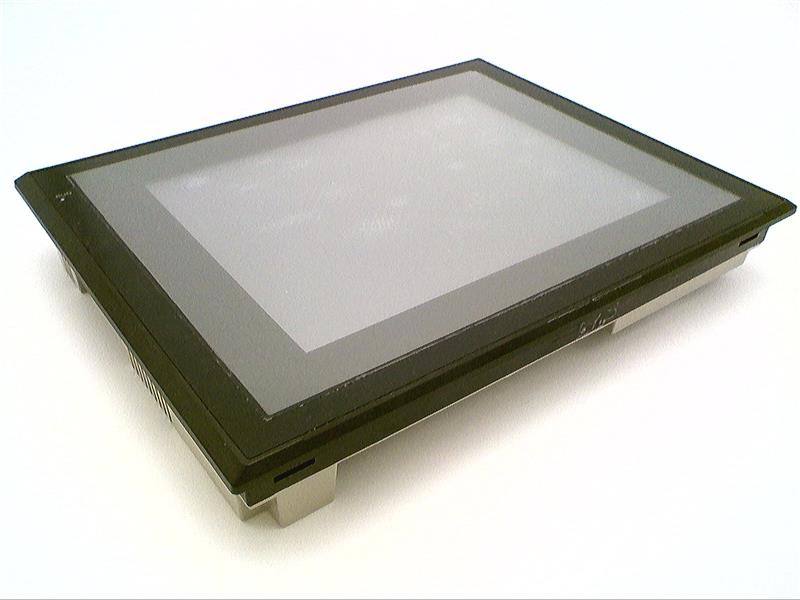

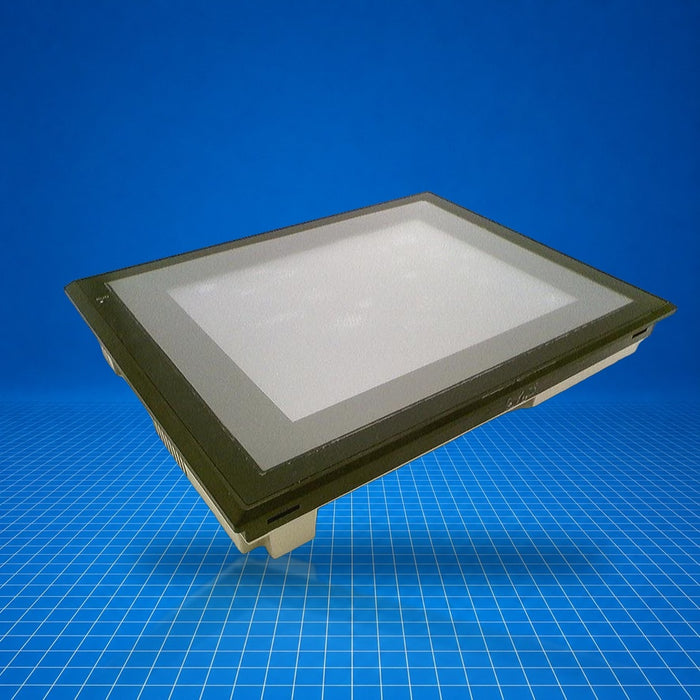

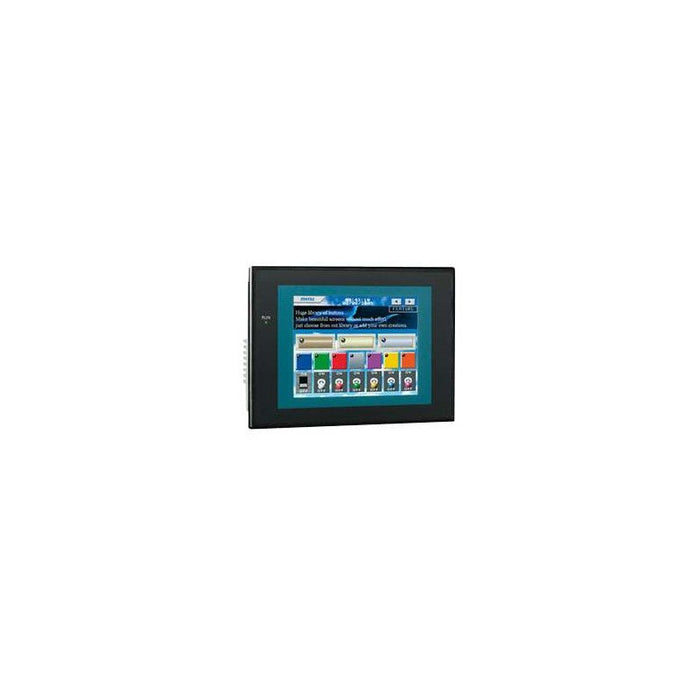

The NS10-TV01B-V2 is a 10.4-inch NS-Series programmable terminal (HMI) manufactured by Omron, offering a 640 × 480-dot TFT color display with LED backlight. It includes an integrated Ethernet port (10/100 Base-T) housed in a black enclosure and is typically used for operator interface tasks in industrial control systems. The device supports image display functions and integration with Omron systems for machine monitoring and control. The part number NS10-TV01B-V2 is referenced twice.
Best Suited For
- Standard operator interface for machine control panels
- Ethernet-connected industrial HMI applications
- Replacement of discontinued NS-Series 10.4-inch terminals
- Integration into Omron-based automation networks
Display size
10.4 inches
Resolution
640 × 480 dots
Ethernet connectivity
Supported
Power consumption (max)
25 W
Technical Specifications
I/O & Electrical
Power supply voltage
24 V DC (20.4-27.6 V DC ±15 %)
Power consumption
25 W max
Communication & Power
Ethernet
10/100 Base-T supported
Physical & Environmental
Display type
10.4-inch TFT color LCD, LED backlight
Case color
Black
Weight
2.27 kg (5.00 lbs)
Display colors
256 colors
Image memory
60 Mbytes
Certifications
CE
CE marking with compliance to EN61131-2 for machinery and EMC directives.
