NX-AD3604 Omron
Original price
$0.00
-
Original price
$629.75
Original price
$629.75
$0.00
-
$629.75
Current price
$629.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

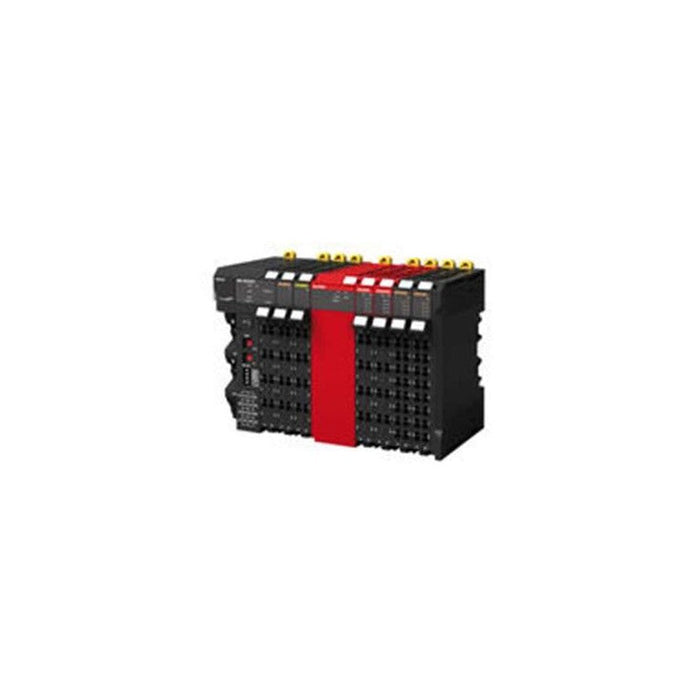

The NX-AD3604 is an Omron NX-series analog input module designed for EtherCAT-connected machine automation systems. It provides four differential voltage input channels with high resolution and selectable I/O refreshing modes. The unit reads analog signals such as sensor voltages and delivers them to an NX CPU or communication control unit. It is typically applied in process monitoring, precision voltage measurement, and feedback loops in factory automation and motion control systems. Part number NX-AD3604.
Best Suited For
- Differential voltage measurements in NX-series EtherCAT networks
- High-accuracy sensor signal acquisition
- Applications requiring selectable synchronous or free-run I/O refreshing
- Machine automation where compact analog input density is required
Channels
4 differential inputs
Resolution
1/30000 (full scale)
Conversion time
10 µs per channel
Overall accuracy (25 °C)
±0.1 % (full scale)
Power consumption
1.35 W max (to CPU unit)
Technical Specifications
I/O & Electrical
Number of channels
4 differential inputs
Input range
-15 000 to 15 000 (scaled)
Resolution
1/30000 (full scale)
Conversion time
10 µs per channel
Overall accuracy at 25 °C
±0.1 % (full scale)
Overall accuracy 0-55 °C
±0.1 % (full scale) (presumed same spec category from lineup summary)
Input method
Differential input
I/O refreshing method
Selectable synchronous or Free-Run refreshing
Input isolation
Between input and NX bus: transformer for power, digital isolator for signal; no isolation between inputs
Input impedance
1 MΩ min.
Communication & Power
Power supply
Supplied via NX bus from CPU or Communication Control Unit
Power consumption
1.35 W max when connected to CPU or Communication Control Unit
Power consumption (if connected to Communications Coupler)
1.10 W max (for reference to similar units)
Physical & Environmental
Dimensions (W×H×D)
12 × 100 × 71 mm
Weight
70 g max
Operating temperature
0 to 55 °C
Storage temperature
-25 to 70 °C
Operating humidity
10 to 95 % (no condensation or icing)
Pollution degree
2 or less (IEC 61010-2-201)
Noise immunity
2 kV on power supply line (IEC 61000-4-4)
Overvoltage category
Category II (IEC 61010-2-201)
Insulation resistance
20 MΩ min between isolated circuits (100 V DC)
Dielectric strength
510 VAC for 1 min between isolated circuits, leakage ≤ 5 mA
