NX-EC0112 Omron

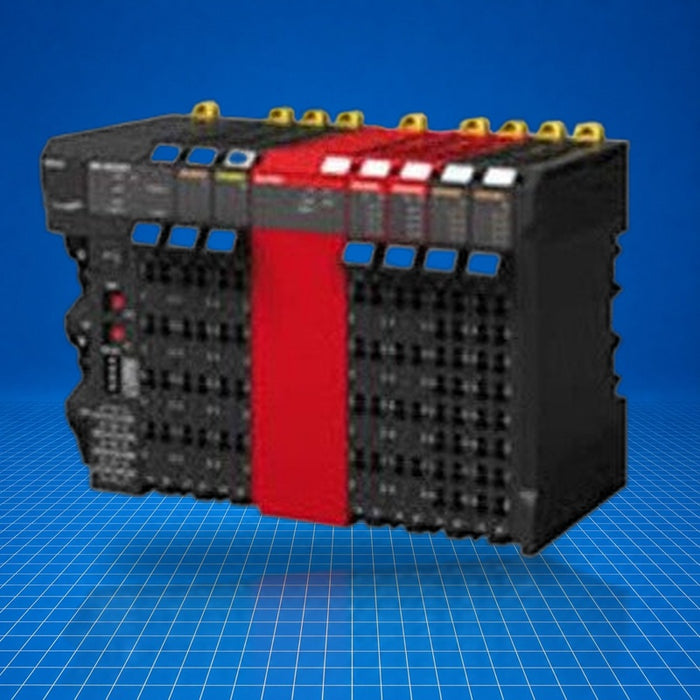

Product image is representative; revision or series may vary.
Contact us to request a specific version.

NX-EC0112 Omron

$0.00 - $1,334.20
$1,334.20
$0.00 - $1,334.20
$1,334.20
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,334.20
3 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The NX-EC0112 is an Omron NX-series Incremental Encoder Input Unit. This module provides one channel of incremental encoder input, interfacing with the NX-series I/O system via the NX bus. It captures quadrature signals (Phases A, B, Z) or pulse and direction signals for position feedback. The unit supports free-run, synchronous, or task-period-prioritized I/O refreshing. Typical applications include machine axis position tracking, motion feedback integration, and EtherCAT-distributed clock synchronization. Part number NX-EC0112.

Best Suited For

  • Single-axis incremental encoder feedback
  • High-speed motion control synchronization
  • EtherCAT-distributed clock systems
  • Compact modular I/O expansions
Channels
1
External inputs
3
Maximum response frequency
500 kHz (Phases A/B)
Input voltage
20.4 to 28.8 V DC

Technical Specifications

I/O & Electrical

Channels
1 channel
External inputs
3 (Phases A, B, Z)
Input form
Voltage input (24 V DC nominal)
Input voltage range
20.4 to 28.8 V DC (+20 %/-15 %)
ON voltage / current
19.6 V DC min. / 3 mA min.
OFF voltage / current
4.0 V DC max. / 1 mA max.
Maximum response frequency
Phases A/B: 500 kHz (×4: 125 kHz); Phase Z: 125 kHz
Isolation method
Photocoupler isolation

Communication & Power

I/O refreshing methods
Free-Run, Synchronous, Task-period-prioritized
I/O power supply method
Supplied from the NX bus

Physical & Environmental

Dimensions (W×H×D)
12 × 100 × 71 mm
Counter range
-2,147,483,648 to 2,147,483,647 pulses
Counter types
Ring counter or linear counter
Counter controls
Gate, reset, preset
Latch functions
Two external input latches, one internal latch
Measurements
Pulse rate and pulse period measurement
Insulation resistance
20 MΩ min. at 100 V DC
Dielectric strength
510 VAC for 1 min, ≤ 5 mA leakage

Certifications

cULusUL508UL 61010-2-201ANSI/ISA 12.12.01EN 61131-2C-Tick/RCMKCNKLR

cULus (UL508, UL 61010-2-201), ANSI/ISA 12.12.01, EU EN 61131-2, C-Tick/RCM, KC Registration, NK, LR.
