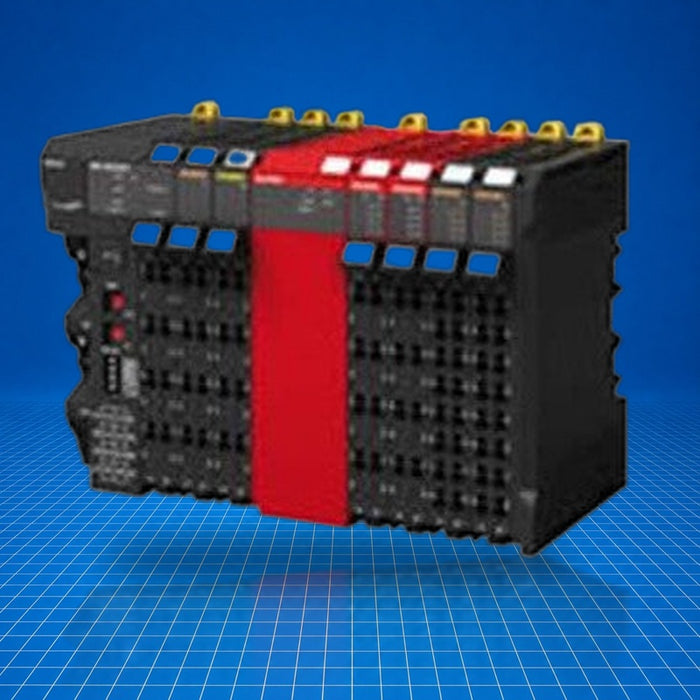

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
NX-EC0122 Omron
Original price
$0.00
-
Original price
$687.50
Original price
$687.50
$0.00
-
$687.50
Current price
$687.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The NX-EC0122 is an Omron NX-series Incremental Encoder Input Unit designed for integration into the Sysmac control platform via EtherCAT. The unit provides a single encoder channel with three external inputs (PNP) and supports pulse, phase-difference, pulse+direction, and up/down pulse input methods. It is used for high-precision motion and position feedback in industrial applications such as servo axis monitoring, indexing machinery, and position control loops. NX-EC0122 offers synchronous and task-prioritized I/O refreshing within distributed clocked control systems.
Best Suited For
- Single-axis encoder feedback in EtherCAT-based motion systems
- Position monitoring in servo indexing applications
- Integration into Sysmac machine controllers requiring PNP logic
- Applications needing high pulse count range and flexible counter functions
Channels
1
External inputs (PNP)
3
Input voltage range
20.4 to 28.8 V DC
Max counter range
-2,147,483,648 to 2,147,483,647 pulses
Response speed
Phase A/B: single-phase 500 kHz
Technical Specifications
I/O & Electrical
Input voltage
20.4 to 28.8 V DC (24 V DC +20%/-15%)
ON voltage / current (encoder)
19.6 V DC min. / 3 mA min.
Input current (encoder)
4.2 mA typical (24 V DC)
Max response frequency
Phases A/B: single-phase 500 kHz (×4: 125 kHz); Phase Z: 125 kHz
External inputs ON voltage / current
15 V DC min. / 3 mA min.
External input current
4.6 mA typical (24 V DC)
External inputs OFF voltage / current
4.0 V DC max. / 1 mA max.
External input response time
ON 1 µs max. / OFF 2 µs max.
Counter range
-2,147,483,648 to 2,147,483,647 pulses
Communication & Power
I/O refreshing method
Free-Run, synchronous I/O, task-period-prioritized
NX Unit power consumption (CPU-connected)
1.30 W max.
NX Unit power consumption (coupler-connected)
0.95 W max.
I/O power supply source
Supplied from NX bus (20.4 to 28.8 V DC)
I/O power terminal capacity (encoder)
IOV/IOG: 0.3 A max. per terminal
I/O power terminal capacity (other)
IOV/IOG: 0.1 A max. per terminal
Physical & Environmental
Dimensions (W×H×D)
12 × 100 × 71 mm
Isolation method
Photocoupler isolation
Insulation resistance
20 MΩ min. at 100 V DC between isolated circuits
Dielectric strength
510 VAC 1 min, ≤5 mA leakage
Weight
70 g max.
Installation orientation
Upright (CPU-connected); any of 6 orientations (coupler-connected); no restrictions
