NX-ECC201 Omron

Name: NX-ECC201 Omron
Brand: Omron
SKU: NX-ECC201
Price: 450.0 USD
Availability: InStock

$450.00 - $599.96

$450.00

$450.00 - $599.96

$450.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

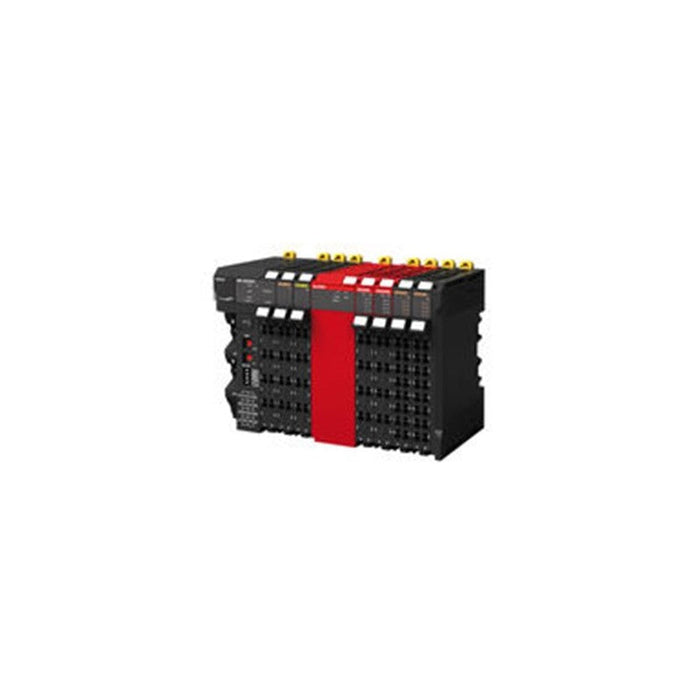

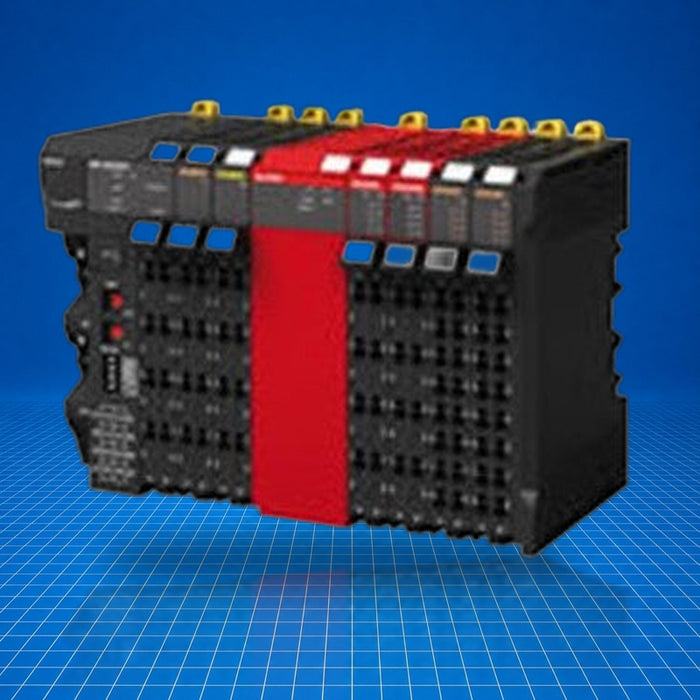

The NX-ECC201 EtherCAT Coupler Unit is part of OMRON's NX-series I/O System. It provides the interface between an EtherCAT master and up to 63 NX-series I/O Units, enabling data exchange via PDO and SDO/mailbox communication. It supplies power to downstream NX Units and handles EtherCAT communication over shielded RJ45 connectors. Mounted in control panels, it is typically used in machine automation systems for rapid, synchronized remote I/O expansion under an EtherCAT architecture.

Best Suited For

Synchronized remote I/O in EtherCAT systems
Machine automation with NX-series controllers
Distributed I/O expansion up to 63 NX Units
Applications requiring sub-microsecond I/O jitter

Connectable NX Units

63 max.

Communications cycle (DC Mode)

250-4,000 µs

Unit power consumption

1.45 W max.

Maximum I/O power supply current

4 A

Dimensions (W×H×D)

46 × 100 × 71 mm

Technical Specifications

I/O & Electrical

Unit power supply voltage

24 V DC (20.4 to 28.8 V DC)

NX Unit power supply capacity

10 W max.

NX Unit power supply efficiency

70 %

I/O power supply voltage

5 to 24 V DC (4.5 to 28.8 V DC)

Maximum I/O power supply current

4 A

Unit power consumption

1.45 W max.

Current consumption from I/O power supply

10 mA max. (for 24 V DC)

Communication & Power

EtherCAT ports

2 × RJ45 (shielded)

USB port

USB 2.0 B-type, up to 5 m

PDO I/O size

Input: 1,024 bytes; Output: 1,024 bytes

Mailbox size

Input: 256 bytes; Output: 256 bytes

I/O jitter performance

1 µs max.

Communications standard

EtherCAT (IEC 61158 Type 12, 100BASE-TX, 100 Mbps)

Physical & Environmental

Operating temperature

0 to 55 °C

Storage temperature

-25 to 70 °C

Humidity

10% to 95% (no condensation/icing)

Altitude

2,000 m max.

Vibration resistance

IEC 60068-2-6, 5-150 Hz, 9.8 m/s²

Shock resistance

IEC 60068-2-27, 147 m/s²

Dimensions

46 × 100 × 71 mm (W×H×D)

Weight

170 g max.

Mounting

Panel mount, upright orientation

Certifications

cULusANSI/ISA 12.12.01EN 61131-2RCMKCNKLR

Standards: cULus (UL 508 / UL61010-2-201), ANSI/ISA 12.12.01, EU EN 61131-2, RCM, KC, NK, LR; meets IEC pollution degree 2, overvoltage category II (IEC 61010-2-201), IEC 61000-4-4 noise immunity (2 kV), EMC immunity Zone B.
