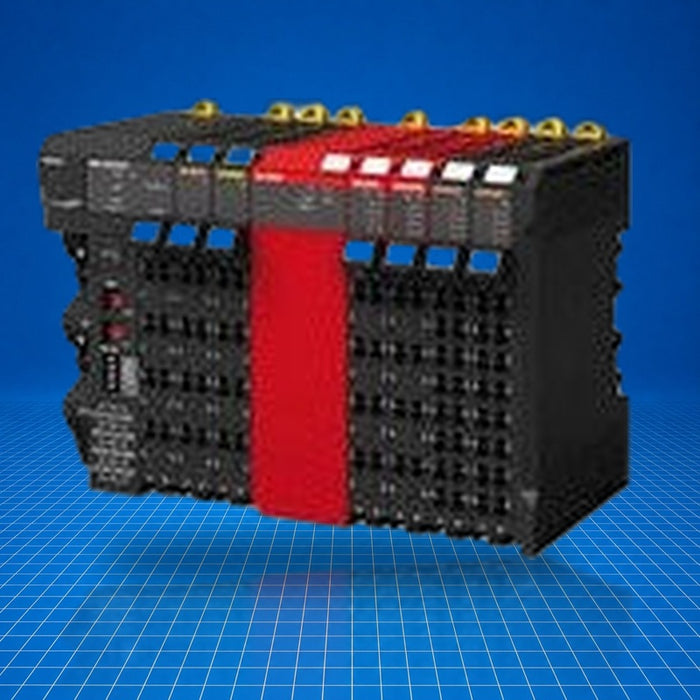

NX-ECC202 Omron
Original price
$450.00
-
Original price
$595.96
Original price
$595.96
$450.00
-
$595.96
Current price
$595.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The NX-ECC202 is an Omron NX-series EtherCAT coupler serving as the network interface between an EtherCAT master and modular I/O units. It supports real-time data exchange with up to 63 NX-I/O modules, and supplies both unit and I/O power. It mounts on DIN rail and includes screwless push-in terminals. Common applications include distributed control in machinery, real-time automation systems, and fieldbus integration for I/O expansion.
Best Suited For
- EtherCAT network I/O expansion
- Real-time distributed I/O applications
- DIN-rail modular I/O architectures
- Industrial machinery control systems
EtherCAT I/O units supported
63 max
Max I/O power current
10 A
Communications cycle
250-4 000 µs
Power consumption
≤ 1.45 W
Dimensions (W×H×D)
46 × 100 × 71 mm
Technical Specifications
I/O & Electrical
Unit power supply voltage
24 V DC (20.4-28.8 V DC)
Unit power consumption
≤ 1.45 W
I/O power supply voltage
5-24 V DC (4.5-28.8 V DC)
Max I/O power supply current
10 A
Communication & Power
Network ports
EtherCAT RJ45 × 2
PDO data size
Input 1 024 bytes max, Output 1 024 bytes max
Mailbox data size
Input 256 bytes, Output 256 bytes
Communication cycle modes
Free-Run, Sync I/O, Timestamp
Physical & Environmental
Mounting
DIN-rail
Ambient operating temperature
0 to 55 °C
Ambient storage temperature
-25 to 70 °C
Weight
170 g max
Certifications
cULusCEKCNKLloyd's
cULus (UL 508 / UL61010-2-201), ANSI/ISA 12.12.01, EN 61131-2, C-Tick (RCM), NK, Lloyd's, KC Registration, EC Directives.
