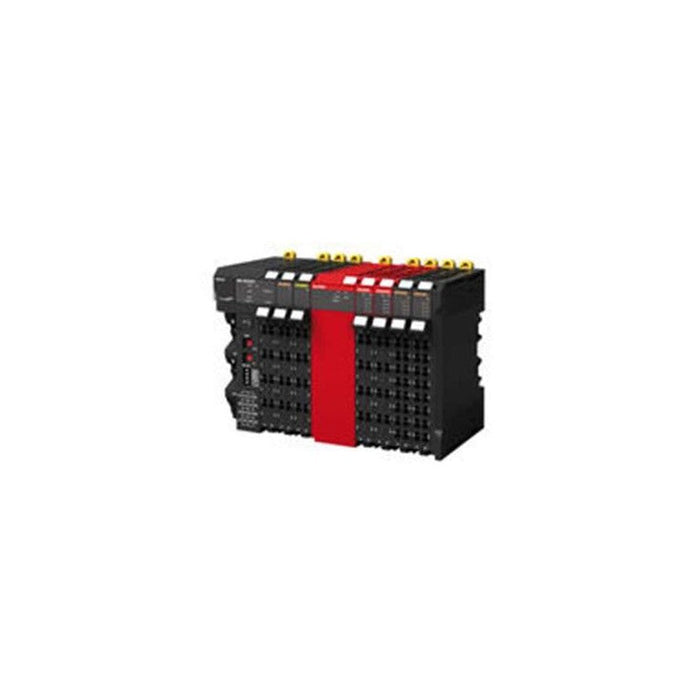

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

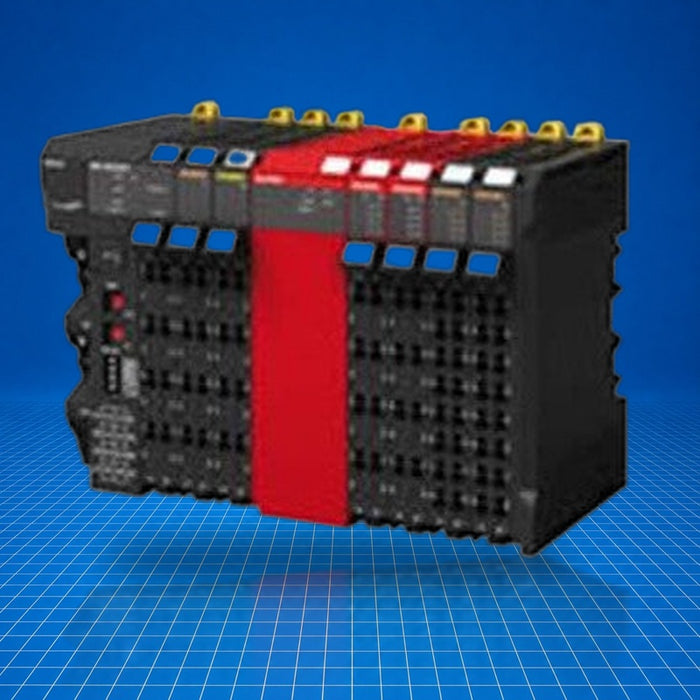

NX-PG0332-5 Omron
Original price
$0.00
-
Original price
$962.50
Original price
$962.50
$0.00
-
$962.50
Current price
$962.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The NX-PG0332-5 is an Omron NX-series Pulse Output Unit designed to generate pulse command signals to stepper or servo drives in open-loop control systems. It features four independent pulse output channels (NPN, line-driver) and connects via two MIL-style connectors. This unit integrates into Omron Machine Automation Controller (MAC) systems via NX bus, enabling positioning, velocity, cam, gear, homing, jogging, and override functions. Typical applications include discrete motion control, indexing, multi-axis synchronization, and machine tool automation.
Best Suited For
- Stepper or servo drives requiring pulse-string control
- Multi-axis positioning synchronization
- Cam and gear motion implementations
- Homing and jog control in NX-series systems
Pulse output channels
4
Maximum pulse speed
4 Mpps
I/O refreshing methods
Synchronous or task-period prioritized
Connector type
MIL (34-terminals × 2)
Input voltage range
20.4 to 28.8 V DC
Technical Specifications
I/O & Electrical
Input voltage
20.4 to 28.8 V DC (24 V DC +20 %/-15 %)
ON voltage / ON current
15 V DC min. / 3 mA min.
Input current
4.6 mA (typical at 24 V DC)
OFF voltage / OFF current
4.0 V DC max. / 1 mA max.
Rated output voltage (external)
24 V DC
Output load voltage range
15 to 28.8 V DC
Residual voltage
1.0 V max.
Maximum load current (external outputs)
30 mA
Leakage current
0.1 mA max.
Communication & Power
I/O refreshing method
Synchronous I/O or task-period prioritized
I/O power supply sourcing
From NX bus (20.4 to 28.8 V DC)
NX unit power consumption (CPU connected)
1.30 W max.
NX unit power consumption (comm. coupler connected)
0.90 W max.
Current from I/O power terminals
20 mA max.
Physical & Environmental
Dimensions (W×H×D)
12 × 100 × 71 mm
Weight
70 g max.
Cable length (max)
3 m
Insulation resistance
20 MΩ min. at 100 V DC
Dielectric strength
510 VAC for 1 min (5 mA leakage max)
