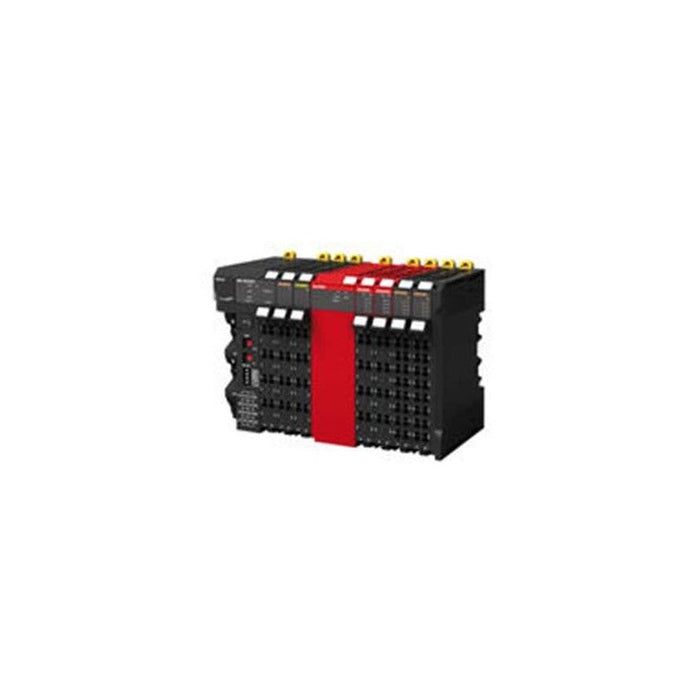

Product image is representative; revision or series may vary.
Contact us to request a specific version.

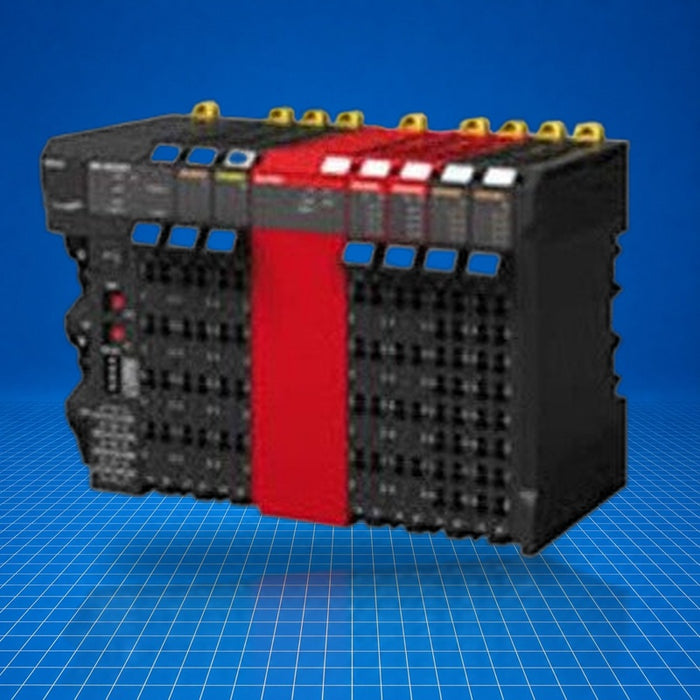

NX-PG0342-5 Omron

Name: NX-PG0342-5 Omron
Brand: Omron
SKU: NX-PG0342-5
Price: 1556.18 USD
Availability: InStock

$1,374.97 - $1,556.18

$1,556.18

$1,374.97 - $1,556.18

$1,556.18

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The NX-PG0342-5 is an Omron NX-series Pulse Output Unit designed to generate pulse-train control signals. It features four independent pulse output channels, using line-driver (RS-422-A equivalent) outputs, and is intended for open-loop motion control of pulse-command servo or stepper drives. It mounts via twin MIL-connectors and integrates with Omron's Sysmac I/O system. Typical applications include positioning control in machine automation setups such as pick-and-place systems, indexing stages, and simple motion sequences.

Best Suited For

Positioning control of stepper or pulse-input servo drives
Machine automation requiring four independent pulse channels
Use with Omron Sysmac NX I/O systems
Panel-mounted motion interface applications

Channels

4

Pulse output speed

4 Mpps

External connector type

MIL connector (34 terminals ×2)

Output form

Line-driver (RS-422-A equivalent)

Input/output per channel

5 inputs/ch, 3 outputs/ch

Technical Specifications

I/O & Electrical

Number of channels

4

External inputs per channel

5

External outputs per channel

3

Pulse output form

Line-driver output (RS-422-A level)

Maximum pulse output speed

4 Mpps

Position control range

-2 147 483 648 to 2 147 483 647 pulses

Communication & Power

I/O refreshing method

Synchronous or task-period prioritized refreshing

Control method

Open-loop control via pulse string output

Physical & Environmental

External connection

MIL connector (34 terminals ×2)

Operating temperature

0 to 55 °C

Ambient humidity

10 % to 95 % (non-condensing)

Vibration resistance

IEC 60068-2-6: 5-8.4 Hz (3.5 mm), 8.4-150 Hz (9.8 m/s²), 100 min/X,Y,Z

Shock resistance

IEC 60068-2-27: 147 m/s², 3× in X,Y,Z

Certifications

Listed under cULus (UL 508 or UL 61010-2-201), ANSI/ISA 12.12.01, EN 61131-2, C-Tick/RCM, KC Registration, and LR.
