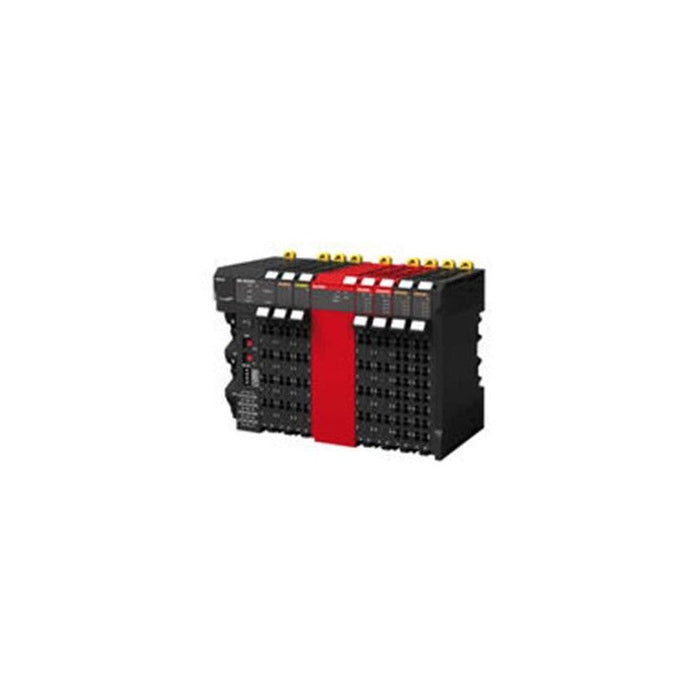

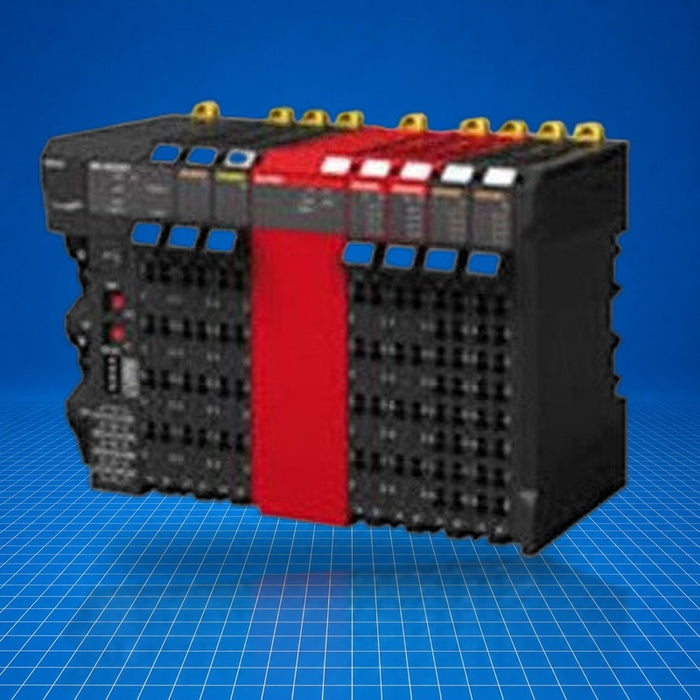

NX-RS1201 Omron
Original price
$1,166.41
-
Original price
$1,375.00
Original price
$1,166.41
$1,166.41
-
$1,375.00
Current price
$1,166.41
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The NX-RS1201 is an Omron NX-series Load Cell Input Unit designed to interface a single load cell with the NX I/O system in machine automation controllers. The unit converts mV/V signals into digital data for weight or force measurement, enabling integration into NX/NJ control platforms via EtherCAT, EtherNet/IP or other NX couplers. It is commonly used in industrial weighing, force sensing, batching, packaging, and material handling applications. NX-RS1201 provides precision measurement and conforms to NX-system integration protocols.
Best Suited For
- Single-channel load cell integration
- Weight/force measurement in batching systems
- Integration into NX-series I/O racks
- Applications requiring mV/V signal conversion under 125 μs refresh
Load cell channels
1
Conversion cycle
125 μs
Input range
-5.0 to 5.0 mV/V
Excitation voltage
5 V DC ± 10 %, 60 mA max
Power consumption
2.05 W (CPU), 1.70 W (coupler)
Technical Specifications
I/O & Electrical
Input range
-5.0 to 5.0 mV/V
Input conversion range
-5.5 to 5.5 mV/V
Load cell excitation voltage
5 V DC ± 10 %, 60 mA max
A/D resolution
24 bits
Conversion cycle
125 μs
Communication & Power
I/O refreshing methods
Free-Run, synchronous, task-period prioritized
Power consumption (connected to CPU Unit)
2.05 W max
Power consumption (connected to Communications Coupler Unit)
1.70 W max
Physical & Environmental
Dimensions (W×H×D)
12 × 100 × 71 mm
Weight
70 g max
Operating temperature
0 to 55 °C
Storage temperature
-25 to 70 °C
Humidity
10 to 95 % RH (no condensation)
Certifications
cULusANSI/ISA 12.12.01EN 61131-2RCMKCNK
cULus Listed to UL 61010-2-201; ANSI/ISA 12.12.01; EN 61131-2; RCM; KC; NK.
