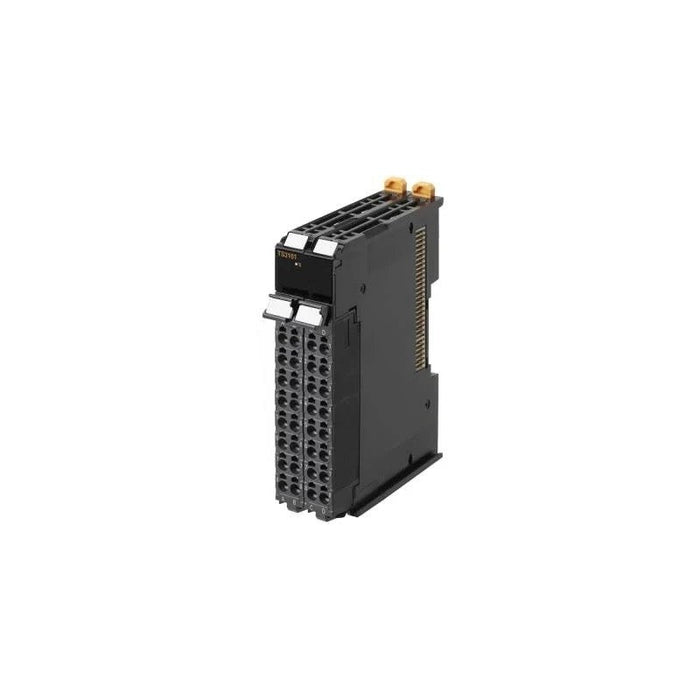

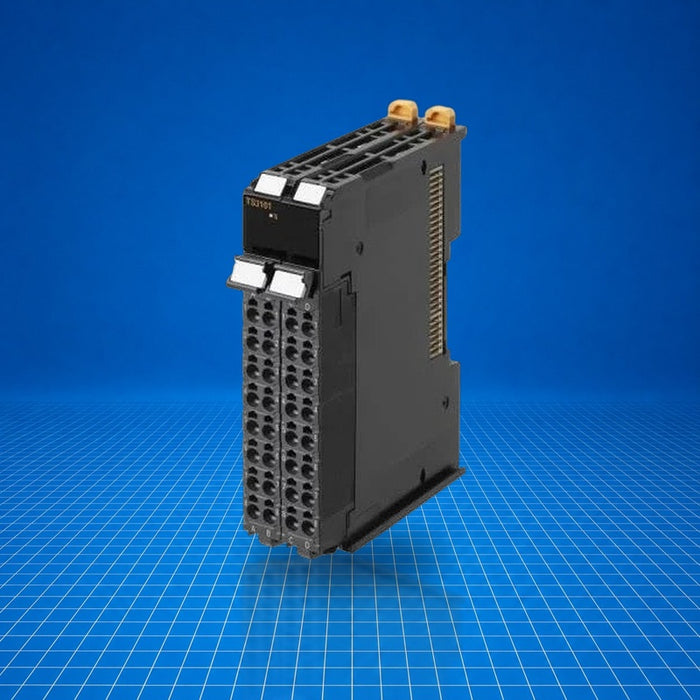

The NX-TC3408 is a four-channel temperature control unit in Omron's NX-TC series of I/O modules for machine automation controllers. It accepts thermocouple or three-wire RTD inputs and provides linear current outputs per channel. The module mounts to the NX I/O bus, enabling multi-loop temperature control and integration via EtherNet/IP or EtherCAT when paired with a compatible CPU or coupler. NX-TC3408 is used in process control, heat treatment systems, and multi-zone thermal applications within industrial automation.
Best Suited For
- Multi-loop temperature control in machine automation
- Systems using thermocouple or 3-wire RTD sensors
- Integration via EtherNet/IP or EtherCAT in NX I/O systems
- Heat treatment or thermal profile control
- Panel-mounted installations in NX series racks
Channels
4
Sensor inputs
Thermocouple & Pt100/JPt100/Pt1000 (3-wire)
Output type
Linear current (0-20 mA, 4-20 mA)
Supply voltage
24 V DC
Power consumption
1.65 W (CPU Unit), 1.25 W (Coupler)
Technical Specifications
I/O & Electrical
Number of channels
4
Sensor input types
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PL II; RTD: Pt100, JPt100, Pt1000 (3-wire)
Resolution (input)
1/10,000
Input conversion range
±20 °C of input range
Input impedance
≥ 20 kΩ
Cold-junction compensation error
±1.2 °C
Output range
0-20 mA, 4-20 mA
Allowable load resistance
≤ 350 Ω or > 350 Ω but ≤ 600 Ω
Communication & Power
Power supply (rated)
24 V DC
Operating load voltage range
15-28.8 V DC
Power consumption
1.65 W (when connected to CPU Unit); 1.25 W (when connected to Communications Coupler Unit)
I/O power supply current consumption
30 mA max
Physical & Environmental
Dimensions
24 mm (W) × 100 mm (H) × 71 mm (D)
Weight
≤ 140 g
Ambient operating temperature
0 to 55 °C
Ambient storage temperature
-25 to 70 °C
Humidity
10 to 95 % (no condensation)
Vibration resistance
5-8.4 Hz, 3.5 mm amplitude; 8.4-150 Hz, 9.8 m/s², 100 min each axis
Shock resistance
147 m/s², 3 pulses each axis
Certifications
cULusANSI/ISA 12.12.01EN 61131-2RCMKCUKCA
Conforms to cULus (UL 61010-2-201), ANSI/ISA 12.12.01, EN 61131-2, RCM, KC, NK, LR, BV, UKCA.
