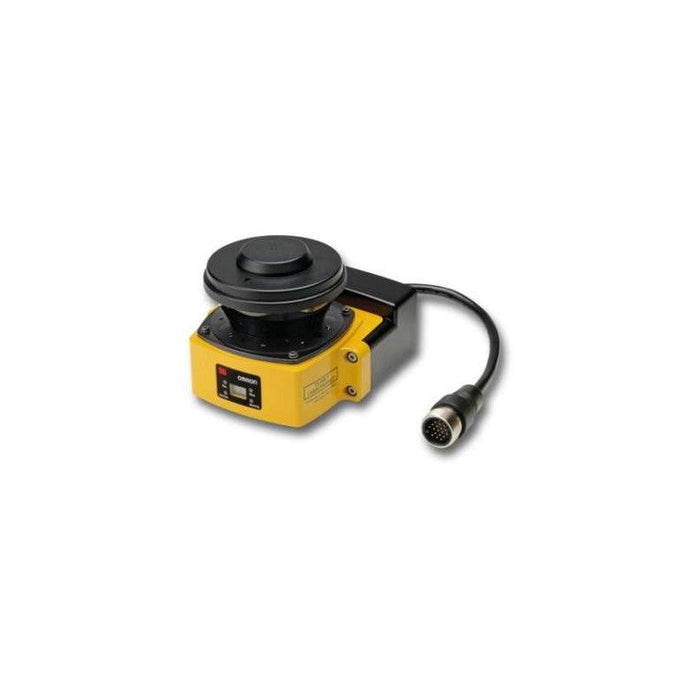

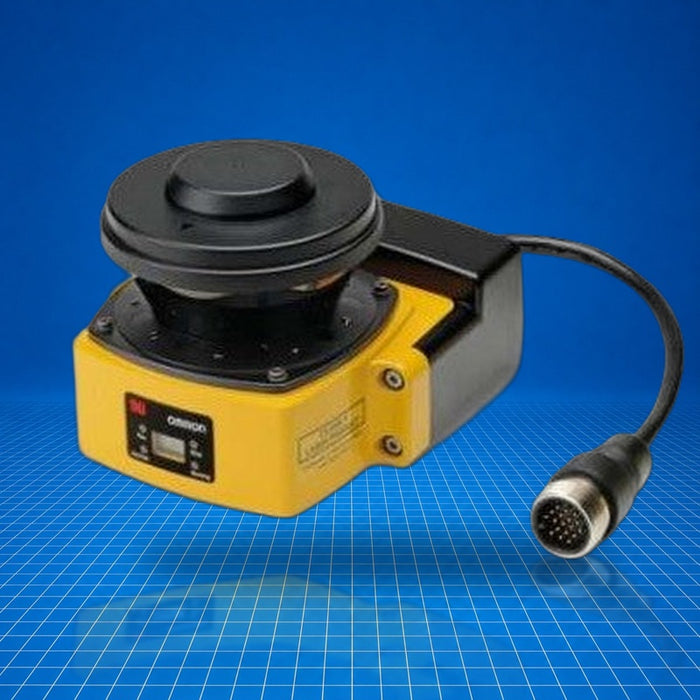

OS32C-BP-4M Omron
Product image is representative; revision or series may vary.
Contact us to request a specific version.

OS32C-BP-4M Omron

$0.00 - $5,625.00
$5,625.00
$0.00 - $5,625.00
$5,625.00
Surplus - Tested (With Warranty)
Get Pricing ~5 mins
New / Open-Box Surplus
Need a Specific Revision?
$5,625.00
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The OS32C-BP-4M is a Type 3 safety laser scanner within Omron's OS32C family. It operates as a safety zone scanner providing up to a 4 m safety zone and a 15 m warning zone, suitable for perimeter intrusion detection or automated mobile robot (AMR) navigation. Featuring dual OSSD safety outputs and Ethernet connectivity, it integrates into control systems for zone-based presence detection with configurable zones. OS32C-BP-4M is part number OS32C-BP-4M and is designed for industrial safety applications demanding zone monitoring and safety category compliance.

Best Suited For

  • Perimeter intrusion detection
  • AMR navigation obstacle monitoring
  • Safety zone protection around machinery
  • Retrofit into existing safety I/O systems
Safety range
4 m
Warning zone
15 m
Safety outputs (OSSD)
PNP × 2, 250 mA max.
Power consumption
5 W max.
Protection rating
IP65

Technical Specifications

I/O & Electrical

Input voltage
24 V DC ±25 % (ripple-p-p 2.5 V max.)
OSSD outputs
PNP × 2, load current 250 mA max., residual voltage 2 V max.
Auxiliary output
NPN/PNP × 1, 100 mA max., residual voltage 2 V max.
Warning output
NPN/PNP × 1, 100 mA max., residual voltage 2 V max.

Communication & Power

Communication
Ethernet (M12, 4-pin connector)
Power connection
18-pin mini-connector (pigtail)
Power consumption
Normal: 5 W max.; Standby: 3.75 W

Physical & Environmental

Dimensions (W × H × D)
133.0 × 104.5 × 142.7 mm
Weight
1.3 kg
Ambient temperature
Operation: -10 °C to 50 °C; Storage: -25 °C to 70 °C
Humidity
Up to 95 % RH, non-condensing
Enclosure rating
IP65

Certifications

PLd Cat 3SIL 2Class 1 LaserIP65

Safety standards: PLd / Category 3 (ISO 13849-1), SIL 2 (IEC 61508); Laser Class 1 (IEC 60825-1); Approvals include EN IEC 61496-1/-3, EN 61508 SIL2, UL 508, UL 1998, CAN/CSA C22.2 No. 14, No. 0.8, TÜV Rheinland.
