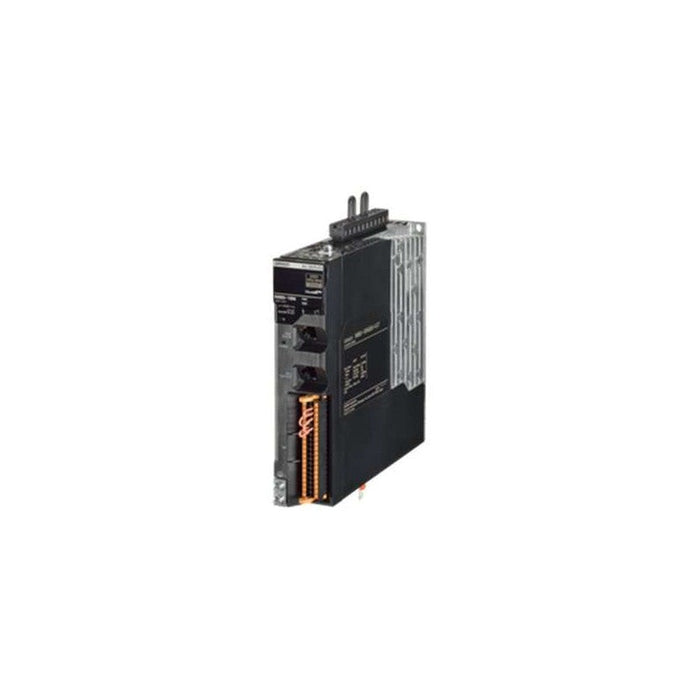

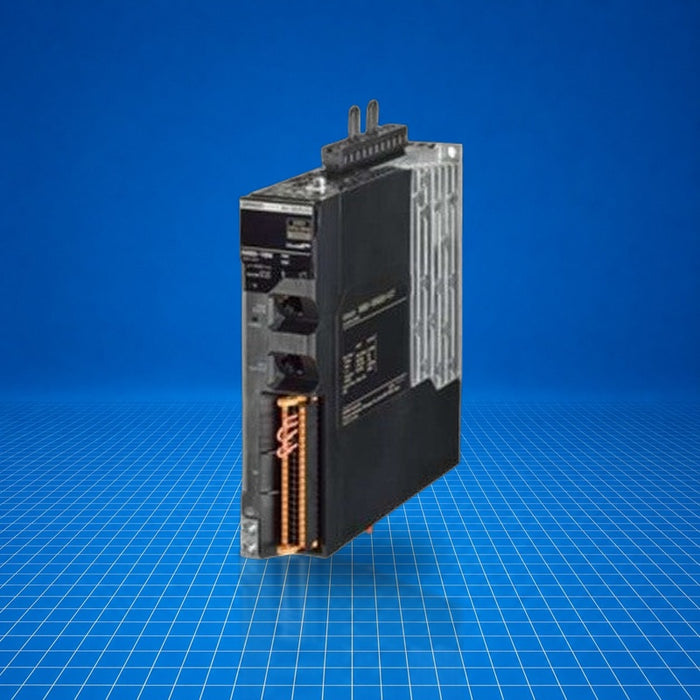

R88D-1SN01H-ECT Omron
Original price
$519.80
-
Original price
$1,100.00
Original price
$519.80
$519.80
-
$1,100.00
Current price
$519.80
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The R88D-1SN01H-ECT is a 100 W AC servo drive in Omron's 1S-series with built-in EtherCAT communication. It interfaces between control systems and compatible 1S-series 3,000 r/min servomotors (e.g., R88M-1M05030T / 1M10030T) to provide position, velocity, and torque control. Intended for integration into factory automation systems requiring closed-loop servo control via EtherCAT, it is deployed in machine tooling, pick-and-place, and general motion control applications.
Best Suited For
- EtherCAT-based motion control networks
- Closed-loop positioning with 1S-series servomotors
- Applications requiring 100 W servo drive capacity
- Machine tool axis control
Power rating
100 W
Communication interface
EtherCAT
Input voltage
200-240 VAC
Output rated current
0.8 A (rms)
Weight
1.2 kg
Technical Specifications
I/O & Electrical
Main circuit input voltage
200 to 240 VAC (170 to 252 V) single-phase and 3-phase
Control circuit voltage
24 V DC (21.6 to 26.4 V)
Control circuit current consumption
600 mA
Rated output current
0.8 A (rms)
Maximum output current
3.1 A (rms)
Communication & Power
Command interface
EtherCAT
Power rating
100 W
Heat dissipation
15.7/15.3 W (main circuit); control circuit 11 W
Physical & Environmental
Operating ambient temperature
0 to 55 °C, 90 % max (no condensation)
Storage temperature
-20 to 65 °C, 90 % max (no condensation)
Operating altitude
max. 1,000 m
Vibration resistance
10 to 60 Hz, ≤ 5.88 m/s² (not continuous at resonance)
Insulation resistance
≥ 0.5 MΩ (at 500 V DC)
Dielectric strength
1,500 VAC, 1 min between power and PE
Weight
1.2 kg
