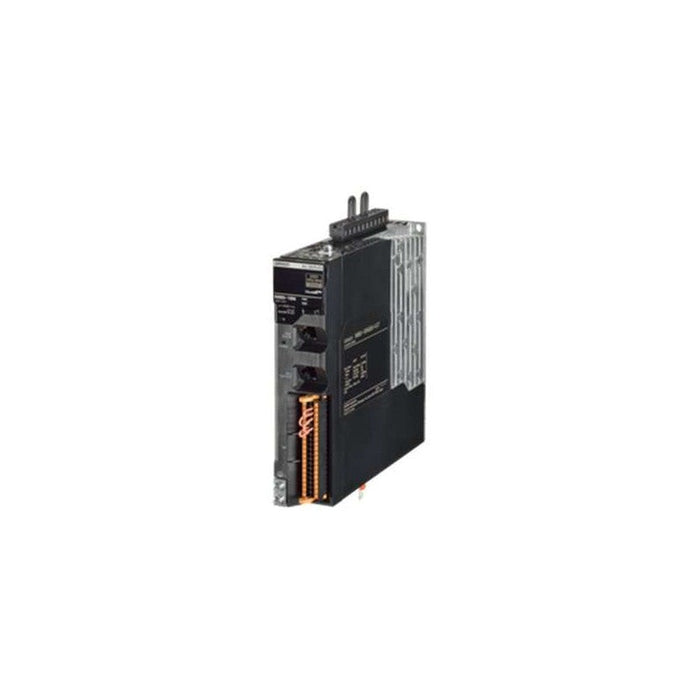

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

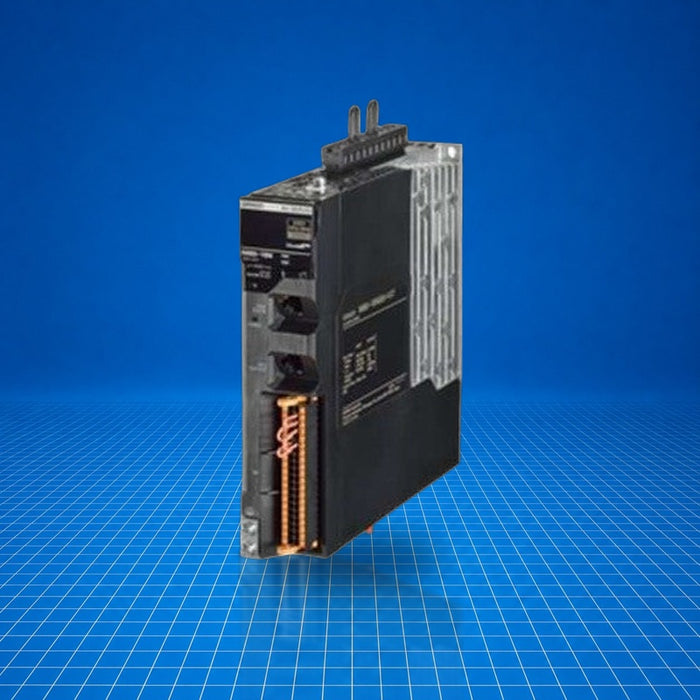

R88D-1SN08H-ECT Omron
Original price
$1,100.00
-
Original price
$1,237.50
Original price
$1,237.50
$1,100.00
-
$1,237.50
Current price
$1,237.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The R88D-1SN08H-ECT is an Omron 1S-series AC servo drive featuring built-in EtherCAT communication. The drive supports single-phase and three-phase 200 to 240 VAC input (170 to 252 V), delivering up to 750 W output power (for the 1SN08H-ECT model). It integrates into machine control systems to regulate servo motors with precise EtherCAT-based command and feedback, suitable for mid-range industrial automation such as packaging, labeling, and pick-and-place assemblies. R88D-1SN08H-ECT is optimized for applications that require tight motion synchronization and standard industrial environmental tolerance.
Best Suited For
- EtherCAT-based motion control systems
- Mid-power servo drive applications (approx. 750 W)
- Integration with 3,000 r/min R88M-1 series servomotors
- Industrial environments requiring standard ambient tolerance
Output power
750 W
Input voltage
200-240 VAC (170-252 V), single- and three-phase
Control supply
24 V DC (21.6-26.4 V)
Built-in communication
EtherCAT
Operating ambient
0 to 55 °C, 90 % RH max (no condensation)
Technical Specifications
I/O & Electrical
Main circuit input voltage
200-240 VAC (170-252 V), single- or three-phase
Control circuit voltage
24 V DC (21.6-26.4 V)
Rated current (single-phase, 240 VAC)
7.3 A (rms)
Rated current (three-phase, 240 VAC)
4.0 A (rms)
Output rated current
4.6 A (rms)
Output maximum current
16.9 A (rms)
Heat dissipation, main circuit
40/39.7 W
Control circuit consumption
13.2 W
Communication & Power
Command interface
EtherCAT
Physical & Environmental
Operating ambient temperature
0 to 55 °C
Operating humidity
90 % RH max (no condensation)
Storage temperature
-20 to 65 °C
Storage humidity
90 % RH max (no condensation)
Operating altitude
Up to 1,000 m
Vibration resistance
10-60 Hz at ≤5.88 m/s² (non-resonant)
Weight
2.0 kg
