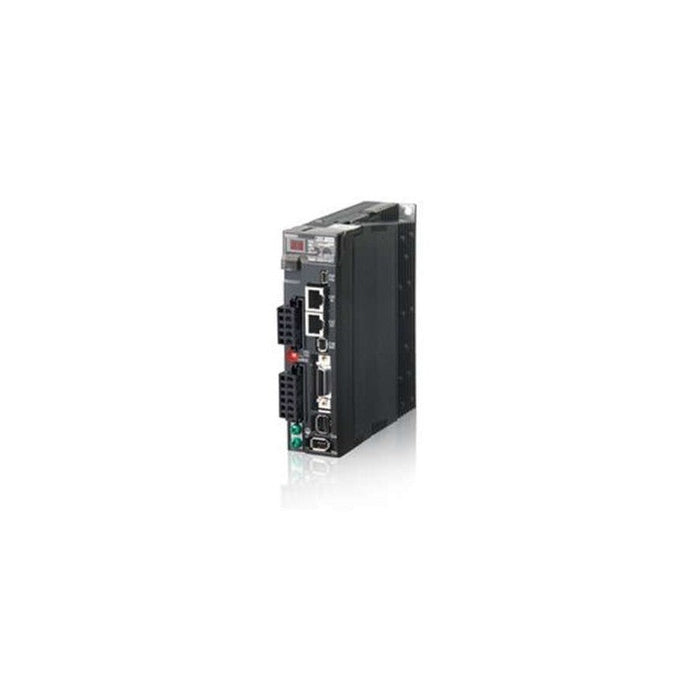

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

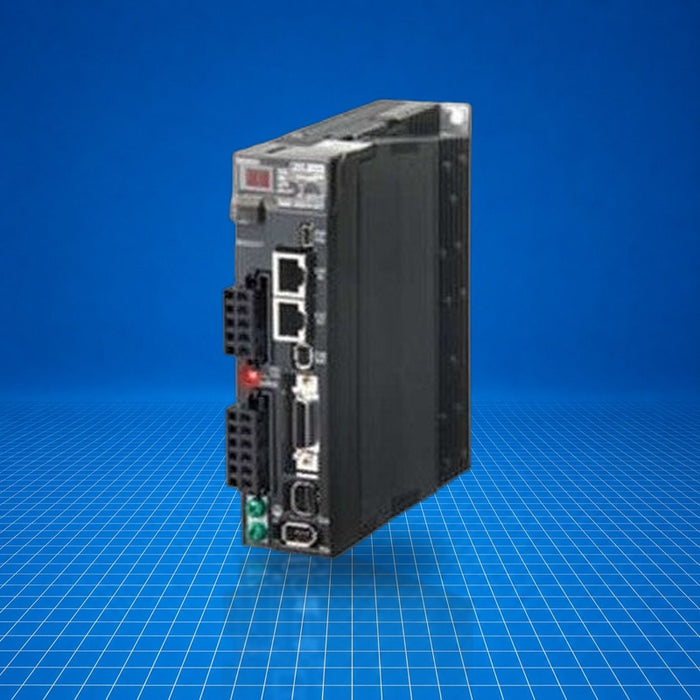

R88D-KN01H-ECT Omron
Original price
$559.96
-
Original price
$825.00
Original price
$559.96
$559.96
-
$825.00
Current price
$559.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The R88D-KN01H-ECT is an Omron G5-Series AC servo drive with integrated EtherCAT communication. It interfaces directly with NJ-series controllers via IEC 61158/Type 12 protocols and supports CiA-402 drive profiles including position, velocity, torque, homing, and latch (touch-probe) modes. The R88D-KN01H-ECT accepts single-phase or three-phase 200-240 VAC input and delivers continuous output current suitable for 100 W class servomotors. The drive is typically used in mid-range precision motion control applications within packaging, labeling, and machine tool systems.
Best Suited For
- EtherCAT-based motion control networks using NJ controllers
- Mid-power (100 W) servomotor control
- Compact panel-mounted drive applications
- Industrial machinery requiring CiA-402 compliant control modes
Power class
100 W
Input voltage
200-240 VAC (single- or three-phase, 170-264 V), 50/60 Hz
Continuous output current (rms)
1.2 A
Communication
EtherCAT (IEC 61158 Type 12, CiA-402)
Heat dissipation
14.3 W (single-phase) / 13.7 W (three-phase)
Technical Specifications
I/O & Electrical
Input voltage
200-240 VAC (single-phase or three-phase, 170-264 V), 50/60 Hz
Rated current
1.6 A (single-phase) / 0.9 A (three-phase)
Continuous output current (rms)
1.2 A
Heat dissipation (main circuit)
14.3 W (single-phase) / 13.7 W (three-phase)
Control circuit heat dissipation
4 W
Communication & Power
Communication standard
EtherCAT (IEC 61158 Type 12, CiA-402)
Supported control modes
Cyclic synchronous position, velocity, torque; profile position; homing; touch-probe; torque limit
Connectors
RJ45 × 2 (shielded)
LED indicators
Link/Activity IN, Link/Activity OUT, RUN, ERR
Physical & Environmental
Ambient operating temperature
0 to 55 °C, 85 % RH max (no condensation)
Storage temperature
-20 to 65 °C, 85 % RH max (no condensation)
Vibration resistance
10 to 60 Hz, ≤ 5.88 m/s² (not at resonance)
Insulation resistance
≥ 0.5 MΩ (at 500 VDC between power terminals and FG)
Dielectric strength
1 500 VAC for 1 min (between power and FG, 50/60 Hz)
Mounting
Panel-mounted (built-in panel protective structure)
Weight
Approx. 0.8 kg
