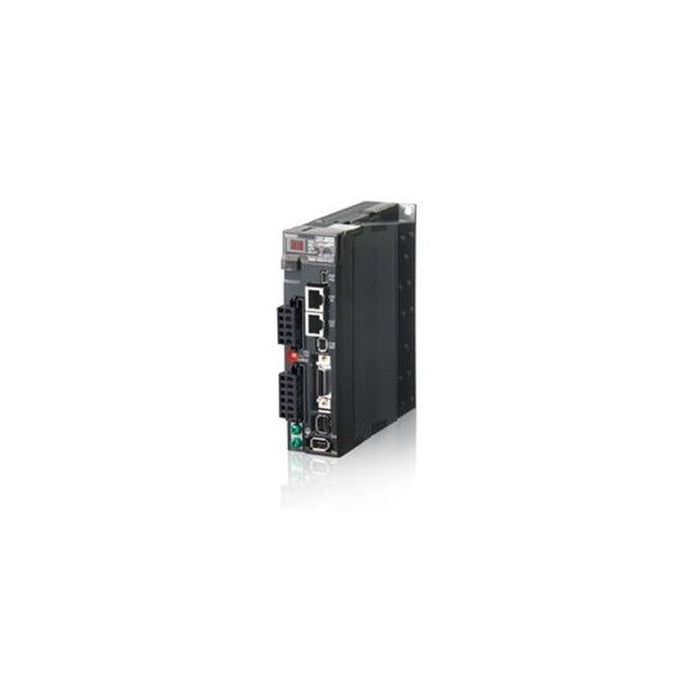

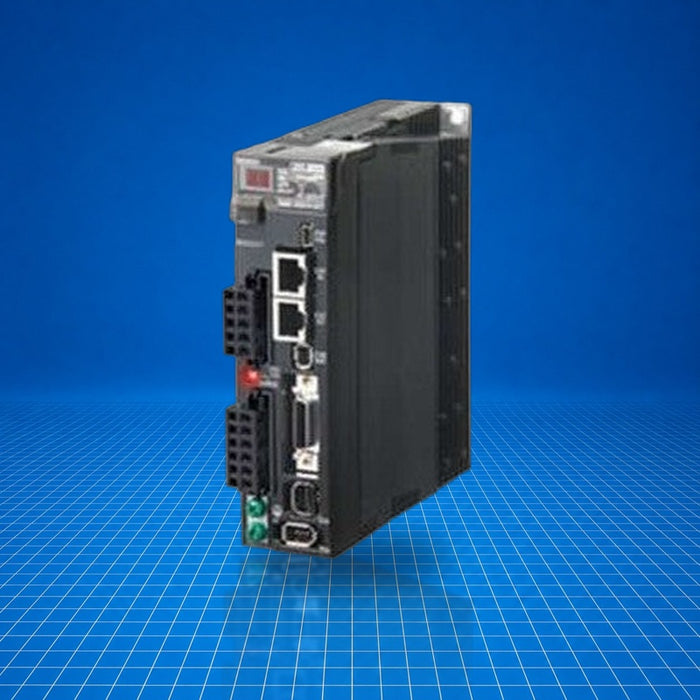

R88D-KN02H-ML2 Omron

Name: R88D-KN02H-ML2 Omron
Brand: Omron
SKU: R88D-KN02H-ML2
Price: 1362.48 USD
Availability: InStock

$0.00 - $1,362.48

$1,362.48

$0.00 - $1,362.48

$1,362.48

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The R88D-KN02H-ML2 is an Omron G5-series AC servo driver featuring built-in MECHATROLINK-II communications. Designed to control 200 W R88M-series servomotors, this device handles single- or three-phase 200-240 VAC supply (170-264 V, 50/60 Hz) with a continuous output current of 1.6 A rms. It integrates into industrial motion control systems for tasks requiring precise motor control, such as packaging, semiconductor handling, and CNC machinery. The R88D-KN02H-ML2 interfaces via MECHATROLINK-II, enabling synchronization within machine control networks without external communication modules.

Best Suited For

Medium-power motion control applications (200 W motors)
Integration into MECHATROLINK-II networked systems
Single- or three-phase 200-240 VAC power environments
Panel-mount servo drive installations

Motor capacity

200 W

Continuous output current (rms)

1.6 A

Supply voltage

200-240 VAC (170-264 V), 50/60 Hz

Power consumption (heat)

23 W / 19 W

Ambient operating temperature

0 to +55 °C

Technical Specifications

I/O & Electrical

Continuous output current (rms)

1.6 A

Power supply voltage

200 to 240 VAC (170 to 264 V), 50/60 Hz

Rated current

2.4 A (single-phase) / 1.3 A (three-phase)

Main circuit capacity

0.5 kVA

Heat value (main circuit)

23 W (single-phase) / 19 W (three-phase)

Control circuit heat

4 W

Communication & Power

Communications protocol

Built-in MECHATROLINK-II

Physical & Environmental

Ambient operating temperature

0 to +55 °C

Storage temperature

-20 to +65 °C

Humidity (operating/storage)

85% max., no condensation

Vibration resistance

10 to 60 Hz, ≤ 5.88 m/s²

Insulation resistance

≥ 0.5 MΩ (500 VDC)

Dielectric strength

1,500 VAC for 1 min to FG

Protective structure

Panel-built

Certifications

EN55011EN61000-6-2IEC61800-3EN61800-5-1EN ISO 13849-1 PL c,dEN61508 SIL2UL508CCSA C22.2 No.14KC

Complies with EMC: EN55011, EN61000-6-2, IEC61800-3; Low-voltage directive: EN61800-5-1; Functional safety: EN954-1 (Cat. 3), EN ISO 13849-1 (PL c,d), EN61508 (SIL 2), EN62061 (SIL 2), EN61800-5-2 (STO), IEC61326-3-1 (SIL 2); UL508C; CSA C22.2 No.14; KC certified.
