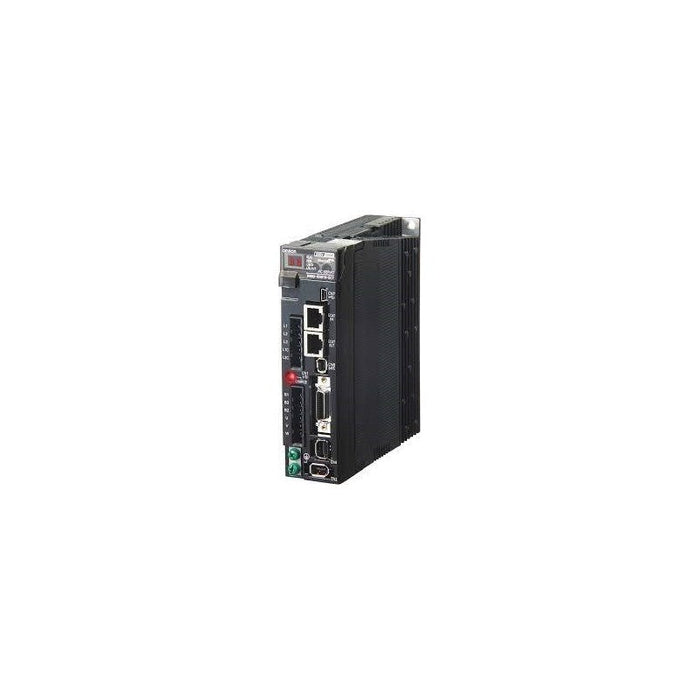

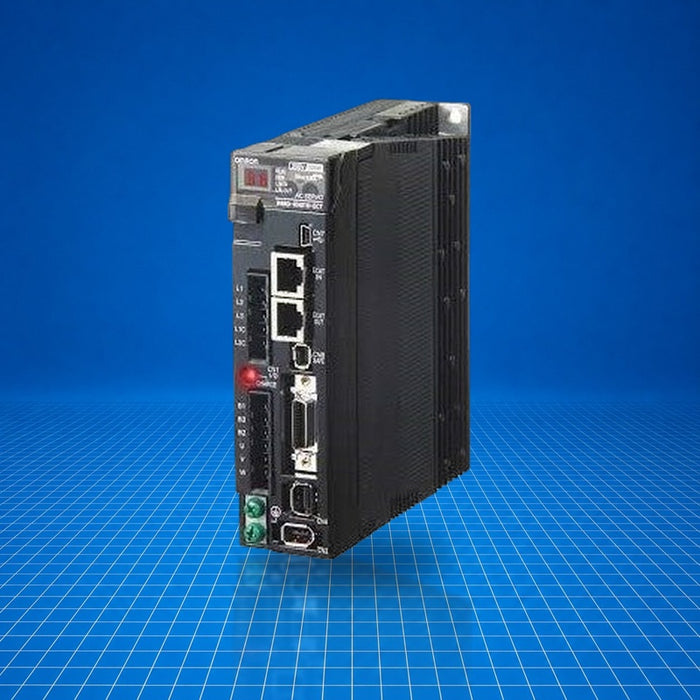

R88D-KN04H-ECT-L Omron

Name: R88D-KN04H-ECT-L Omron
Brand: Omron
SKU: R88D-KN04H-ECT-L
Price: 2737.8 USD
Availability: InStock

$962.47 - $2,737.80

$2,737.80

$962.47 - $2,737.80

$2,737.80

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Omron R88D-KN04H-ECT-L is a G5-series AC linear servo drive with built-in EtherCAT communications, rated for 400 W linear motor applications. It interfaces directly via EtherCAT and provides precise motion control by driving compatible R88L-EC linear motor coil units. Typical use cases include fully integrated, compact motion axes in automated assembly, pick-and-place systems, and high-precision material handling.

Best Suited For

EtherCAT-based motion control systems
Linear motor axes requiring 400 W drive capacity
Wall-mounted compact servo installations
Applications with single- or three-phase 200-240 VAC supply

Power rating

400 W

Input voltage

200 to 240 VAC (single- or three-phase)

Continuous output current

2.6 A (rms)

Main circuit inrush

- (not specified in official)

Mounting

Wall mount

Technical Specifications

I/O & Electrical

Input voltage

200 to 240 VAC (single- or three-phase)

Power supply capacity (main)

0.9 kVA

Rated output current (rms)

2.6 Arms

Control circuit voltage

200 to 240 VAC (single-phase)

Heat value (main/control)

33 W / 4 W

Communication & Power

Communications

EtherCAT, IEC 61158 Type 12, IEC 61800-7 CiA 402

EtherCAT physical layer

100BASE-TX over shielded twisted-pair, RJ45 × 2

Process data features

PDO mapping, CoE mailbox, Distributed clock (250 µs-4 ms), LEDs (Link, Run, Err)

Physical & Environmental

Operating temperature/humidity

0 to 55 °C, 85 % max (no condensation)

Storage temperature/humidity

-20 to 65 °C, 85 % max (no condensation)

Vibration resistance

10-60 Hz, ≤ 5.88 m/s²

Dielectric strength

1,500 VAC, 1 min, supply to FG

Insulation resistance

≥ 0.5 MΩ at 500 VDC between power/FG

Certifications

EMC (EN 55011)Low Voltage (EN 61800-5-1)PL c/d (EN ISO 13849-1)SIL 2UL 508CCSA C22.2 No.14

Complies with EN 55011, EN 61000-6-2, EN 61800-3 (EMC); EN 61800-5-1 (Low Voltage); safety: EN 954-1 Cat 3, EN ISO 13849-1 Cat 3 (PL c, d), EN 61508 SIL 2, EN 62061 SIL 2, EN 61800-5-2 (STO), UL 508C, CSA C22.2 No.14, IEC 61326-3-1 (SIL 2).
