R88D-KN04H-ML2 Omron
Product image is representative; revision or series may vary.
Contact us to request a specific version.

R88D-KN04H-ML2 Omron

$825.00 - $2,497.50
$2,497.50
$825.00 - $2,497.50
$2,497.50
Surplus - Tested (With Warranty)
Need a Specific Revision?
$2,497.50
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$825.00
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

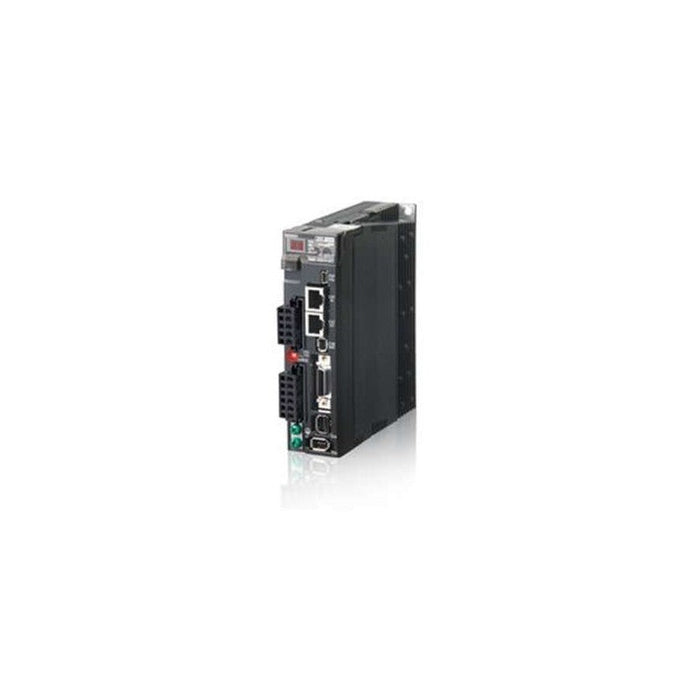

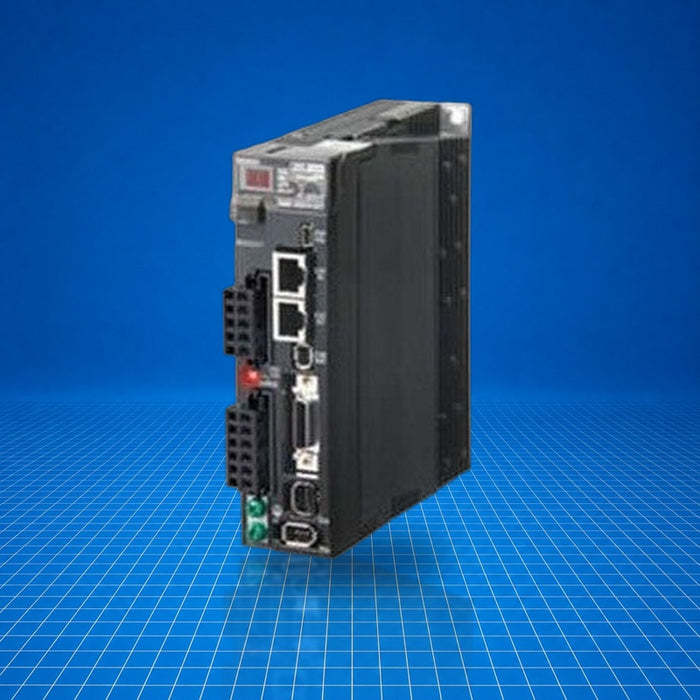

The R88D-KN04H-ML2 is an Omron G5-series AC servo drive featuring built-in MECHATROLINK-II communication. Designed for 400 W servomotor control, it supports single-phase or three-phase 200-240 VAC input and is used to regulate motion in compact industrial automation systems. Typical deployment includes machine tool axes, light assembly robots, or packaging equipment where precise motion control is required without separate communication modules. The part number R88D-KN04H-ML2 identifies both the drive's platform and its communication protocol within the G5 family.

Best Suited For

  • G5-series 400 W servomotor control
  • Compact machine axes requiring MECHATROLINK-II
  • Single-phase or three-phase 200-240 VAC installations
  • Panel-mounted low-power motion applications
Power input
200-240 VAC (single- or three-phase)
Continuous output current
2.6 A rms
Power capacity
0.9 kVA
Heat value (rated)
33 W / 24 W
Ambient operating temperature
0 to +55 °C, 85 % max

Technical Specifications

I/O & Electrical

Input voltage
200 to 240 VAC (single-phase or three-phase, 170 to 264 V), 50/60 Hz
Rated current
4.1 A / 2.4 A (single-phase / three-phase)
Continuous output current (rms)
2.6 A
Power supply capacity
0.9 kVA
Heat dissipation (rated)
33 W / 24 W

Communication & Power

Communication protocol
MECHATROLINK-II (built-in)

Physical & Environmental

Ambient operating temperature
0 to +55 °C, 85 % max (no condensation)
Storage temperature
-20 to +65 °C, 85 % max (no condensation)
Vibration resistance
10-60 Hz, ≤5.88 m/s² (avoid resonance)
Insulation resistance
≥0.5 MΩ (500 VDC) between power terminals and FG
Dielectric strength
1,500 VAC, 1 min between power and FG
Protective structure
Built-into panel

Certifications

EMC (EN55011)EN61800-5-1EN ISO 13849-1 PL c,dEN61508 SIL2UL508CCSA C22.2 No.14KC

Complies with EMC (EN55011, EN61000-6-2, IEC61800-3), Low Voltage (EN61800-5-1), Machinery safety (EN954-1 Cat.3, EN ISO 13849-1 PL c,d, EN61508 SIL2, EN62061 SIL2, EN61800-5-2 STO), IEC61326-3-1 SIL2, UL508C, CSA C22.2 No.14, Korean KC certified.
