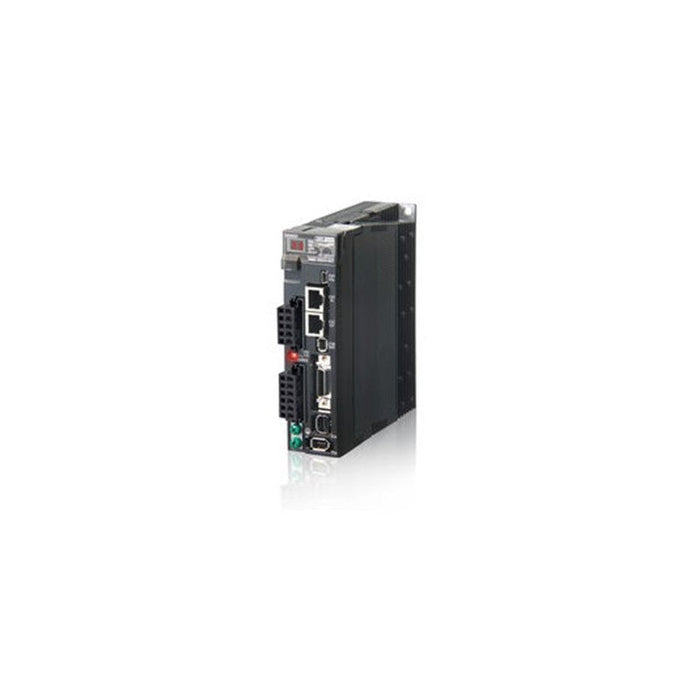

Product image is representative; revision or series may vary.
Contact us to request a specific version.

R88D-KT150F Omron

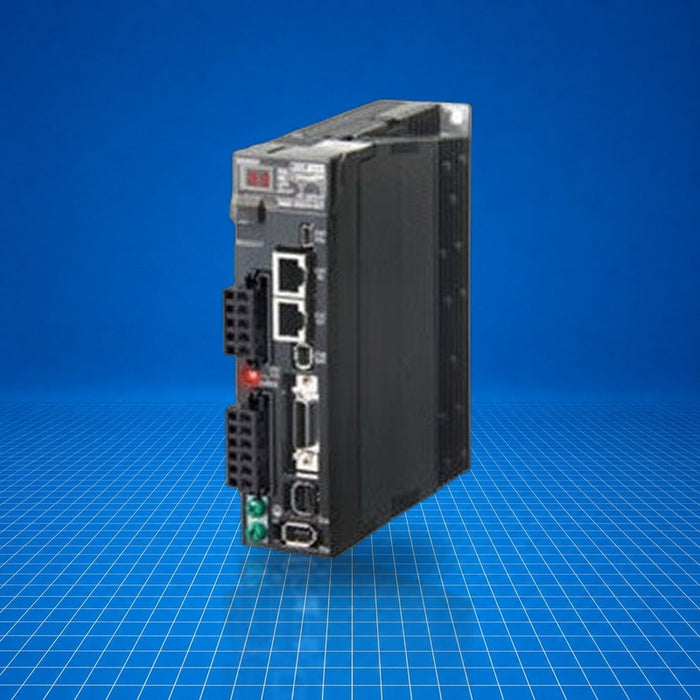

Name: R88D-KT150F Omron
Brand: Omron
SKU: R88D-KT150F
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Omron R88D-KT150F is a member of the G5-series R88D-KT analog/pulse-input AC servo drives. It accepts three-phase 380-480 VAC power and provides servo amplification up to 15 kW, serving as the power and control interface for compatible R88M-series servomotors. Its role in a control system is to accurately drive and control high-power servo motors via analog or pulse inputs. Typical industrial uses include large-scale CNC machinery, injection molding presses, and heavy automated assembly lines. Part number R88D-KT150F handles power and motor matching for demanding servo applications.

Best Suited For

High-power CNC machine servo control
Injection molding press axis control
Heavy automated assembly line motion
Direct drive of large servomotor systems

Power supply

Three-phase 380-480 VAC, 50/60 Hz

Continuous output current (rms)

33.4 A

Max motor capacity

15 kW

Heat dissipation (main)

590 W

Weight

≈21.0 kg

Technical Specifications

I/O & Electrical

Continuous output current (rms)

33.4 A

Maximum applicable motor capacity

15 kW

Applicable servo motors

R88M-series models (e.g. K11K015C, K15K015C)

Communication & Power

Main power supply voltage

Three-phase 380-480 VAC (323-528 V), 50/60 Hz

Power supply capacity

22.0 kVA

Rated current

29.0 A

Control circuit voltage

24 V DC (20.4-27.6 V)

Physical & Environmental

Weight

≈21.0 kg

Operating ambient temperature

0 to 55 °C, up to 85 % RH (no condensation)

Storage temperature

-20 to 65 °C, up to 85 % RH (no condensation)

Vibration resistance

10-60 Hz, ≤5.88 m/s² (non-resonant)

Insulation resistance

≥0.5 MΩ at 500 V DC between power/FG

Dielectric strength

1,500 VAC 1 min between power/FG

Protective structure

Built into panel (panel-mount enclosure)

Certifications

EN55011EN61000-6-2IEC61800-3EN954-1 Cat. 3ISO 13849-1 PLc,dEN61508 SIL2EN62061 SIL2UL508CCSA C22.2 No. 14

Meets EMC standards EN55011, EN61000-6-2, IEC61800-3; Low-voltage standard EN61800-5-1; Machinery safety standards EN954-1 Cat. 3, EN ISO 13849-1 PLc,d, EN61508 SIL2, EN62061 SIL2, EN61800-5-2 (STO), IEC61326-3-1 SIL2; UL508C; CSA C22.2 No. 14.
