R88M-G40030H-S2 Omron
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

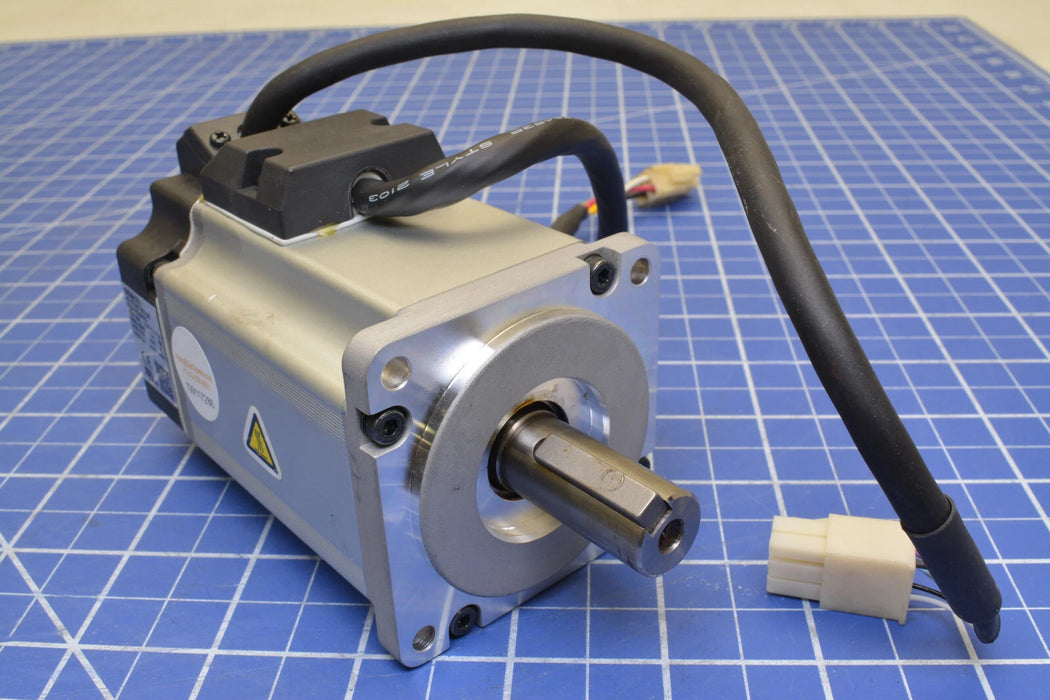

The Omron R88M-G40030H-S2 is a G-Series cylindrical AC servo motor designed for accurate, responsive motion control in industrial automation equipment. It delivers a rated output of 400 W, operates on a 200–240 VAC servo system, and provides a rated speed of 3,000 RPM with approximately 1.3 N·m of rated torque.
This model features an incremental encoder, a straight shaft with key and tapped end, and a compact low-inertia design suited for positioning, indexing, packaging, assembly, and material-handling applications. The motor does not include a holding brake.
The R88M-G40030H-S2 is compatible with the Omron R7D-BP04H SmartStep 2 servo drive and selected Omron G-Series servo drives.
Key Specifications
- Manufacturer: Omron
- Series: G-Series / SmartStep 2
- Product type: AC servo motor
- Rated output: 400 W
- Rated voltage: 200–240 VAC
- Rated speed: 3,000 RPM
- Rated torque: Approximately 1.3 N·m
- Encoder: Incremental
- Motor design: Cylindrical, low inertia
- Shaft: Keyed shaft with tapped end
- Holding brake: No
- Approximate weight: 1.2 kg
- Compatible drive: Omron R7D-BP04H
- Model number: R88M-G40030H-S2
