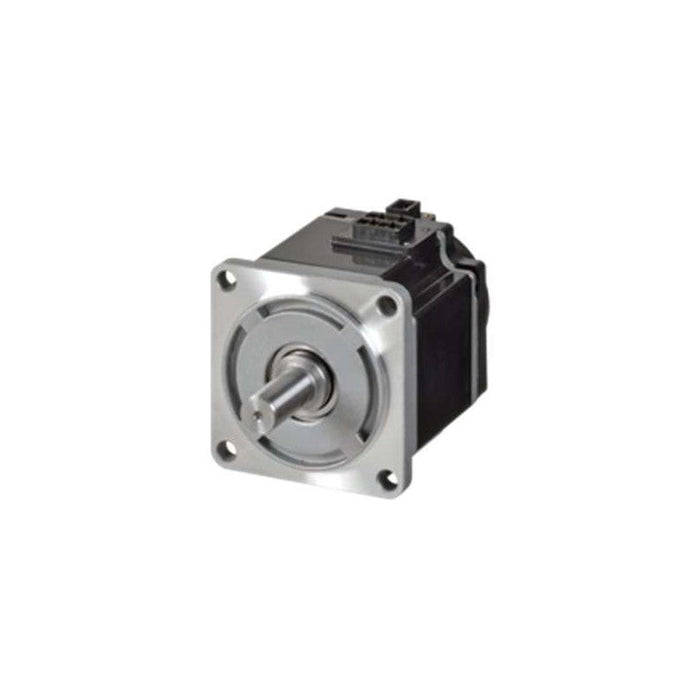

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

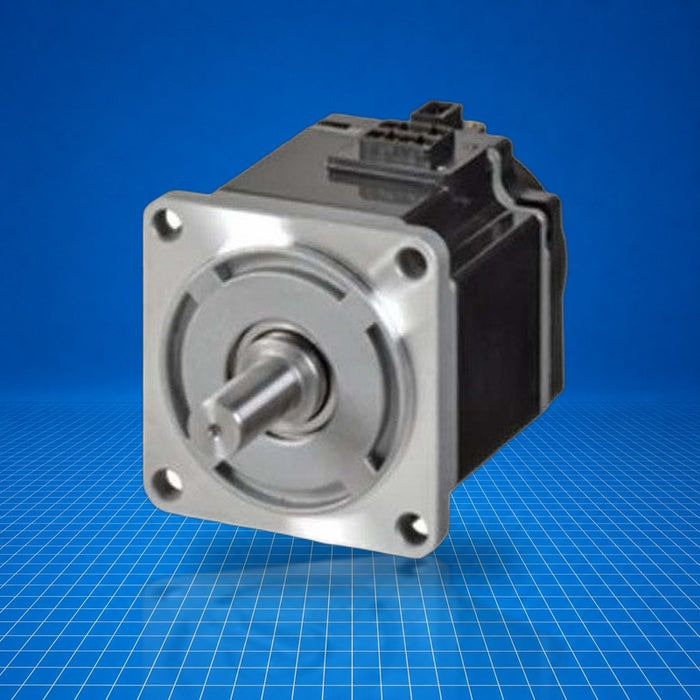

R88M-1L3K030C-BS2 Omron
Original price
$3,225.11
-
Original price
$4,471.00
Original price
$4,471.00
$3,225.11
-
$4,471.00
Current price
$4,471.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The R88M-1L3K030C-BS2 is an Omron AC servomotor in the 1S-series, rated 3 kW, 400 VAC input, and includes an integrated shaft-end with key and tap plus a brake. As part of Omron's battery-free absolute multi-turn encoder family, it provides position feedback without battery maintenance. It interfaces with 1S-series EtherCAT servo drives in motion control architectures. Typical uses include medium-power servo applications such as packaging, assembly machines, material handling systems, and robotics.
Best Suited For
- Medium-power motion control (3 kW) with brake requirement
- Applications needing battery-free absolute multi-turn encoder
- Integration with 1S-series EtherCAT servo drives
- Machines requiring shaft with key and tap for secure coupling
Rated output
3 kW
Input voltage
400 VAC
Brake
Yes
Encoder
Battery-free absolute multi-turn (23-bit)
Shaft type
With key and tap
Technical Specifications
Physical & Environmental
Ambient temperature (operating)
0 to 55 °C, 90% max., no condensation
Ambient temperature (storage)
-20 to 65 °C, 90% max., no condensation
Altitude
Up to 1,000 m
Vibration resistance
10 to 60 Hz, ≤5.88 m/s²
Insulation resistance
≥0.5 MΩ at 500 V DC (between power/power-supply terminals and PE)
Dielectric strength
Specified per AC servo general spec (see drive)
