R88M-1M75030T-S2 Omron
Original price
$825.00
-
Original price
$2,969.98
Original price
$825.00
$825.00
-
$2,969.98
Current price
$825.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

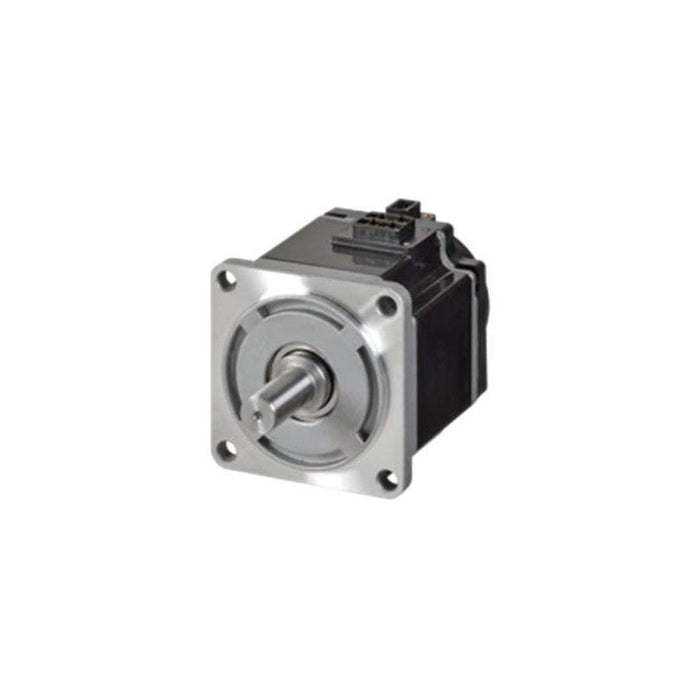

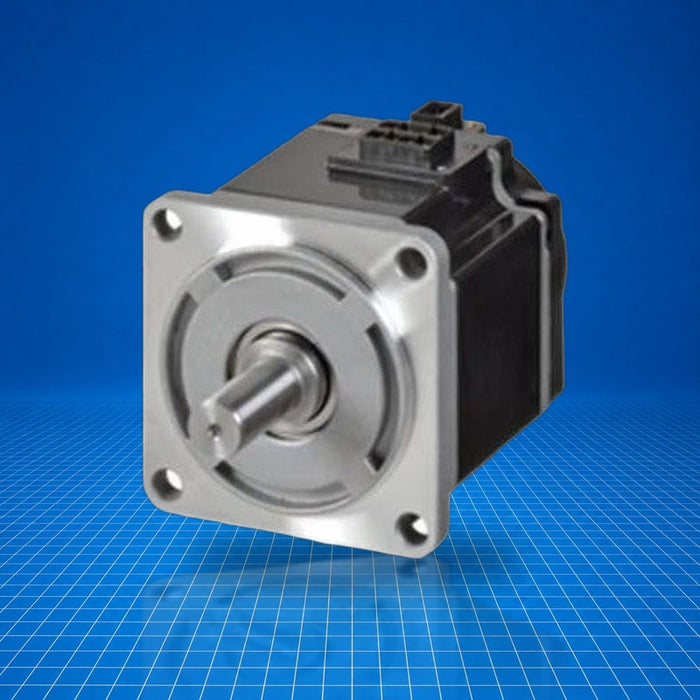

The R88M-1M75030T-S2 is an Omron 1S-series AC servo motor, rated at 750 W, 3000 rpm, for 200 VAC single-/three-phase systems. It incorporates a batteryless absolute encoder and is supplied without brake, but features shaft key and tap. It integrates into EtherCAT-based motion systems, providing precise torque and speed control in manufacturing, packaging, indexing, and general automation contexts. The R88M-1M75030T-S2 is part of Omron's R88M-1M75030T family.
Best Suited For
- EtherCAT-based servo drive systems
- Mid-power motion control (≈750 W)
- High-precision indexing or positioning
- Industrial automation machines requiring absolute feedback
- OEM systems requiring standard shaft mounting
Rated power
750 W
Rated torque
2.39 N·m
Rated speed
3000 r/min
Supply voltage
200 VAC (single-/three-phase)
Encoder type
Batteryless absolute (23-bit ABS)
Technical Specifications
I/O & Electrical
Rated output
750 W
Rated torque
2.39 N·m
Rated speed
3000 r/min
Maximum speed
6000 r/min (motor spec context)
Momentary max torque
8.4 N·m
Rated current (motor)
4.6 A (rms)
Communication & Power
Supply voltage and phase
~200 VAC single-/three-phase
Encoder feedback
Batteryless 23-bit absolute encoder
Physical & Environmental
Shaft
Straight with key and tap
Operating ambient temperature
0 to 55 °C
Storage ambient temperature
-20 to 65 °C
Operating humidity
Up to 90 %, non-condensing
Storage humidity
Up to 90 %, non-condensing
Vibration resistance
10-60 Hz, ≤ 5.88 m/s²
