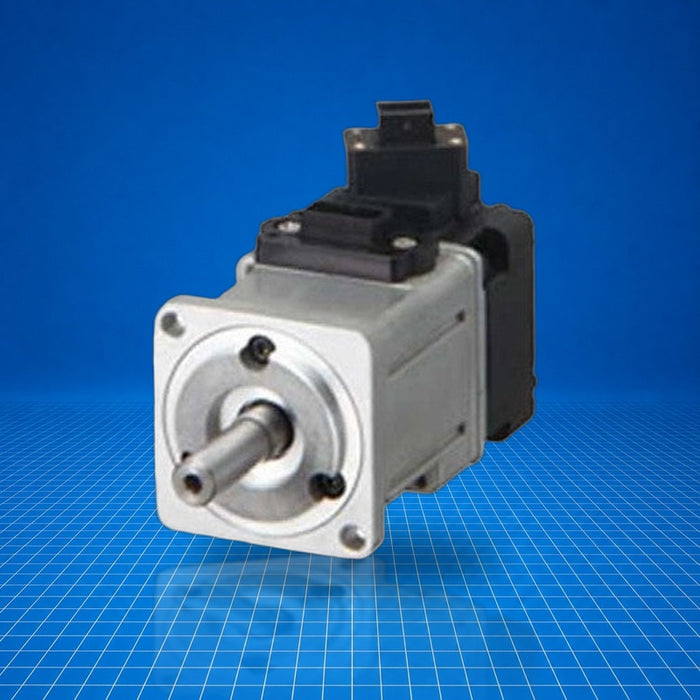

R88M-K05030H-S2 Omron
Original price
$0.00
-
Original price
$722.15
Original price
$722.15
$0.00
-
$722.15
Current price
$722.15
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

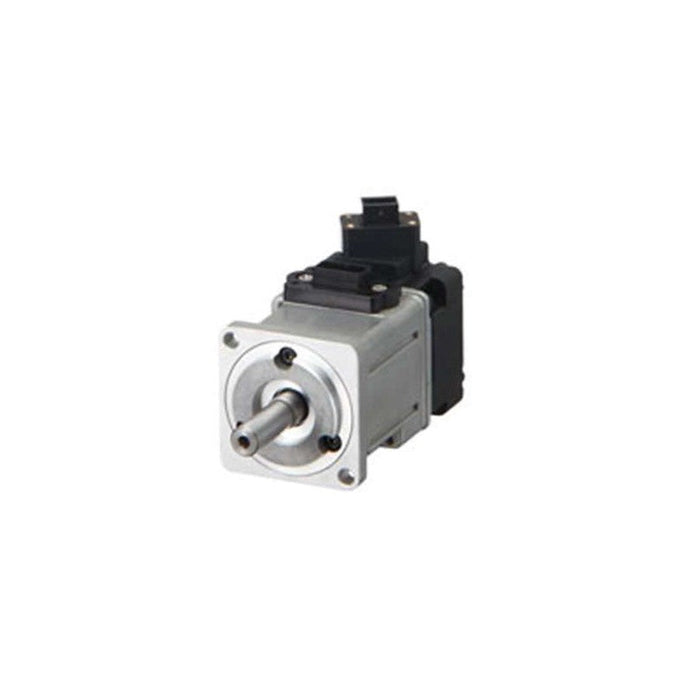

The R88M-K05030H-S2 is a 50 W, 3 000 r/min AC servomotor in Omron's G5-series (R88M-K family) intended for precise motion control in automation systems. Equipped with an incremental (INC) encoder and a straight shaft featuring key and tap, the unit integrates into servo drive loops to provide feedback and torque control. Typical installations include compact pick-and-place machines, rotary indexing tables, and light-duty positioning axes. R88M-K05030H-S2 supports 200 V input and is delivered without an integrated brake, offering controlled speed and position accuracy in industrial motion applications.
Best Suited For
- Light-duty positioning axes
- Rotary indexing mechanisms
- Compact pick-and-place operations
- Feedback-controlled servo systems
Rated output
50 W
Rated speed
3 000 r/min
Encoder
Incremental (INC)
Shaft
Straight with key and tap (S2)
Technical Specifications
I/O & Electrical
Rated output
50 W
Rated speed
3 000 r/min
Rated torque
0.16 N · m
Momentary max torque
0.48 N · m
Rated current (rms)
1.1 A
Momentary max current (0-p)
4.7 A
Communication & Power
Rated rotation speed
3 000 r/min
Momentary max rotation speed
6 000 r/min
Torque constant
0.11 N · m/A ±10%
Physical & Environmental
Rotor inertia (without brake)
0.025 × 10⁻⁴ kg · m²
Applicable load inertia
Up to 30× rotor inertia
Encoder type
Incremental
Key/tap shaft
Yes (S2)
