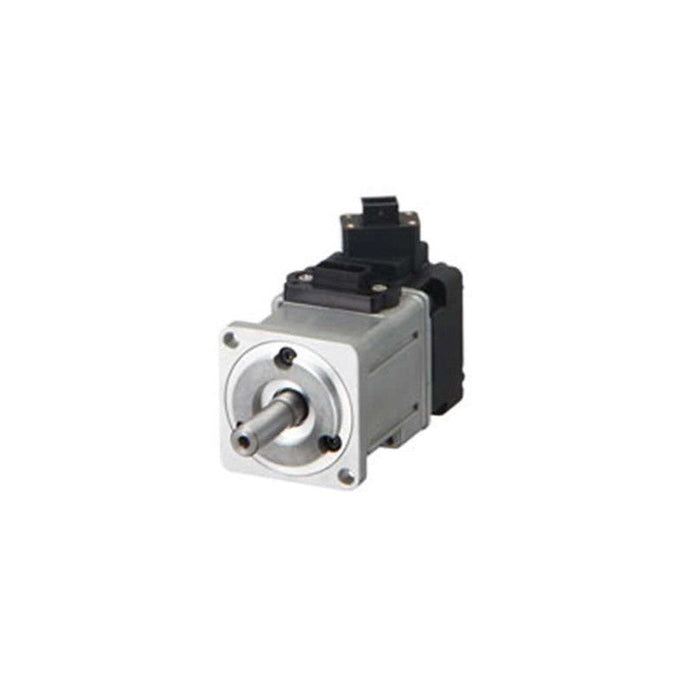

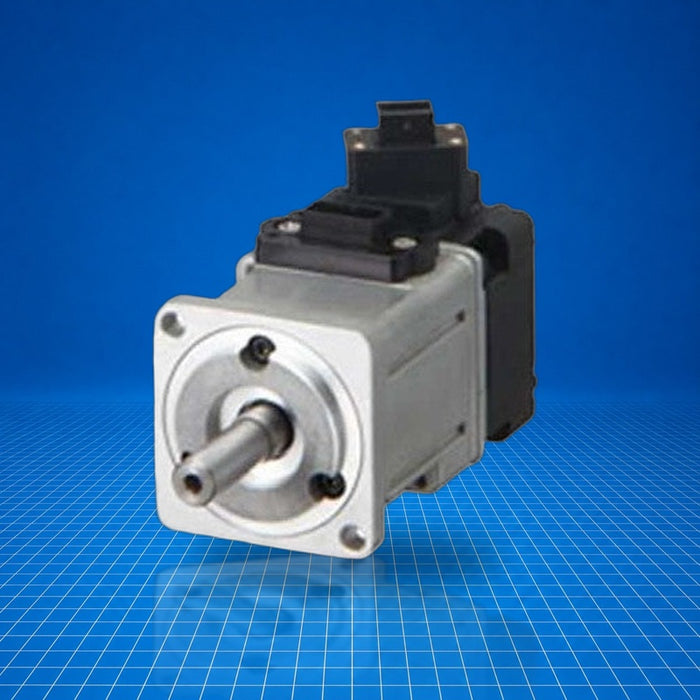

R88M-K75030C-BS2 Omron
Original price
$0.00
-
Original price
$1,994.30
Original price
$1,994.30
$0.00
-
$1,994.30
Current price
$1,994.30
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The R88M-K75030C-BS2 is a 400 VAC, 750 W AC servomotor in Omron's G5-series, featuring an incremental encoder and a brake (BS2 version). It operates at 3 000 r/min (nominal) with up to 5 000 r/min maximum, and integrates as part of motion control systems paired with compatible G5 servo drives. It is used for precise torque and speed control in industrial automation, such as machine tools, assembly lines, and robotics. R88M-K75030C-BS2 provides accurate feedback and safe stopping capability via its integral brake.
Best Suited For
- High-precision positioning in CNC tooling
- Automated assembly and pick-and-place operations
- Applications requiring controlled braking and hold torque
- Integration with G5-series servo drives and MECHATROLINK/EtherCAT systems
Rated output
750 W
Nominal speed
3 000 r/min
Voltage
400 VAC
Brake
integrated
Encoder type
incremental
Technical Specifications
I/O & Electrical
Rated output
750 W
Rated rotation speed
3 000 r/min
Momentary maximum rotation speed
5 000 r/min
Rated torque
2.39 N·m
Momentary maximum torque
7.16 N·m
Rated current (rms)
2.4 A
Momentary maximum current (0-p)
10 A
Communication & Power
Voltage
400 VAC
Physical & Environmental
Ambient operating temperature
0 to +55 °C
Storage temperature
-20 to +65 °C
Vibration resistance
10-60 Hz, ≤5.88 m/s²
Rotor inertia (without brake)
1.61 × 10-4 kg·m²
Rotor inertia (with brake)
1.93 × 10-4 kg·m²
Applicable load inertia
20× rotor inertia max.
Insulation resistance
≥0.5 MΩ at 500 VDC
Dielectric strength
between power supply and FG terminal
