S8VK-T12024 Omron

Original price $554.40 - Original price $581.63
Original price
$581.63
$554.40 - $581.63
Current price $581.63
Surplus - Tested (With Warranty)
Need a Specific Revision?
$581.63
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$554.40
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

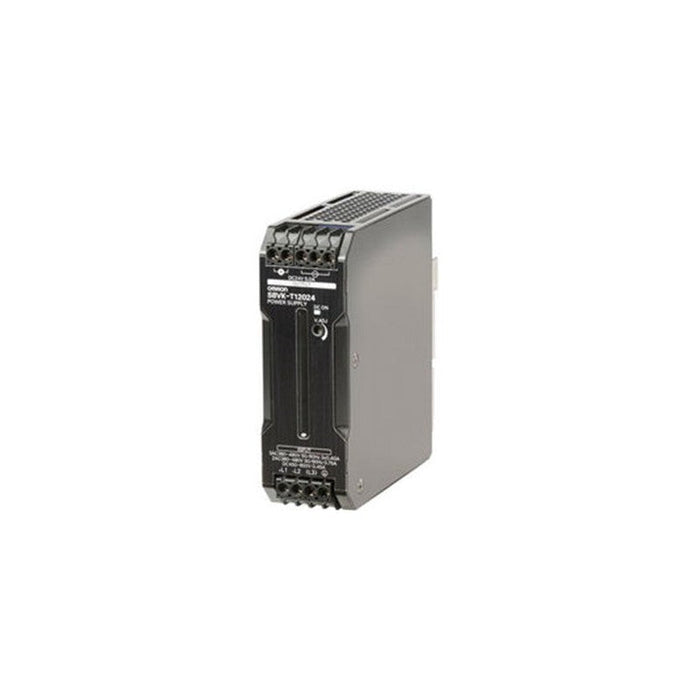

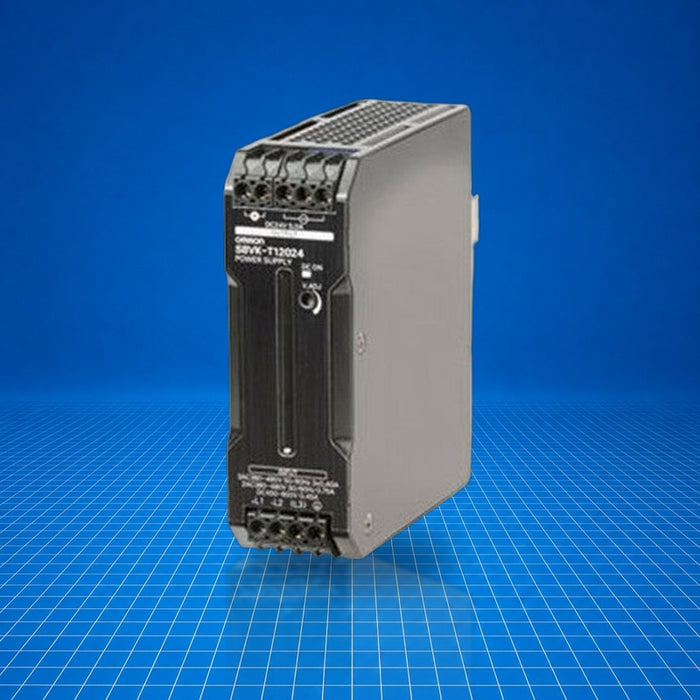

The Omron S8VK-T12024 is a 120 W module in the S8VK-T family of DIN-rail switch-mode power supplies. It converts three-phase or two-phase AC (380-480 VAC) or high-voltage DC (450-600 VDC) into a regulated 24 VDC output, supplying up to 5 A with 6 A peak (boost) capacity. It is typically deployed in industrial control panels to power PLCs, sensors, actuators, and control I/O in manufacturing, process automation, and machine control applications. S8VK-T12024 provides overload, overvoltage protection, and supports series/parallel operation for redundancy or capacity expansion.

Best Suited For

  • Control panel power supply for PLCs and I/O
  • Three-phase or DC high-voltage input environments
  • Redundant or expandable power configurations
  • Industrial equipment in automation and process control
Input types
3-phase 380-480 VAC or 2-phase 380-480 VAC or 450-600 VDC
Output
24 V DC, 5 A (6 A boost)
Protection functions
Overload, Overvoltage
Mounting
DIN-rail, accessory brackets available
Operating temp
-40 °C to 70 °C

Technical Specifications

I/O & Electrical

Input voltage range (AC)
380-480 VAC (allowable to 320-576 VAC)
Input voltage range (DC)
450-600 VDC (allowable to 450-810 VDC)
Output voltage
24 V DC (adjustable 24-29.5 V with V.ADJ)
Output current (rated)
5 A
Boost current
6 A
Efficiency
89 % typical (AC input)
Ripple & noise
40 mV p-p max. at 20 MHz

Communication & Power

Inrush current (cold start)
28 A typical (3-phase 400 VAC)
Leakage current
3.5 mA max, 0.70 mA typical
Power factor
not specified for 120 W (higher models only)

Physical & Environmental

Operating temperature
-40 °C to 70 °C (cold start not guaranteed below -25 °C)
Storage temperature
-40 °C to 85 °C
Humidity
0 % to 95 % (non-condensing)
Vibration resistance
10-55 Hz, 0.375 mm half amplitude, 2 h each axis
Shock resistance
150 m/s², 3 times each ±X, ±Y, ±Z
Degree of protection
IP20
Weight
650 g max

Certifications

UL 508 ListedcULus (UL61010-1 / UL61010-2-201)
