S8VK-T48024 Omron
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

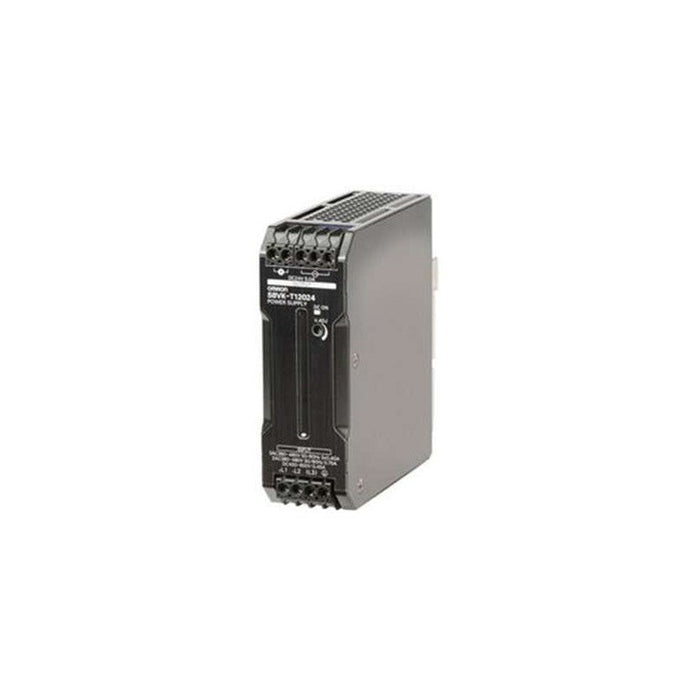

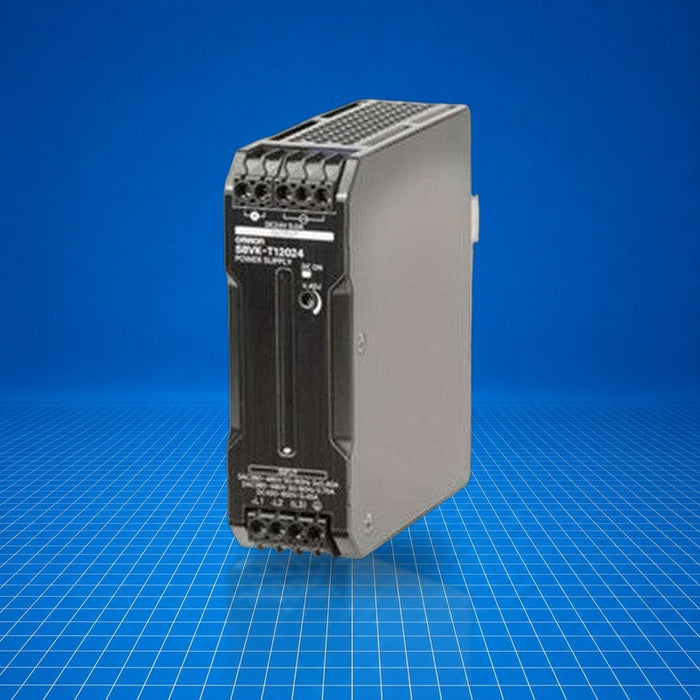

The Omron S8VK-T48024 is a 480 W switch-mode power supply within the S8VK-T series. It converts three-phase (or two-phase) AC (380-480 VAC) or DC (450-600 VDC) input into a regulated 24 VDC output up to 20 A (24 A boost). It provides power conversion with power factor correction (PFC), overload and overvoltage protection, and LED status indication. Typical use cases include centralized panel power for PLCs, drives, and communication devices in industrial automation.
Best Suited For
- DIN-rail or panel-mounted OEM control panels
- Three-phase industrial power distribution systems
- Systems requiring high inrush and boost current capability
- Applications needing regulated 24 VDC bus for PLC, I/O, sensors
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Safety: UL 508, UL 61010-2-201 (OVC III/II Pol2), CSA C22.2 No.61010-2-201 (cUL), EN/IEC 61010-2-201, EN/IEC 62477-1. EMI/EMC: EN 61000-3-2, EN 61204-3 Class B, EN 55011 Class B, high severity EMS. Other: RCM, Lloyd's, SEMI F47-0706. SELV/PELV compliance.
