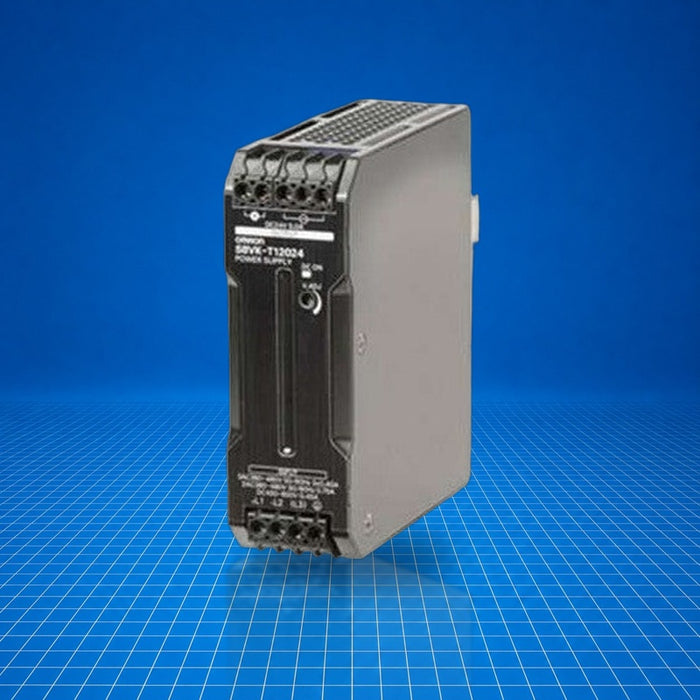

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
S8VK-T96024 Omron
Original price
$500.00
-
Original price
$794.75
Original price
$500.00
$500.00
-
$794.75
Current price
$500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Omron S8VK-T96024 is a switch-mode power supply in the S8VK-T series, delivering 24 V DC output at up to 40 A (continuous) and 48 A (boost). It integrates seamlessly into industrial automation systems to provide reliable control-power to PLCs, relays, sensors, and I/O modules. Typical deployment scenarios include power distribution for control cabinets, machinery control panels, and other high-current automation applications. S8VK-T96024 supports both two-phase and three-phase AC inputs or high-voltage DC, offering flexibility in various power environments.
Best Suited For
- Feeding high-current loads in control panels
- Three-phase or two-phase industrial power environments
- Redundant/parallel power supply arrangements
- Harsh industrial environments requiring wide-temperature operation
Output voltage
24 V DC
Continuous output current
40 A
Boost (peak) current
48 A
Input voltage range
3-phase 380-480 VAC (320-576 VAC); 2-phase 380-480 VAC (340-576 VAC); 450-600 VDC (450-810 VDC)
Degree of protection
IP20
Technical Specifications
I/O & Electrical
Input voltage range
3-phase 380-480 VAC (320-576 VAC); 2-phase 380-480 VAC (340-576 VAC); 450-600 VDC (450-810 VDC)
Output voltage
24 V DC
Rated output current
40 A
Boost output current
48 A
Ripple & noise
60 mV p-p max. at 20 MHz bandwidth
Efficiency
93 % typ. (3-phase, 400 VAC input)
Leakage current
3.5 mA max. / 1.2 mA typ. (3-phase, 400 VAC)
Inrush current
6 A typ. (cold start at 25 °C, 3-phase, 400 VAC)
Startup time
500 ms typ. (3-phase, 400 VAC)
Hold time
35 ms typ. (3-phase, 400 VAC)
Output voltage adjustment range
24 to 29.5 V DC (with V.ADJ)
Communication & Power
Power factor
0.9 min. (3-phase, 400 VAC)
Insulation withstand voltage
3.0 kVAC between input/output; 2.5 kVAC input/PE; 1.0 kVAC output/PE (1 min)
Insulation resistance
100 MΩ min. at 500 V DC
Physical & Environmental
Operating temperature
-40 to 70 °C (startup only -40 to -25 °C)
Storage temperature
-40 to 85 °C
Humidity
0 % to 95 % (non-condensing)
Vibration resistance
10-55 Hz, 0.375-mm half amplitude, 2 h per axis
Shock resistance
150 m/s², 3× per axis
Weight
2,000 g max.
Degree of protection
IP20
Certifications
UL 508 ListedcULus UL 61010-1 / UL 61010-2-201SELV / PELV complianceEN/IEC 62477-1RCMLloyd'sBISSEMI F47-0706
