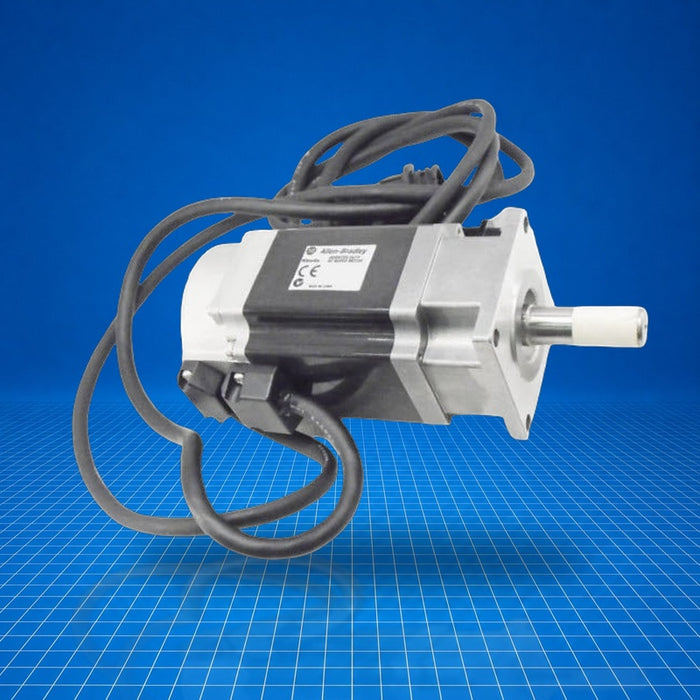

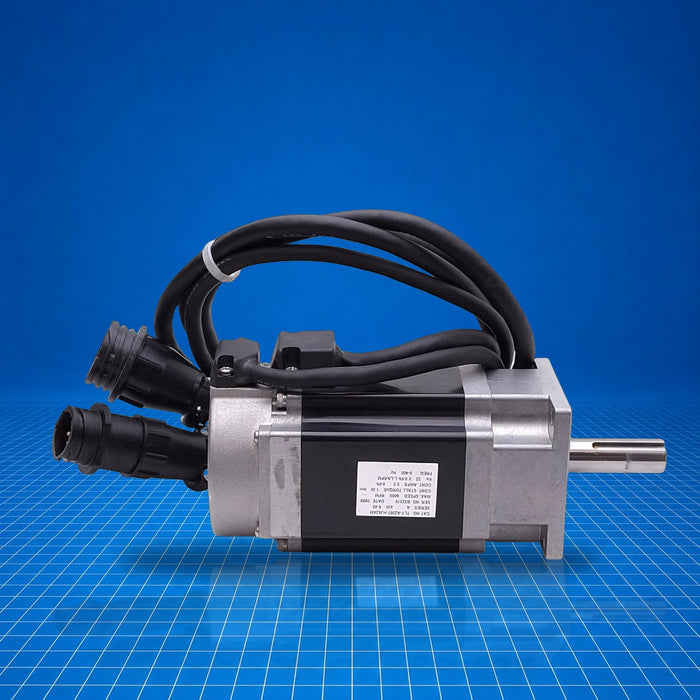

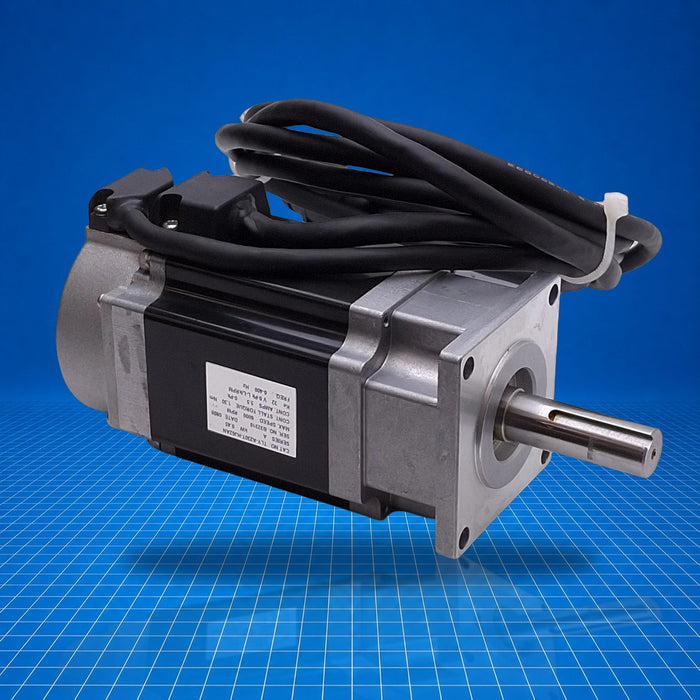

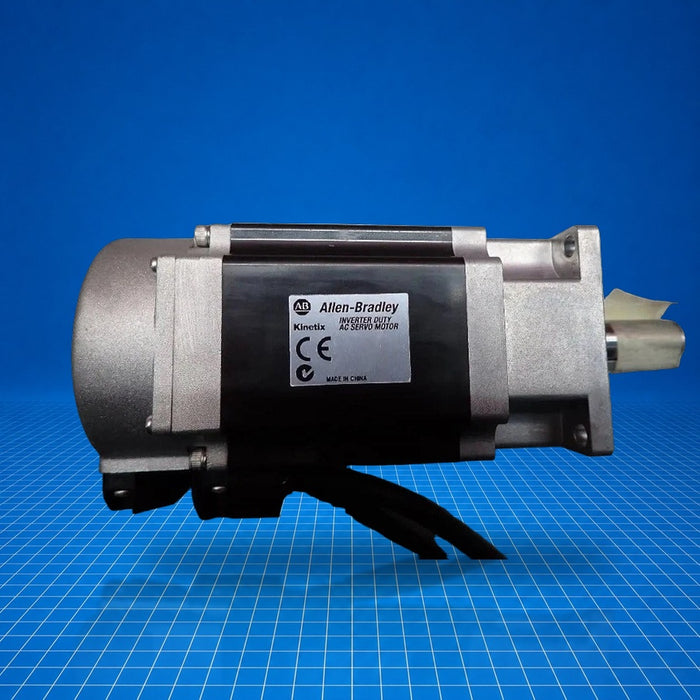

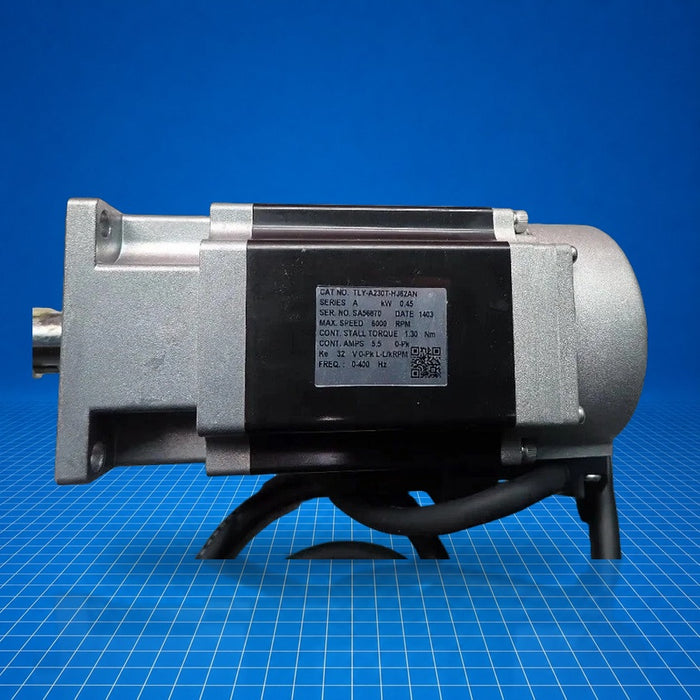

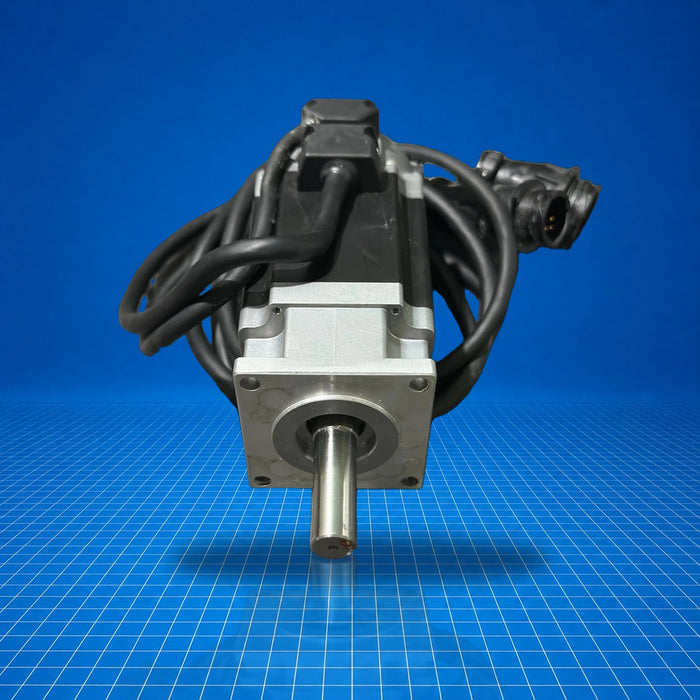

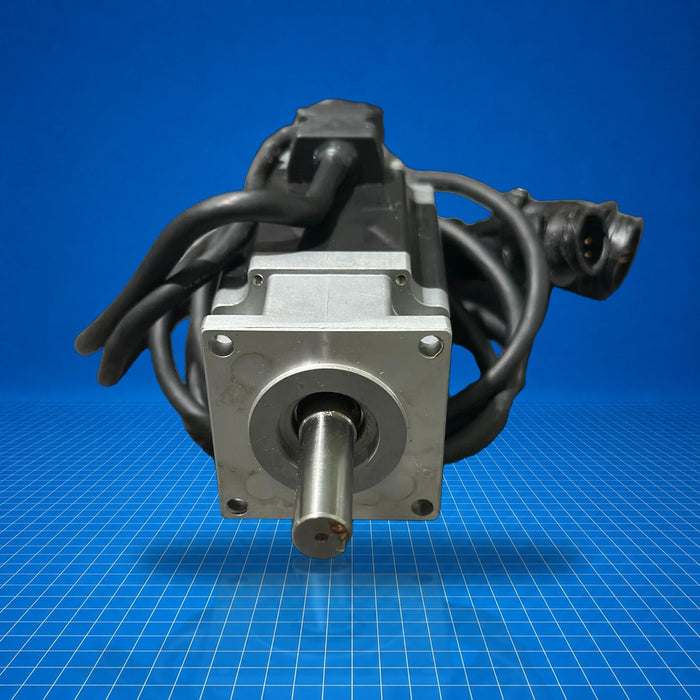

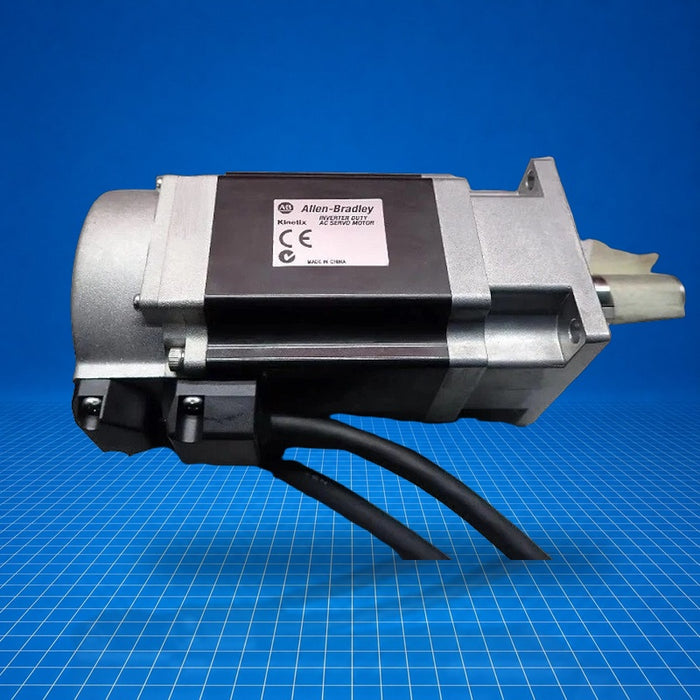

TLY-A230T-HJ62AN Allen-Bradley
Original price
$1,100.00
-
Original price
$1,497.50
Original price
$1,100.00
$1,100.00
-
$1,497.50
Current price
$1,100.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

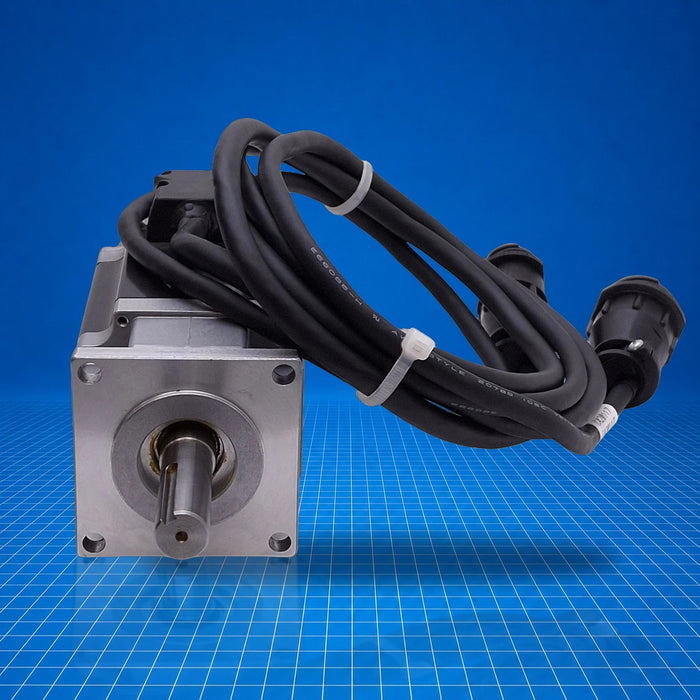

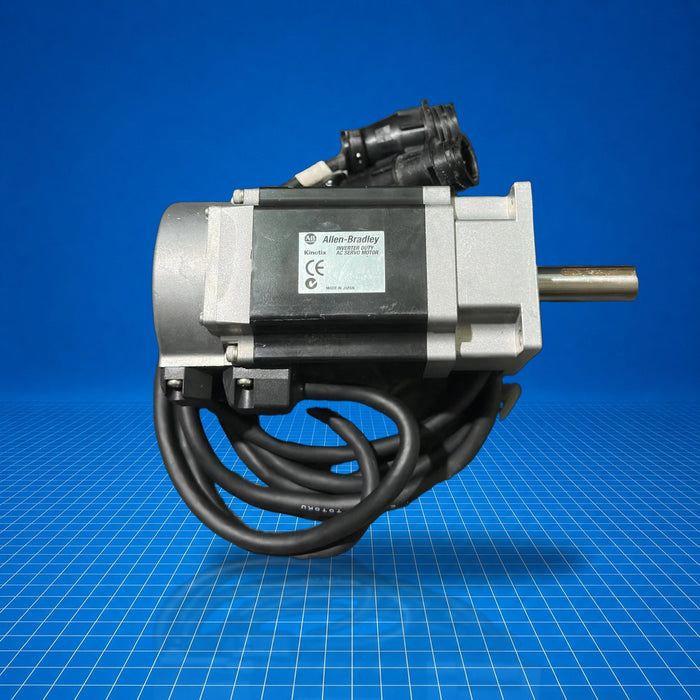

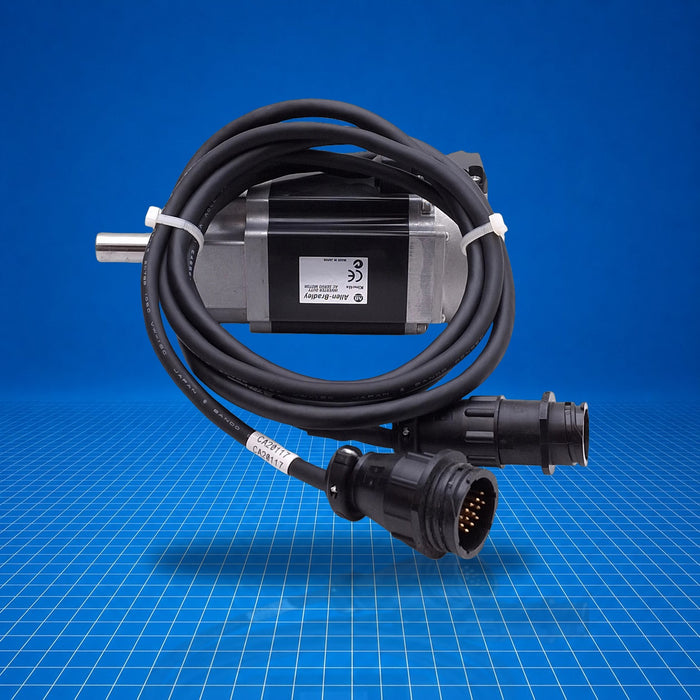

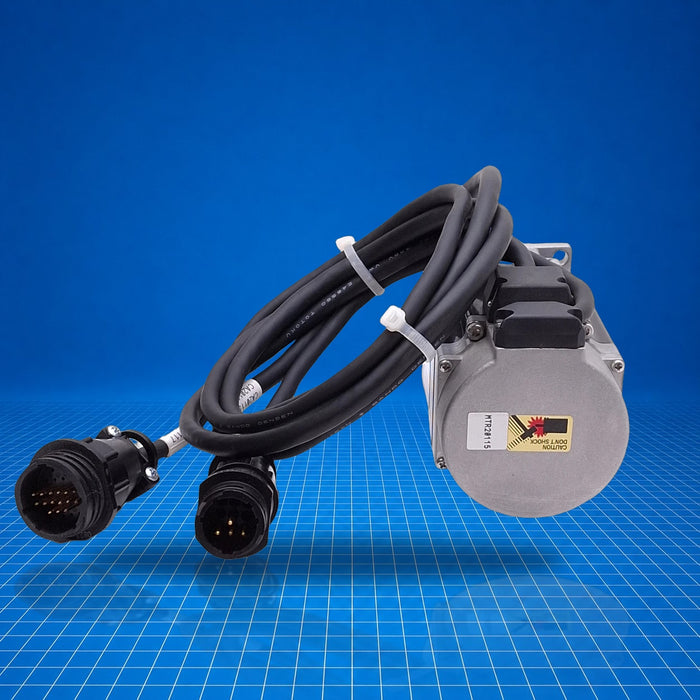

TLY-A230T-HJ62AN is an Allen-Bradley TL-Series (TLY Compact) 230 V AC rotary servo motor. It delivers incremental encoder feedback (2 000 lines per revolution), operates at 6 000 rpm, has a 70 mm (NEMA 23) frame size, three-stack magnet length, IP65 enclosure with shaft key and no shaft seal, and a 1 m cable with circular connector. It functions in motion control loops for positioning or velocity control in industrial machinery.
Best Suited For
- Kinetix servo drive systems (e.g. Kinetix 300/6000/6200/6500/Ultra series)
- On-machine servo positioning applications
- Metric or NEMA mounting flange applications (NEMA 23 frame)
- Environments requiring IP65 motor housing
Voltage
230 V AC
Frame size
70 mm (NEMA 23)
Maximum speed
6 000 rpm
Feedback
Incremental encoder, 2 000 lines/rev
Cable length
1 m with circular connector
Technical Specifications
I/O & Electrical
Voltage rating
230 V AC
Communication & Power
Feedback type
Incremental encoder (2 000 lines/rev)
Cable connector
Circular, 1 m
Physical & Environmental
Frame size
70 mm (2.75 in.) / NEMA 23
Rated speed
6 000 rpm
Enclosure rating
IP65 housing, shaft key, no shaft seal
Magnet stack length
Three stack
Certifications
Eurasian Economic CommunityKorean KCAustralian RCM
Certified with Eurasian Economic Community, Korean KC, Australian RCM as of September 10, 2025.
