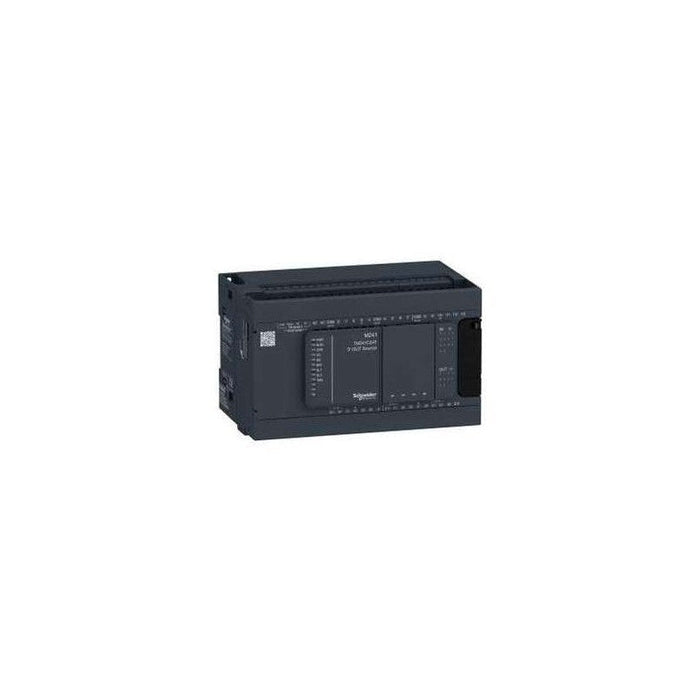

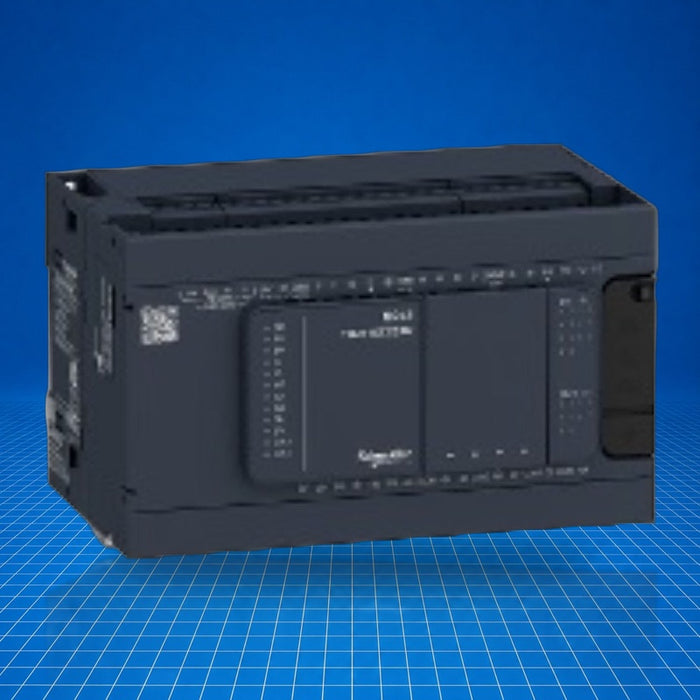

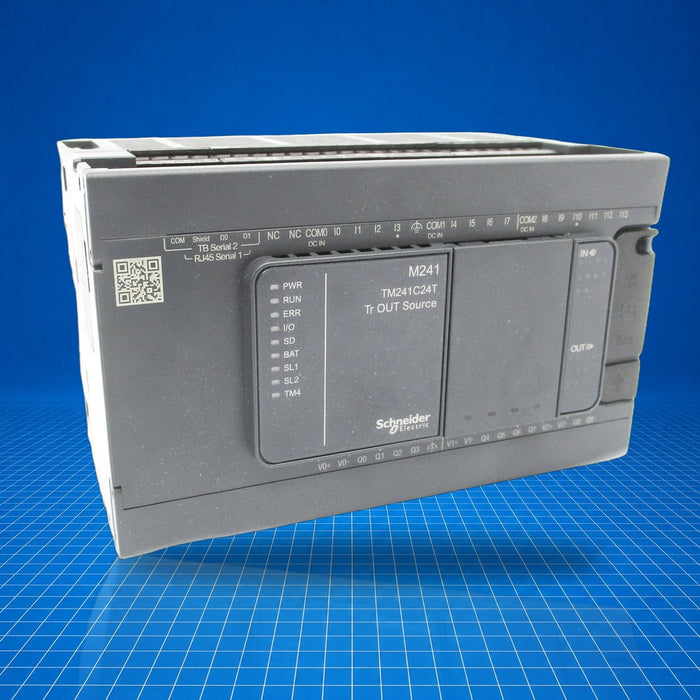

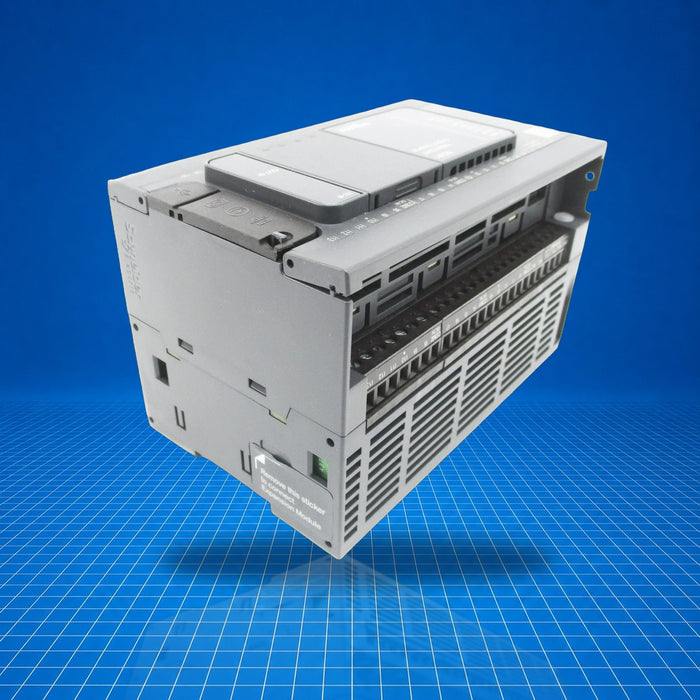

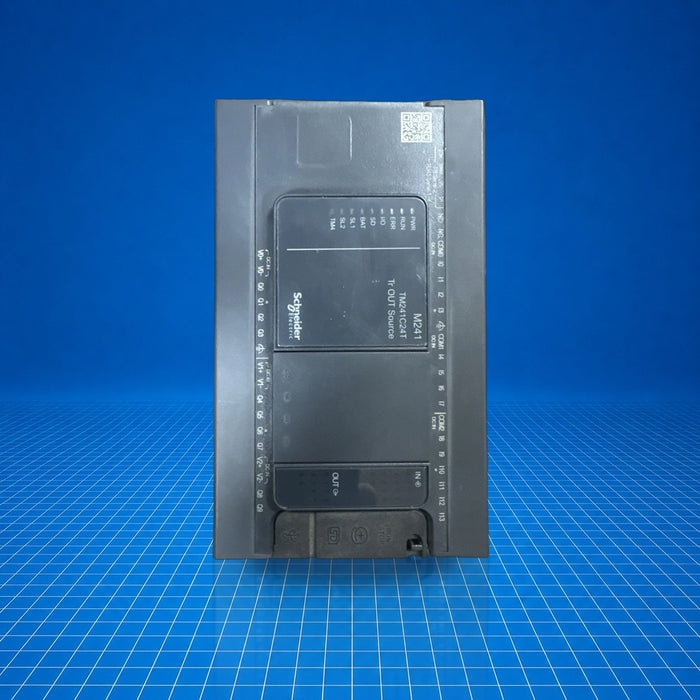

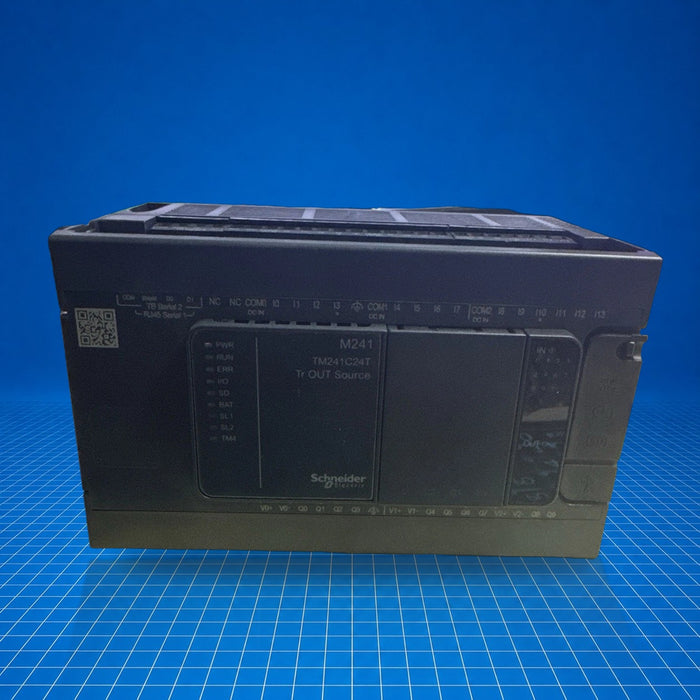

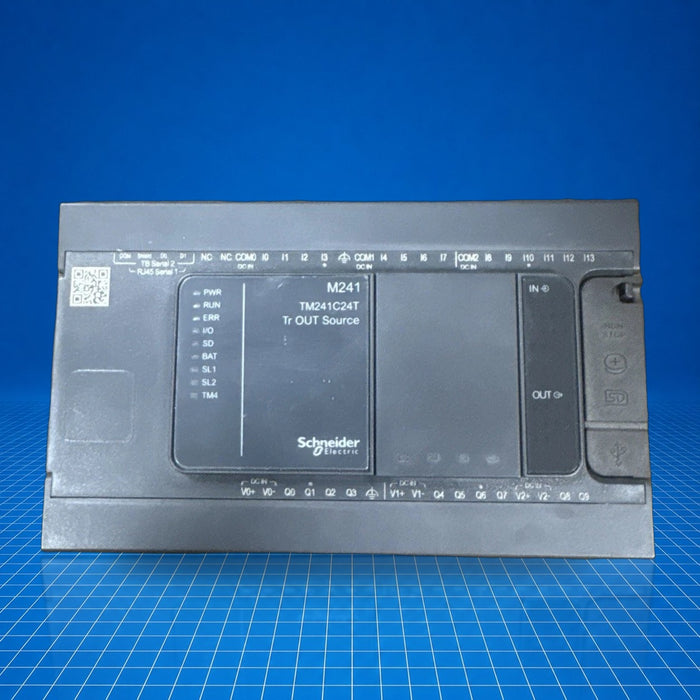

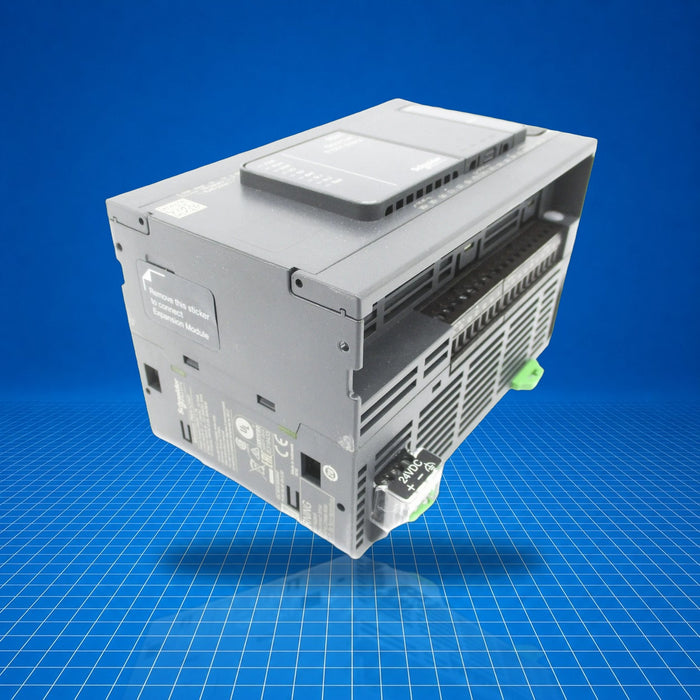

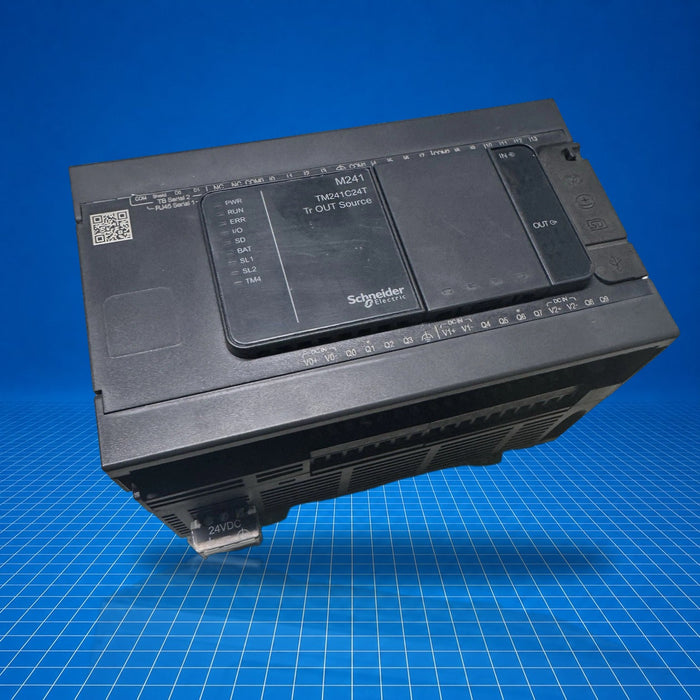

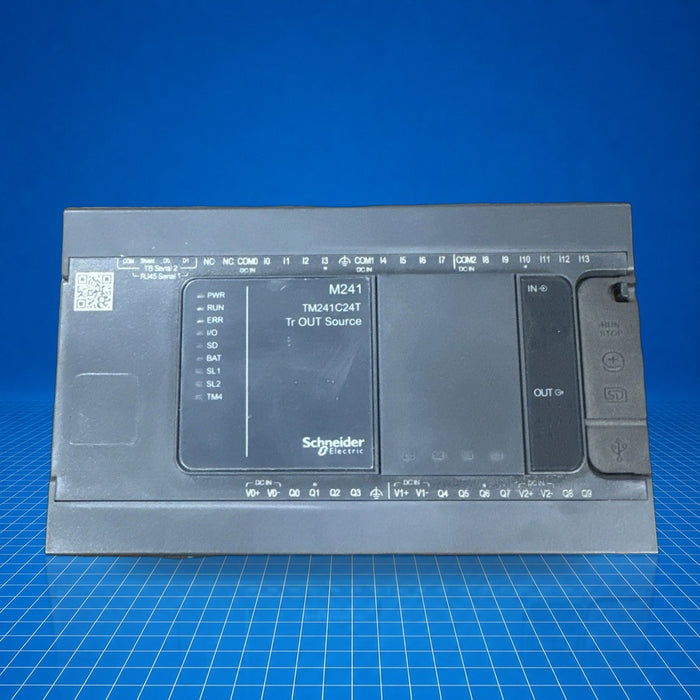

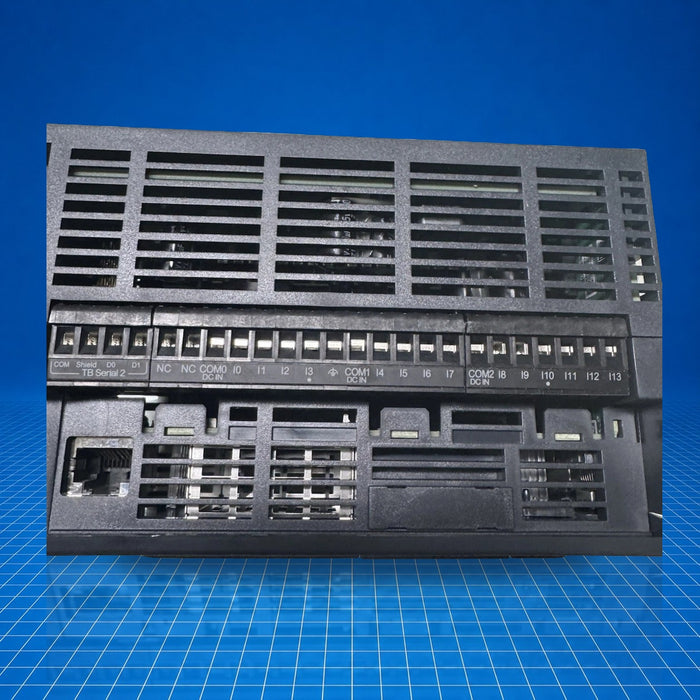

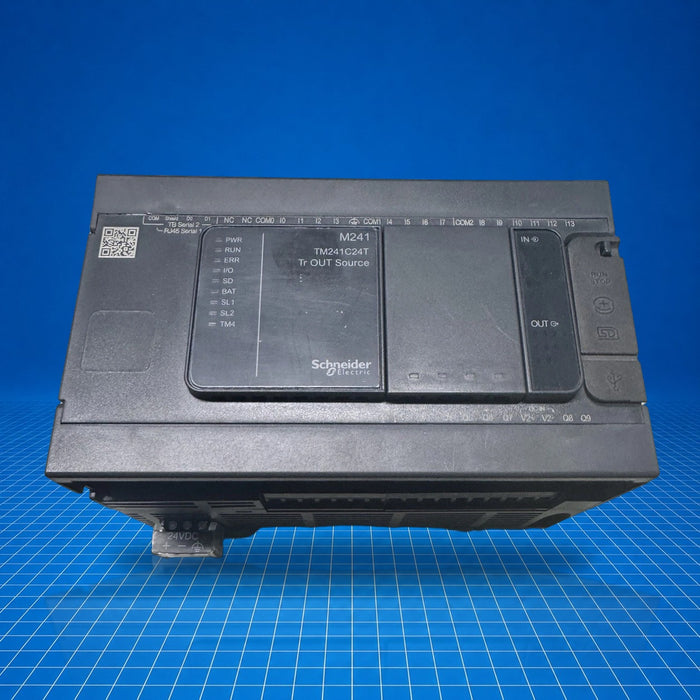

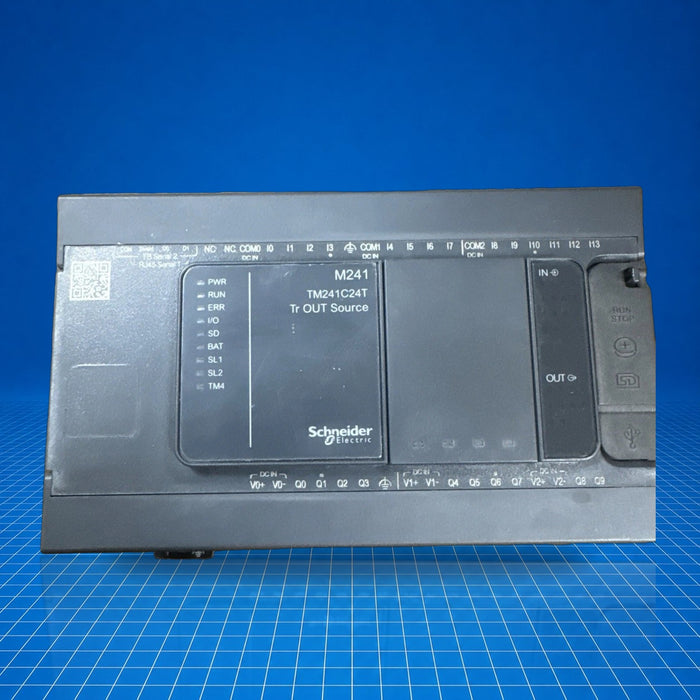

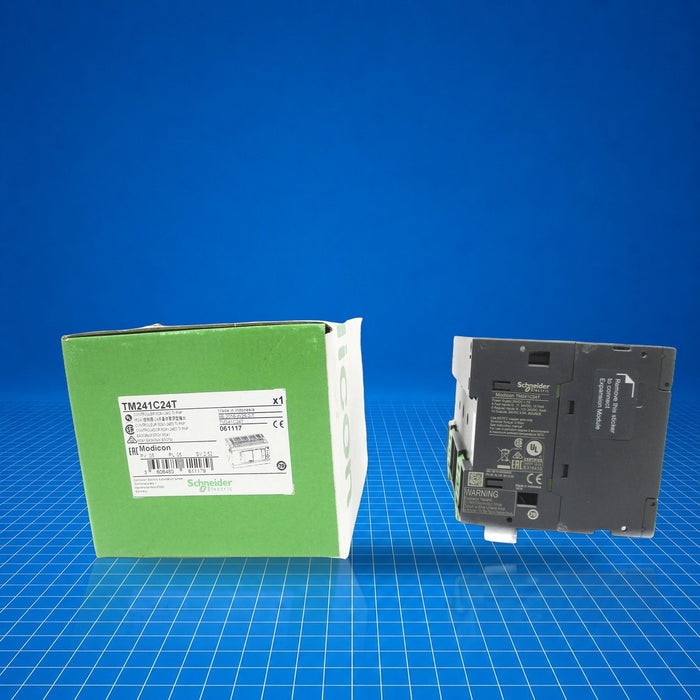

TM241C24T Schneider Electric
Original price
$759.96
-
Original price
$1,657.50
Original price
$759.96
$759.96
-
$1,657.50
Current price
$759.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The TM241C24T is a Modicon M241 series logic controller from Schneider Electric. It integrates 24 digital I/O points (PNP transistor type) and is part of the EcoStruxure Machine Expert platform. This micro-PLC executes machine logic and pulse generation for mid-size automation tasks. It supports Ethernet, USB and optional CANopen connectivity via embedded communication ports. Typical uses include machine control, motion interfacing, and packaging line logic where compact, expandable control is required.
Best Suited For
- Standalone machine logic control
- Pulse generator output for motion applications
- On-site mid-size packaging or assembly machines
- Upgrading modular OEM automation cells
Digital I/O points
24
Fast inputs (counters)
8
Fast outputs (pulse)
4
Regular transistor outputs
6
Technical Specifications
I/O & Electrical
Digital inputs
6 regular + 8 fast (counters)
Digital outputs
10 transistor outputs (6 regular + 4 fast pulse)
Discrete output current
0.5 A regular outputs; 0.1 A fast outputs
Communication & Power
Communication ports
2 serial line + 1 USB programming port (embedded)
Supply voltage
24 V DC
Physical & Environmental
Terminal type
Removable screw terminal blocks
Certifications
UL 508CSA C22.2 No. 14-18Class I Div 2
Certified for Class I, Division 2, Groups A, B, C, D hazardous locations.
