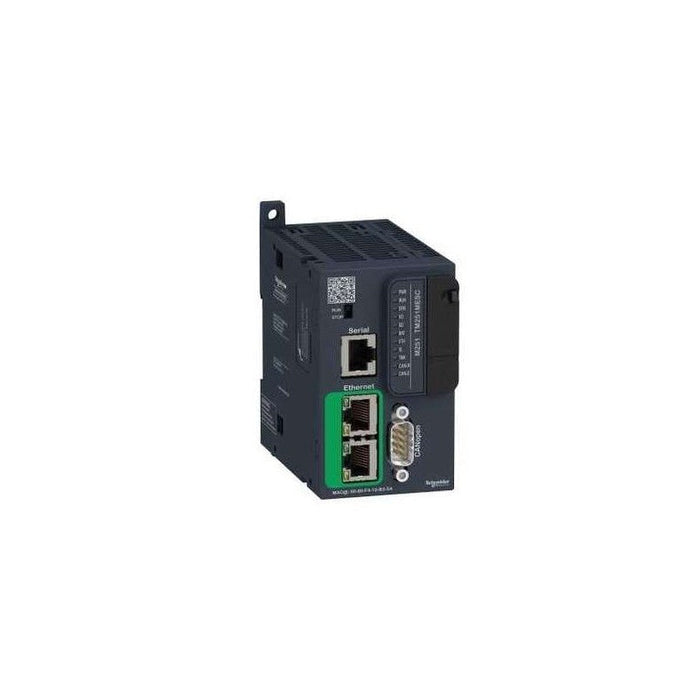

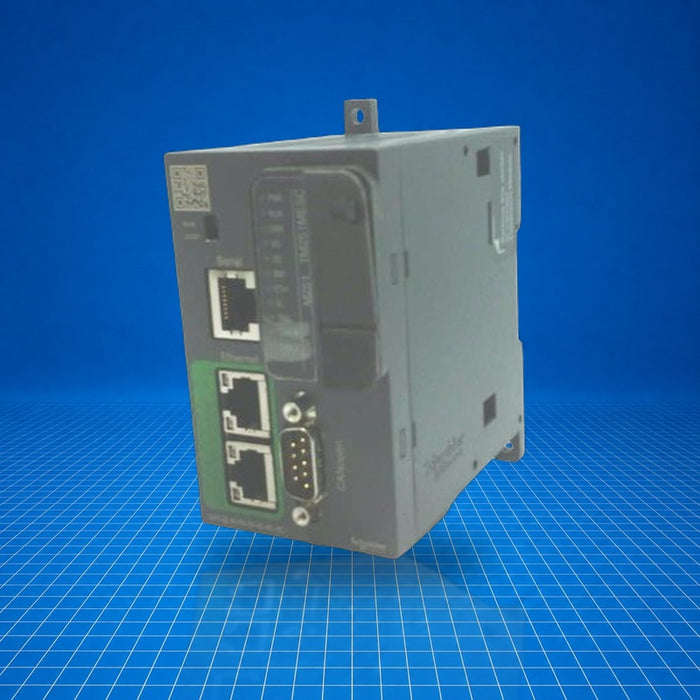

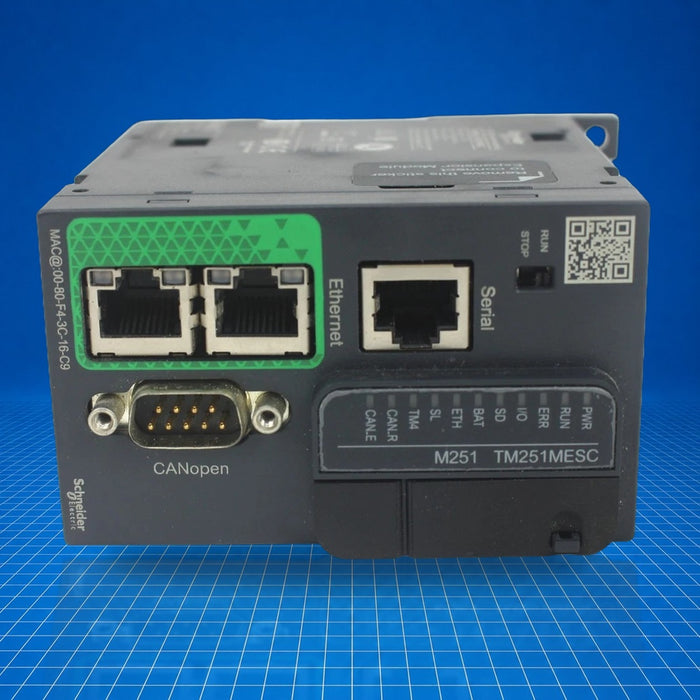

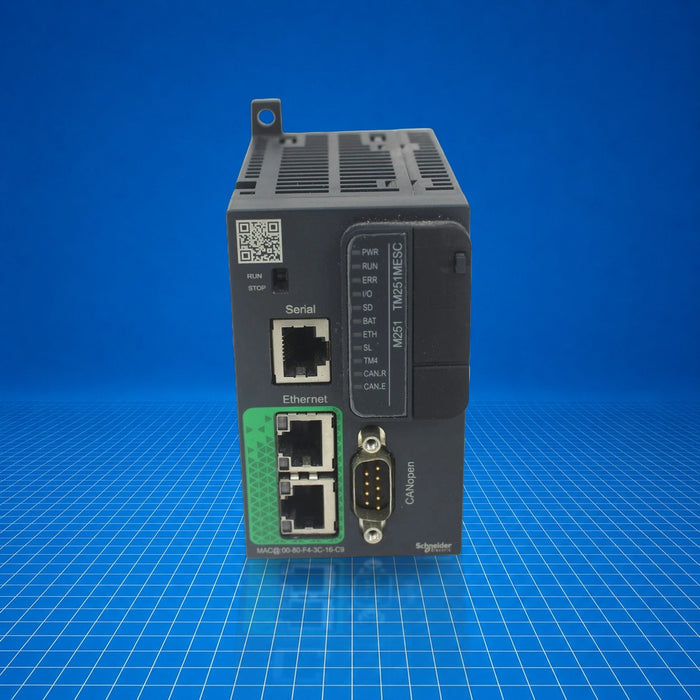

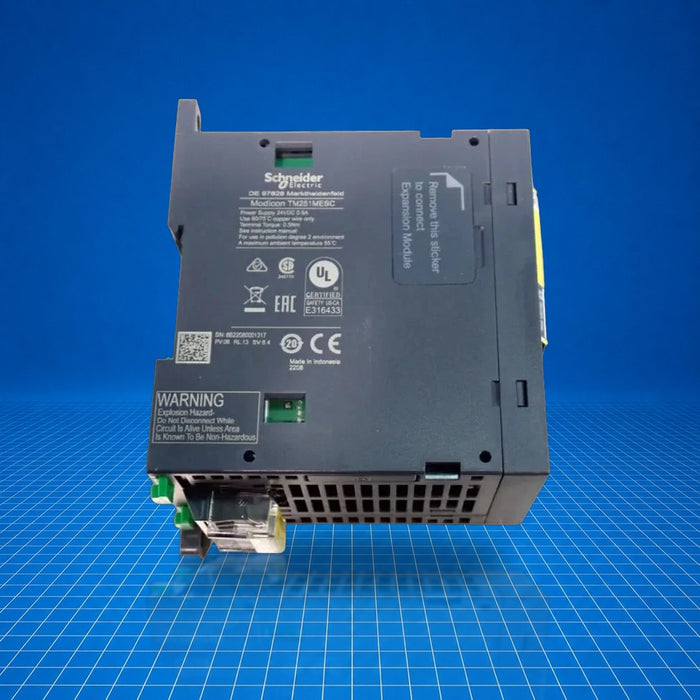

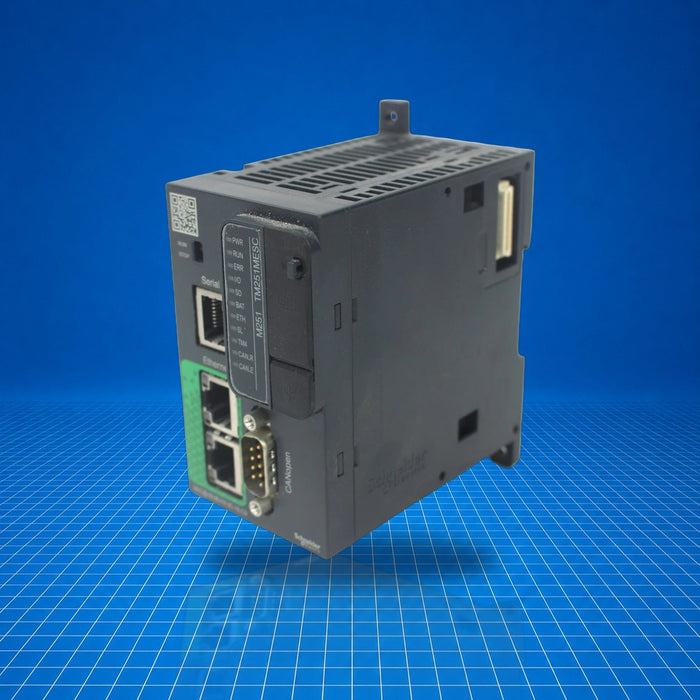

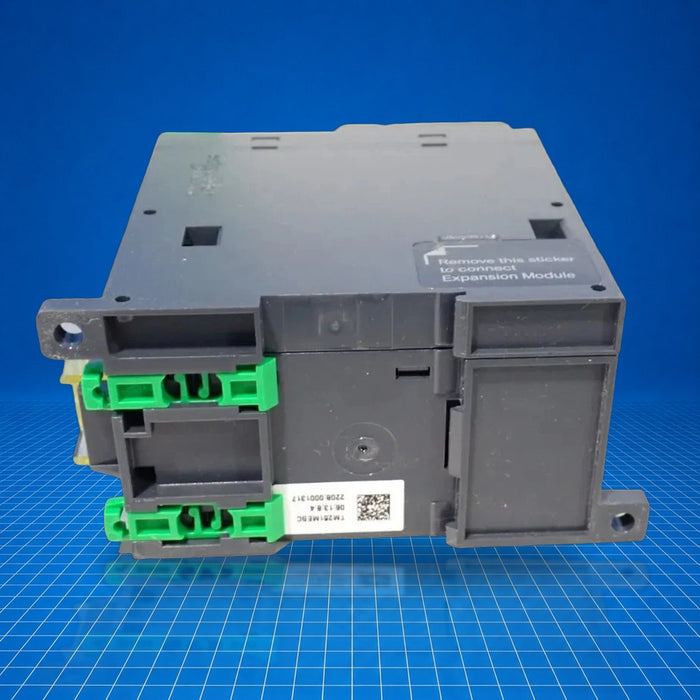

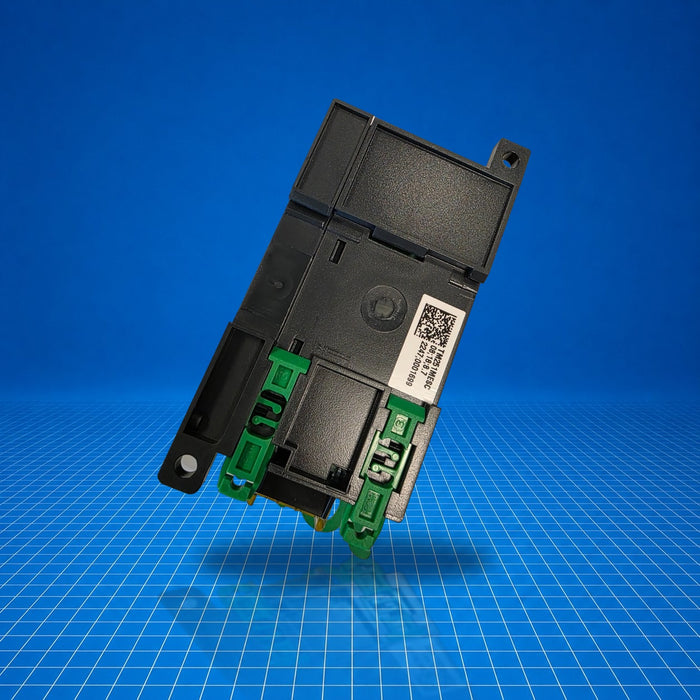

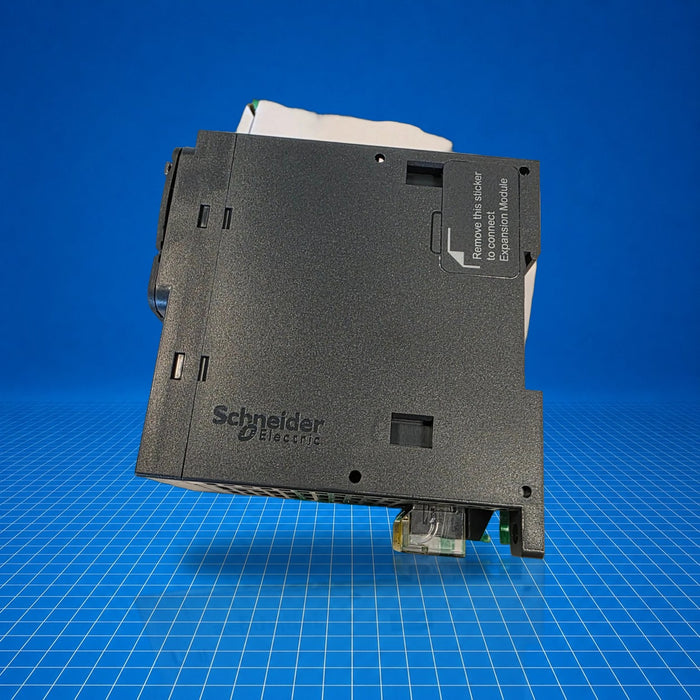

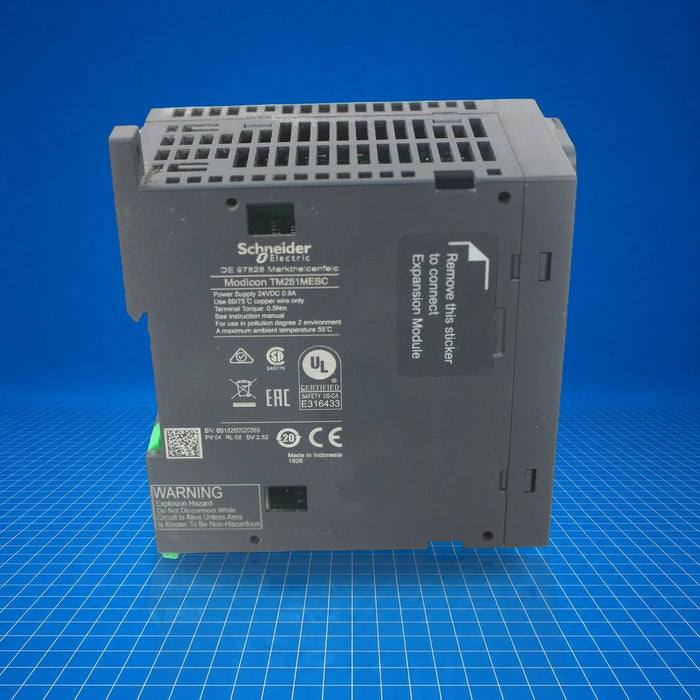

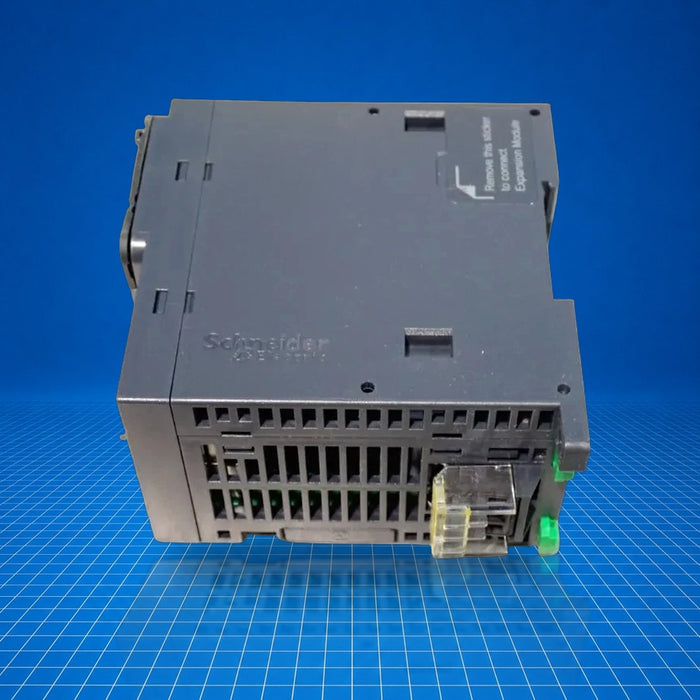

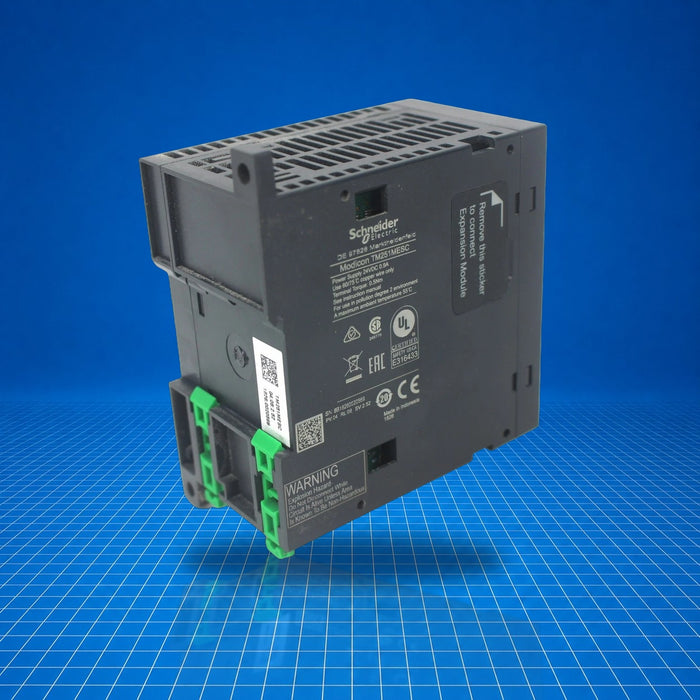

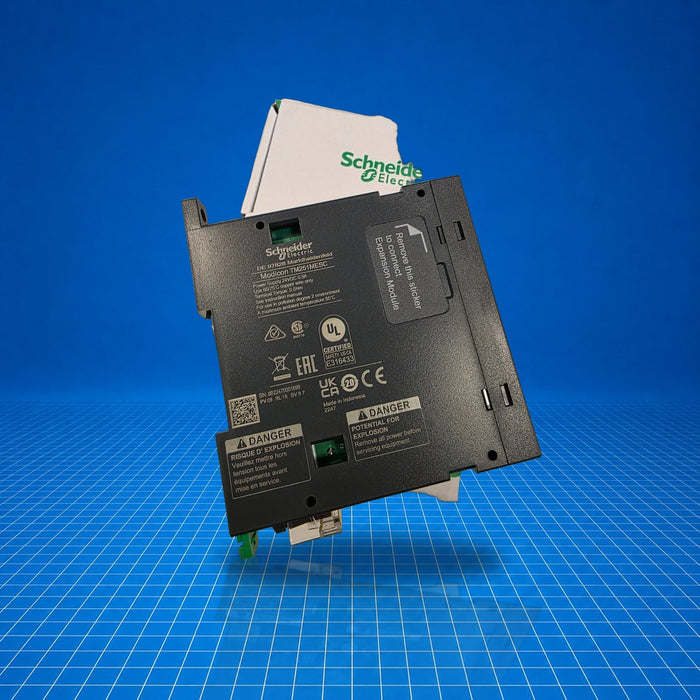

TM251MESC Schneider Electric
Original price
$990.00
-
Original price
$2,214.92
Original price
$990.00
$990.00
-
$2,214.92
Current price
$990.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

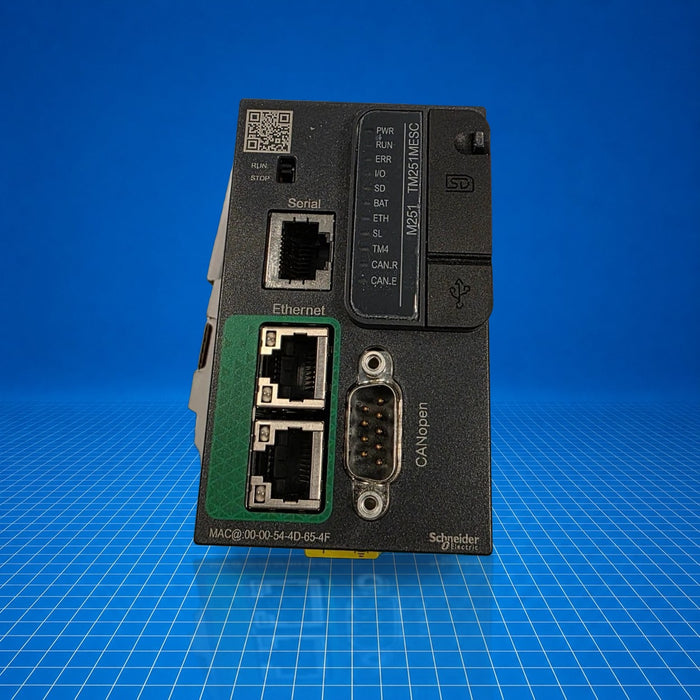

The TM251MESC is a Modicon M251 Logic Controller from Schneider Electric's M251 platform. It provides programmable logic functions with embedded communication options, including dual-port Ethernet switch, CANopen Master, serial line, USB-mini-B programming port, and SD card support. It occupies a module with no built-in digital I/O and interfaces with TM2/TM3/TM4 expansion modules. Typical applications include mid-range machine control, distributed automation architecture, and fieldbus integration.
Best Suited For
- Mid-range machine control in EcoStruxure Machine Expert systems
- Distributed automation with TM expansion modules
- Fieldbus communication via Ethernet switch or CANopen
- Applications requiring SD-based firmware or recipe updates
Power supply
24 V DC
Memory
RAM 64 MB (8 MB avail.), Flash 128 MB
Communications
Ethernet dual-port, CANopen, serial line, USB-mini-B
Expansion
TM2, TM3, TM4 modules; SD card slot
Technical Specifications
I/O & Electrical
Digital Inputs
0
Digital Outputs
0
Communication & Power
Input voltage
24 V DC
Power supply voltage range
19.2…28.8 V DC
Power consumption
32.6 W (max 40.4 W with 7 expansions)
Embedded ports
1 serial line, 1 USB-mini-B, dual-port Ethernet switch, 1 CANopen
Physical & Environmental
Dimensions (W×H×D)
110 mm × 54 mm × 97.3 mm
Weight
220 g
Operating temp (horizontal)
-10…55 °C
Operating temp (vertical)
-10…35 °C
Storage temp
-25…70 °C
Humidity
10…95 % non-condensing
Protection rating
IP20 (with covers)
Vibration/Shock
IEC 61131-2 tested (3.5 mm/1 g; 10 mm/3 g; shock 15 g)
