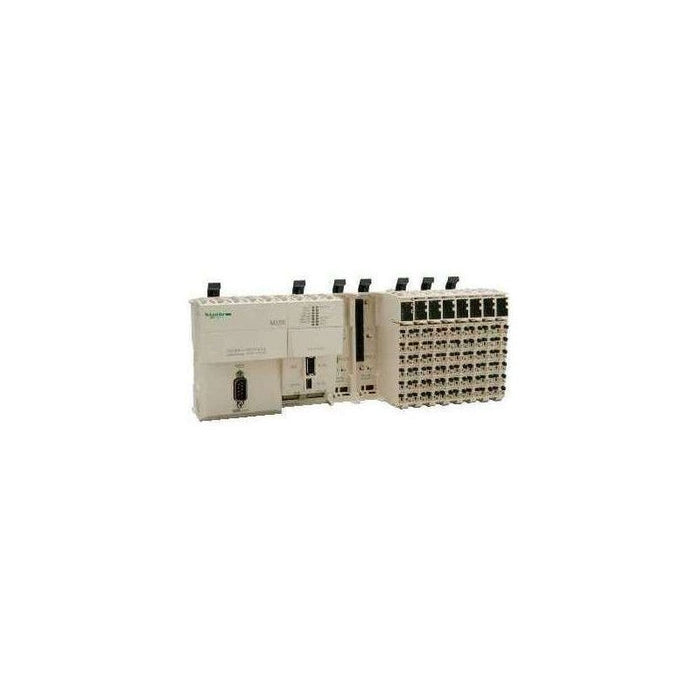

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
TM258LF66DT4L Schneider Electric
Original price
$0.00
-
Original price
$2,447.55
Original price
$2,447.55
$0.00
-
$2,447.55
Current price
$2,447.55
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

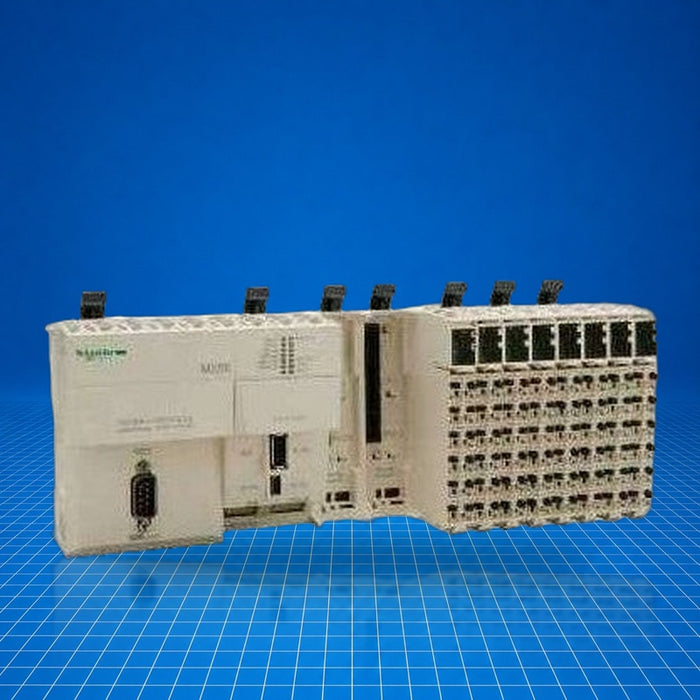

The TM258LF66DT4L is a Modicon M258 compact logic controller by Schneider Electric. It provides a mix of embedded Expert and Regular I/O and integrates multiple communication ports. In an industrial control system it serves as a central logic processor, interfacing with sensors, actuators, networks and expansion I/O. Typical applications include packaging machinery, conveying systems, hoisting equipment, and general machine automation. TM258LF66DT4L supports local decision-making and control operations with embedded I/O and optional communication modules.
Best Suited For
- Machine-level control in packaging or conveying systems
- Integration in TM5 modular I/O architectures
- Applications requiring mixed analog and digital I/O
- Retrofit where compact basis with CANopen, Ethernet, USB needed
- Replacing with newer M262 platforms
Embedded I/O mix
2× fast inputs, 5 fast outputs; 2 embedded regular input modules, 2 output modules; 4 analog inputs (12 bit)
Comm ports
Ethernet RJ45, Serial (RS232/RS485) RJ45, USB-A host, USB-B programming, CANopen master
PCI slots
2 free PCI slots for optional comm modules
Power
24 V DC (SELV)
Weight
800 g
Technical Specifications
I/O & Electrical
Digital inputs
24 V DC, IEC 61131-2 Type 1, 12 + 12 channels
Digital outputs
24 V DC transistor outputs, 0.5 A, 12 + 12 channels, includes 4 reflex outputs
Analog inputs
4 inputs ±10 V / 4-20 mA / 0-20 mA, 12-bit resolution
Communication & Power
Input voltage
24 V DC (SELV)
PCI expansion
2 free PCI slots for communication modules
Communication ports
Ethernet RJ45; Serial Line RJ45 (RS232/RS485); USB-A host; USB-B programming; CANopen master Sub-D 9-way
Physical & Environmental
Weight
800 g (28.2 oz)
Dimensions
99 × 262.5 × 85 mm
