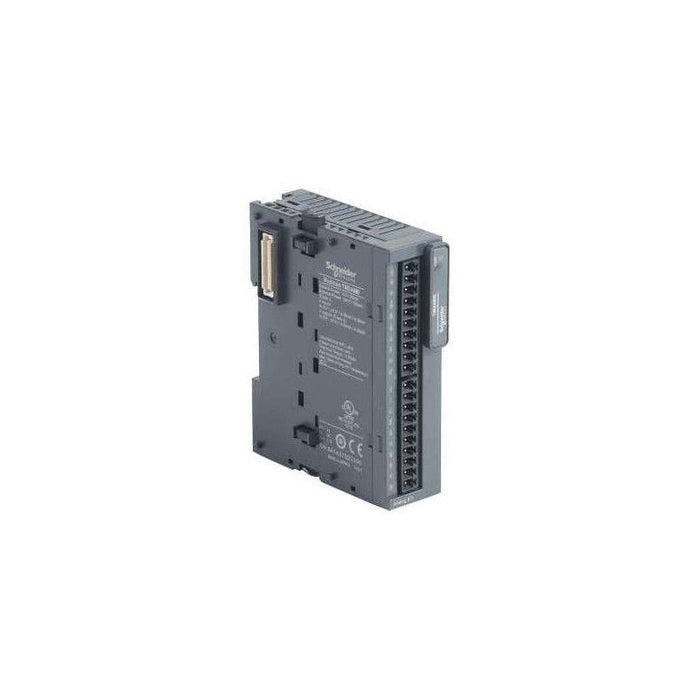

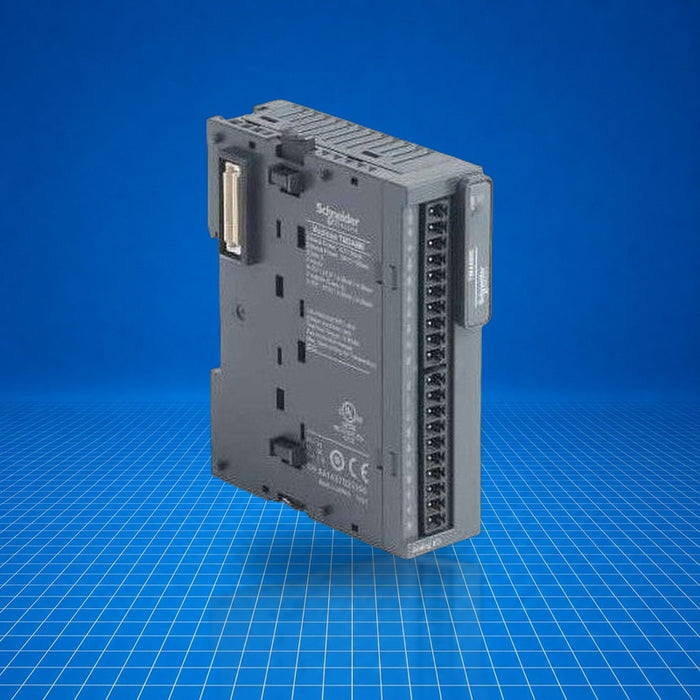

TM3AM6 Schneider Electric
Product image is representative; revision or series may vary.
Contact us to request a specific version.

TM3AM6 Schneider Electric

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Surplus - Tested (With Warranty)
Get Pricing ~5 mins
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (0) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Schneider Electric TM3AM6 is a Modicon TM3 series analog expansion module featuring four analog input channels and two analog output channels, each with 12-bit resolution (or 11-bit plus sign). It attaches via a screw-terminal block to compatible Modicon M221, M241, M251, or M262 PLC controllers and is used to acquire and drive analog signals in industrial control systems. Common applications include process parameter monitoring, signal generation, and integration of multi-channel sensors or actuators in automated machinery.

Best Suited For

  • Expansion of analog I/O on Modicon M2xx PLCs
  • 4-channel analog input measurement (voltage/current)
  • 2-channel analog output signal generation (voltage/current)
  • Compact on-machine analog module
Analog I/O channels
4 inputs / 2 outputs
Resolution
12-bit (11-bit + sign)
Power supply
24 V DC
Weight
110 g (3.88 oz)
Terminal type
Removable screw terminal block

Technical Specifications

I/O & Electrical

Analogue input types
0...10 V, -10...+10 V, 0...20 mA, 4...20 mA
Analogue output types
0...10 V, -10...+10 V, 0...20 mA, 4...20 mA
Input impedance
≥ 1 MΩ (voltage), ≤ 50 Ω (current)
Output load impedance
≥ 1 kΩ (voltage output), ≤ 300 Ω (current output)
Accuracy
±0.2 % FS at 25 °C
Repeatability
±0.5 % FS input; ±0.4 % FS output
Temperature drift
±0.01 % FS/°C
Non-linearity
±0.2 % FS
Output ripple
20 mV max
Sampling time
1 ms or 10 ms per channel (software configurable)
Resolution detail
12 bits (4096 points)
Isolation
1500 Vac (external power vs inputs); 500 Vac (I/O vs logic)

Communication & Power

Rated supply voltage
24 V dc
Voltage supply range
20.4…28.8 V dc
Current draw (5 V internal bus)
40 mA (no load), 50 mA (full load)
Current draw (external 24 V)
55 mA (no load), 100 mA (full load)

Physical & Environmental

Weight
110 g (3.88 oz)
Terminal type
Removable screw terminal block (3.81 mm pitch)
Cable
Twisted-pair shielded, ≤ 30 m (98 ft)
Connector durability
≥ 100 insertions/removals

Certifications

RoHSREACHClass I Division 2

Listed for Class I Div 2 hazardous locations as part of TM3A analog modules series. RoHS compliant, proactive compliance without exemption. REACH: contains SVHCs above threshold (e.g., lead oxide); follow disposal and WEEE guidance.
