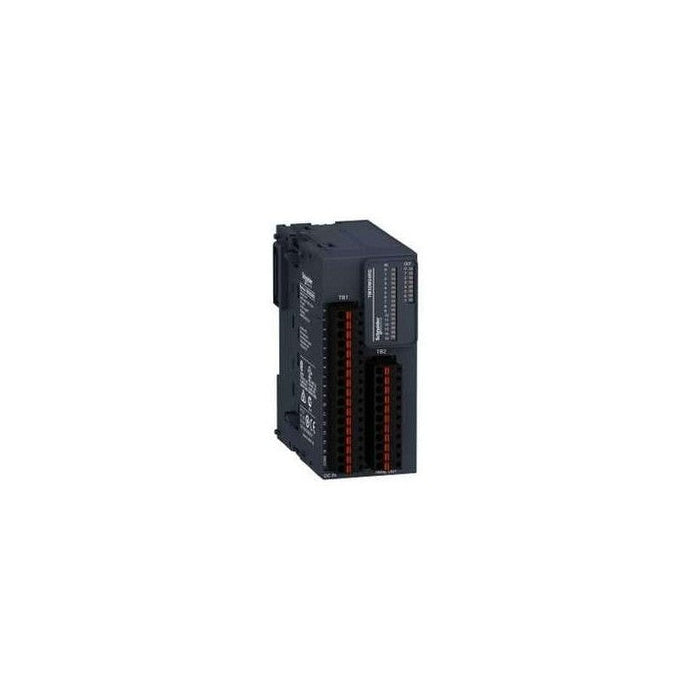

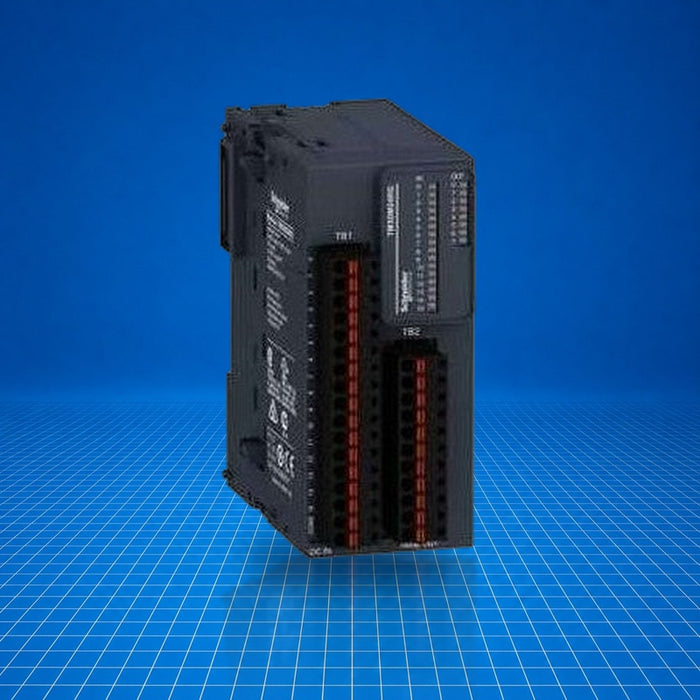

TM3DM24RG Schneider Electric
Original price
$0.00
-
Original price
$630.00
Original price
$630.00
$0.00
-
$630.00
Current price
$630.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Schneider Electric TM3DM24RG is a mixed digital I/O expansion module in the Modicon TM3 series. It provides 16 sink/source 24 Vdc inputs and 8 relay outputs (2 A) on spring terminal blocks, intended to extend the I/O capacity of Modicon M2xx (M221, M241, M251, M262) PLCs. It supports standard IEC/EN 61131-2 type 1 input logic and is typically employed in machine automation, packaging, material handling, or discrete control systems requiring compact, field-installable I/O expansion. TM3DM24RG enhances modularity and wiring convenience while integrating seamlessly within EcoStruxure Machine Expert environments.
Best Suited For
- Expansion of Modicon M2xx PLC I/O capacity
- Mixed input/output discrete applications
- Applications requiring spring-terminal I/O wiring
- Modular machine automation under EcoStruxure Machine Expert
Inputs
16 sink/source 24 Vdc
Outputs
8 relay (NO) 2 A
Connection
Spring terminal blocks
Weight
140 g
PLC family
Modicon TM3/M2xx
Technical Specifications
I/O & Electrical
Input voltage range
19.2-28.8 Vdc
Rated input current
7 mA
Input impedance
3.4 kΩ
Rated output voltage
24 Vdc / 240 Vac
Rated output current
2 A per channel
Max common output current
7 A
Minimum switching load
5 Vdc at 10 mA
Communication & Power
Internal 5 Vdc bus draw (all I/O on)
42 mA
Internal 24 Vdc bus draw (all I/O on)
39 mA
Physical & Environmental
Connection type
Spring terminal blocks (spring-type)
Cable length max
30 m unshielded
Connector durability
Over 100 insertions/removals
Dimensions (clamp pulled)
8.5 mm width
Weight
140 g
