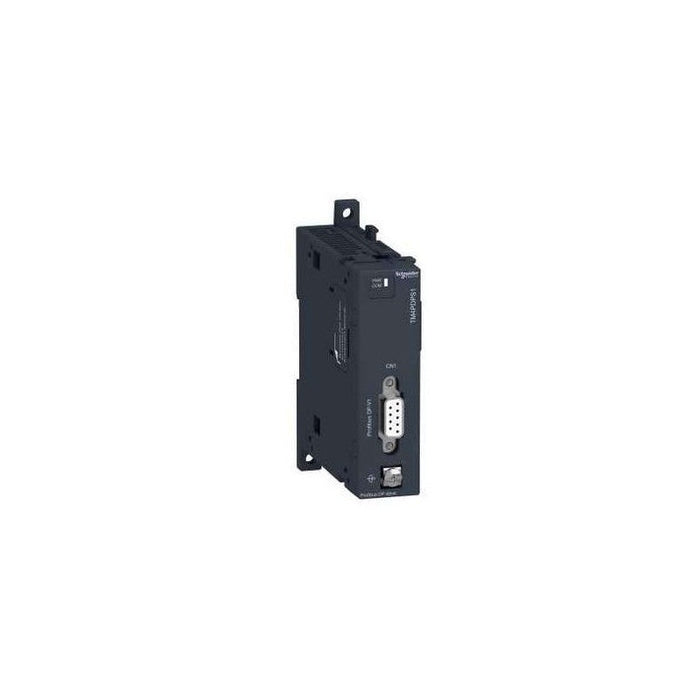

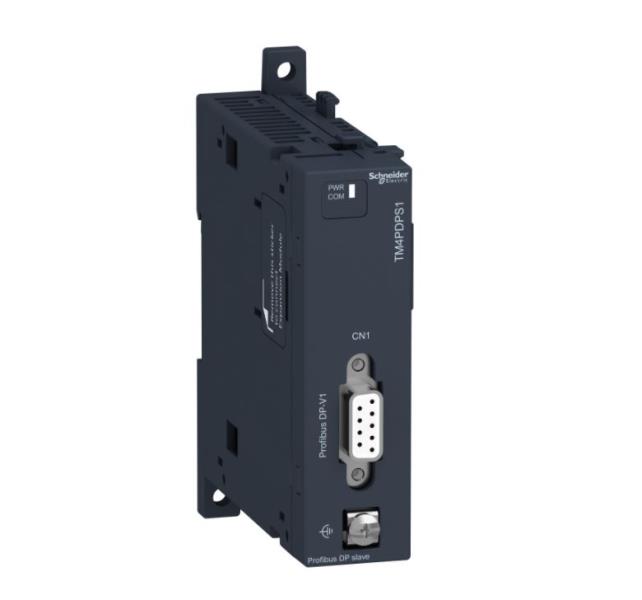

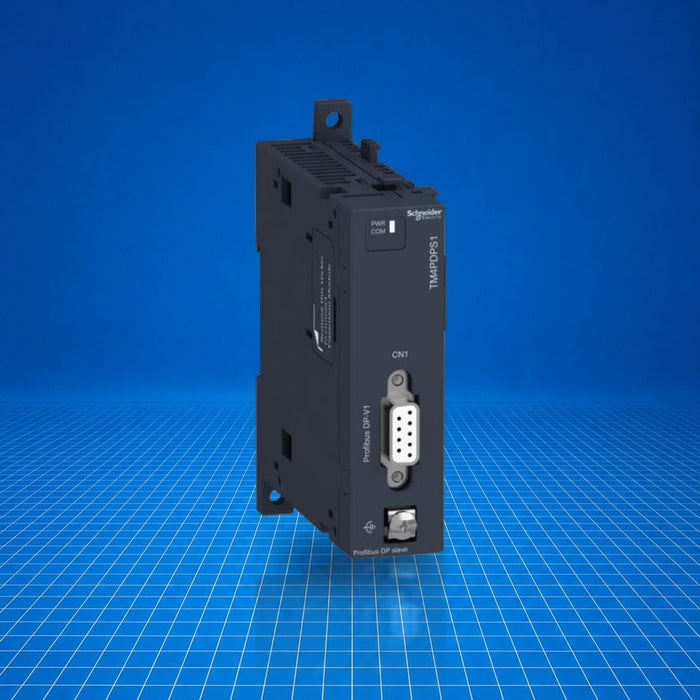

TM4PDPS1 Schneider Electric
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The TM4PDPS1 is a Modicon TM4-series PROFIBUS-DP slave communication module by Schneider Electric. It enables Modicon TM4-based controllers to act as a peripheral device in PROFIBUS-DP networks, supporting cyclic and acyclic (DP-V1) data exchange. The module provides galvanic isolation between PROFIBUS and internal electronics, and accommodates standard PROFIBUS bus parameters. TM4PDPS1 is typically used in distributed automation systems where Modicon TM4 controllers need integration into PROFIBUS fieldbus infrastructures.
Best Suited For
- Modicon TM4 controller PROFIBUS-DP integration
- Distributed I/O communication on PROFIBUS-DP networks
- Slave-mode data exchange in industrial fieldbus systems
- Applications requiring electrical isolation from PROFIBUS network
Power consumption
290 mA
Power dissipation
1.5 W
Weight
100 g (3.52 oz)
PROFIBUS standards
DP-V0, DP-V1
Isolation voltage
1.0 kV
Technical Specifications
I/O & Electrical
Interface type
Potential-free
Physical layer
EIA-485
Baud rates / cable length
3…12 Mbit/s @ 100 m; 1.5 Mbit/s @ 200 m; 500 kbit/s @ 400 m; 187.5 kbit/s @ 1000 m; 9.6…93.75 kbit/s @ 1200 m
Cable impedance
135…165 Ω @ 20 MHz
Cable capacitance
< 30 pF per meter
Minimum conductor cross-section
> 0.34 mm² (AWG 22)
Loop resistance
< 110 Ω @ 1 km
Signal loss
< 9 dB over segment
Shielding
Copper shielding
Max stations per segment
32 without repeater; 127 with repeater
Communication & Power
Consumption
290 mA
Power dissipation
1.5 W
Physical & Environmental
Weight
100 g (3.52 oz)
