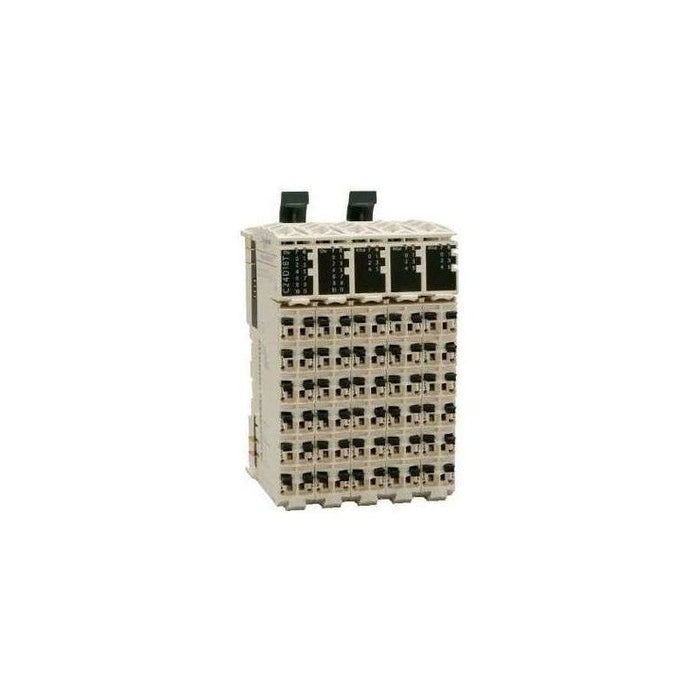

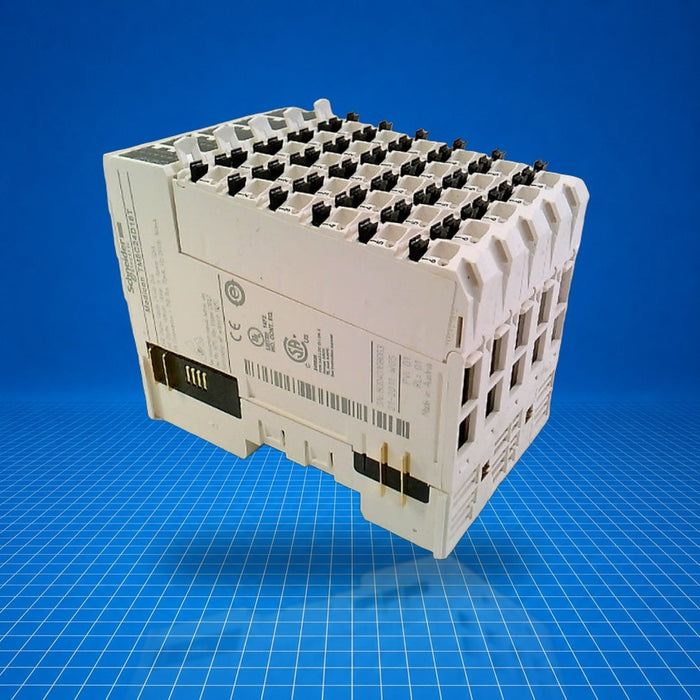

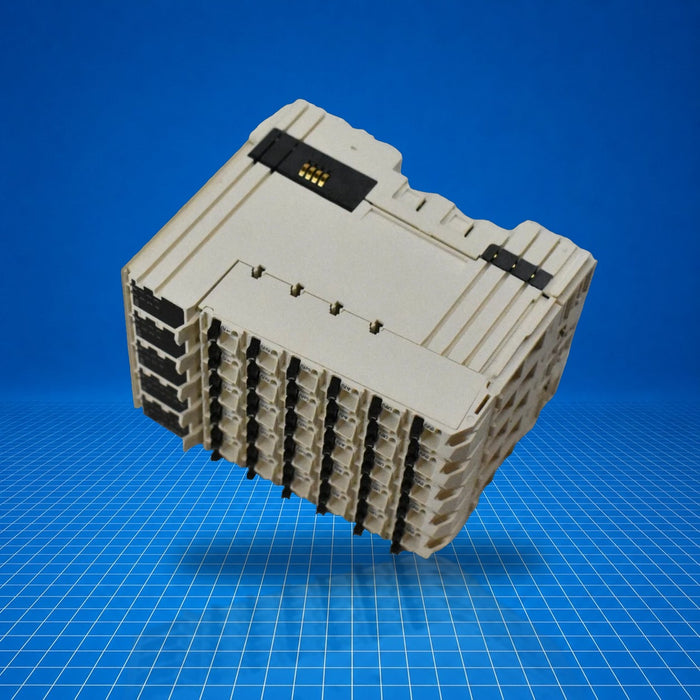

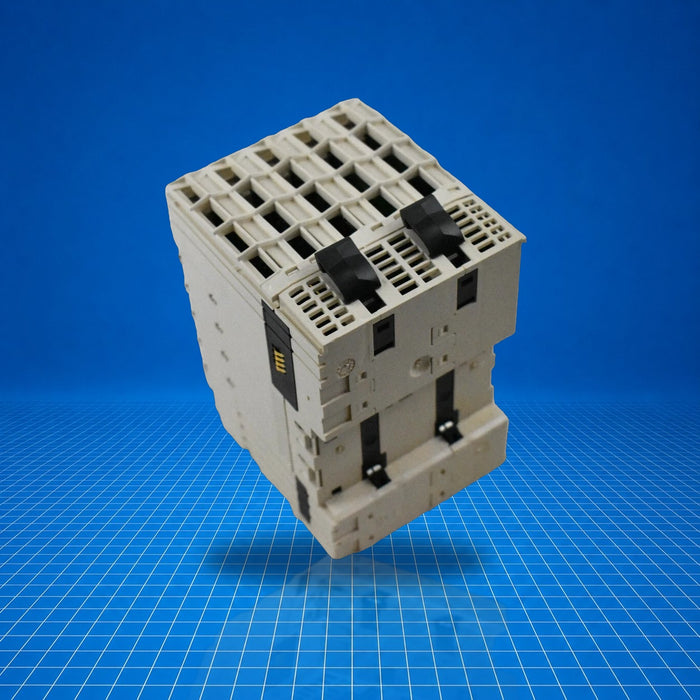

TM5C24D18T Schneider Electric

Name: TM5C24D18T Schneider Electric
Brand: Schneider
Price: 1349.98 USD
Availability: InStock

$770.85 - $1,349.98

$1,349.98

$770.85 - $1,349.98

$1,349.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The TM5C24D18T is a compact I/O expansion module within Schneider Electric's Modicon TM5 platform. It combines digital inputs and outputs into a single IP20 unit and integrates with TM5 I/O islands for industrial control systems. Designed to interface with TM5 controllers and fieldbus, it consolidates 24 digital inputs and 18 digital outputs in one assembly. Typical applications include modular machine control, packaging systems, material handling, and distributed I/O architectures where space efficiency and simplified wiring are required. TM5C24D18T integrates five electronic sub-modules into one installation.

Best Suited For

Distributed I/O islands in TM5 control architectures
Machine-level digital I/O consolidation
Packaging and material handling automation
Modular assembly line control panels

Digital inputs

24 (2×12In)

Digital outputs

18 (3×6Out, transistor)

Supply range

20.4-28.8 V DC

Power dissipation

3.71 W max.

Weight

240 g

Technical Specifications

I/O & Electrical

Digital inputs

24 (2×12In modules)

Digital outputs

18 (3×6Out transistor modules)

Max. output current load

9000 mA

TM5 bus current draw

70 mA at 5 V DC

Communication & Power

Input voltage

20.4-28.8 V DC

I/O power segment current draw

140 mA

Power dissipation

3.71 W max.

Physical & Environmental

Weight

240 g (8.46 oz)

Certifications

RoHS

RoHS proactive compliance; China RoHS and EU RoHS declarations available.
