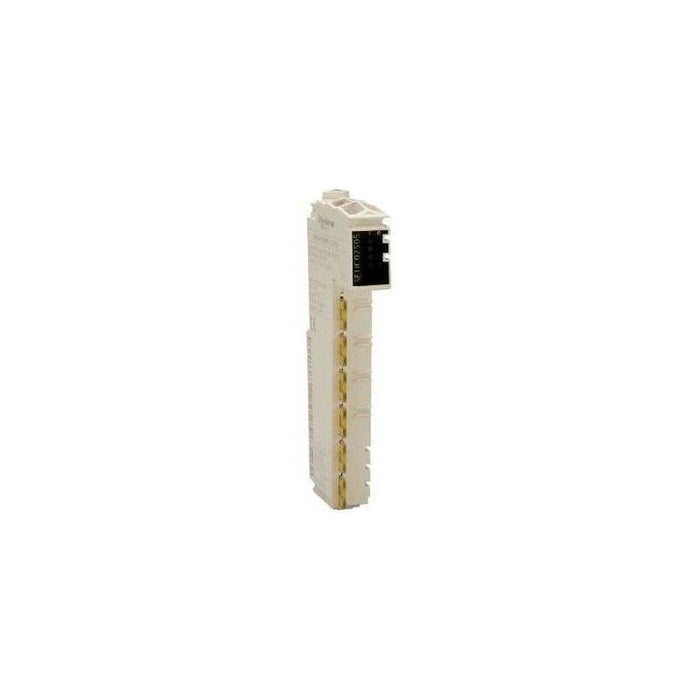

TM5SE2IC01024 Schneider Electric-Schneider-Never Used Surplus-PLC Department
Product image is representative; revision or series may vary.
Contact us to request a specific version.

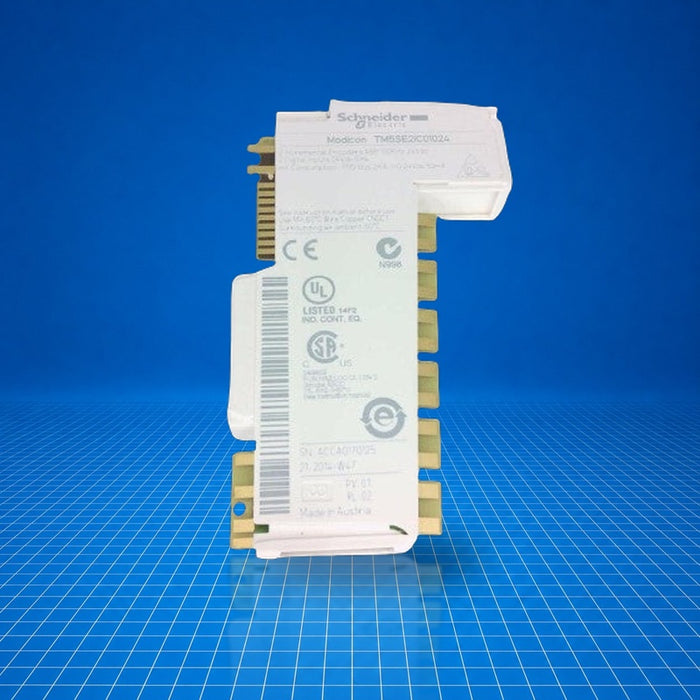

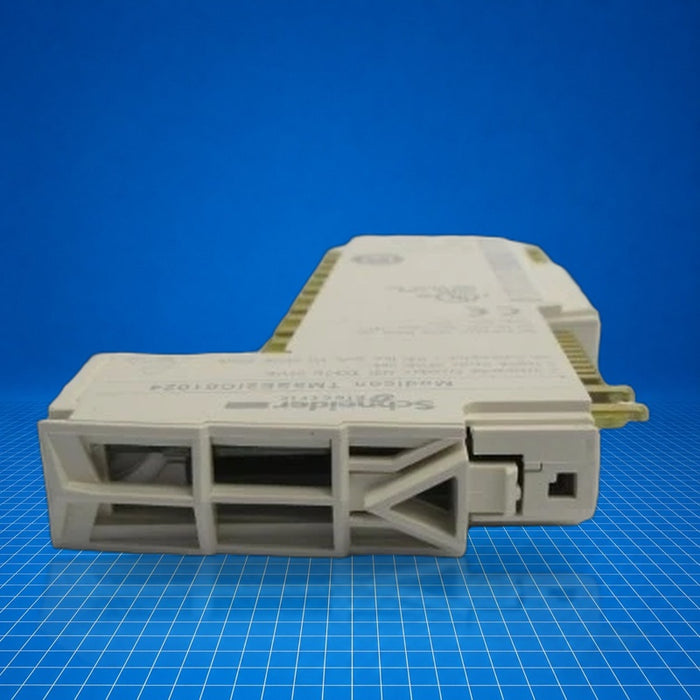

TM5SE2IC01024 Schneider Electric

$0.00 - $1,311.75
$1,311.75
$0.00 - $1,311.75
$1,311.75
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,311.75
3 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The TM5SE2IC01024 is a Schneider Electric Modicon TM5 Expert electronic expansion module designed for incremental encoder interfacing. It provides two high-speed counter (HSC) input channels compatible with ABR incremental encoders up to 100 kHz. The module operates on the 24 Vdc I/O power segment and interfaces with the TM5 bus, enabling counting, homing, and reference-pulse functions. It is typically used in motion control, packaging, material handling, and on-machine positioning systems. TM5SE2IC01024 supports both digital I/O monitoring and encoder signal capture within distributed I/O systems.

Best Suited For

  • Incremental encoder interfaces in motion control systems
  • High-speed pulse counting up to 100 kHz
  • TM5 distributed I/O installations in packaging/handling equipment
  • On-machine mounting via DIN-rail enclosed panels
Inputs
2 HSC incremental channels
Encoder input frequency
100 kHz
Supply voltage range
20.4-28.8 V DC
Power dissipation
1.51 W max.
Weight
25 g

Technical Specifications

I/O & Electrical

Number of input channels
2
Encoder input type
Incremental, 24 V DC asymmetrical
Encoder count resolution
16/32 bits
Additional digital inputs
2
Digital input voltage
20.4-28.8 V DC
Digital input current
1.3 mA at 24 V DC
Digital input resistance
18.4 kΩ
Digital input switching threshold
Low < 5 V DC; High > 15 V DC
Digital input cycle time
≤ 2 µs
Digital input connection
3-line, sinking
Encoder supply
Max 600 mA; 1.3 mA at 24 V DC
Encoder input cycle
≤ 2 µs
Encoder supply protection
Short-circuit / over current

Communication & Power

Power supply voltage
24 V DC (I/O segment)
Power supply range
20.4-28.8 V DC
I/O segment current draw
63 mA
TM5 bus 5 V DC current draw
2 mA
Power dissipation
1.51 W max.

Physical & Environmental

Weight
25 g (0.9 oz)
Isolation
500 V AC RMS between TM5 bus electronics and 24 V I/O segment (effective through FE referenced bridge)
