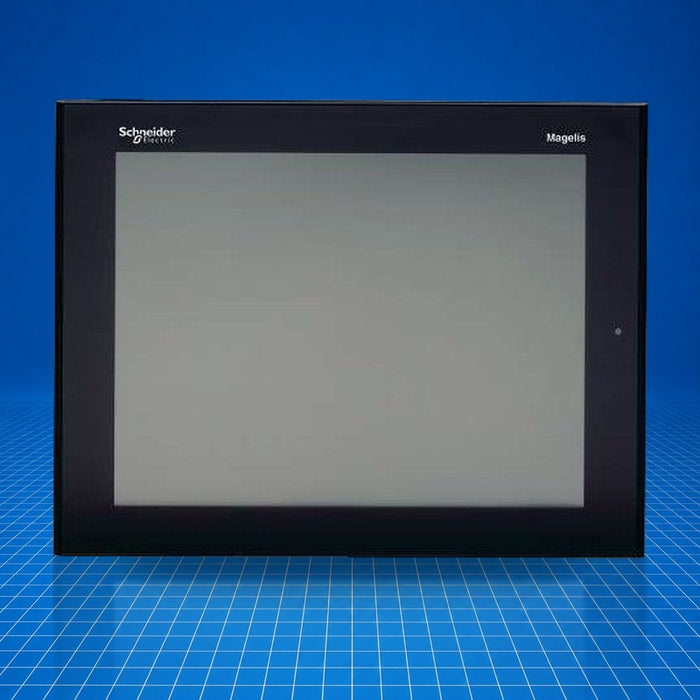

XBTGT6330 Schneider
Product image is representative; revision or series may vary.
Contact us to request a specific version.

XBTGT6330 Schneider

$1,374.97 - $5,100.00
$1,374.97
$1,374.97 - $5,100.00
$1,374.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,374.97
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$5,100.00
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The XBTGT6330 is a discontinued Schneider Electric Magelis XBT GT advanced touchscreen operator interface. It provides a 12.1-inch SVGA (800 × 600 pixel) TFT LCD for human-machine interfacing in industrial control systems. It functions as a dedicated HMI panel in machine control, process monitoring, and production line visualization. The panel communicates via Ethernet and supports fieldbus extensions through a communication card slot. The XBTGT6330 is typically integrated in factory automation, packaging, or processing environments where structured operator control is required.

Best Suited For

  • Operator display in packaging machinery
  • Process monitoring in discrete manufacturing
  • Integration into existing Magelis XBT GT series HMI layouts
  • Flush-mounted panel installation in control consoles
Display
12.1 in, 800 × 600 pixels
Supply voltage
24 V DC
Communication
Ethernet + fieldbus card slot
Front protection
IP65 / NEMA 4X-13
Status
Discontinued (EOL 2025)

Technical Specifications

Communication & Power

Display resolution
800 × 600 pixels
Display size (active area)
12.1 in (306.2 × 230.1 mm)
Colors
65,536
Backlight
LED if RL 09 or higher; otherwise CFL (50,000 h at 25 °C to half brightness)
Supply voltage
24 V DC (19.2…28.8 V DC)
Power consumption
≤ 30 W

Physical & Environmental

Operating temperature
0…50 °C (32…122 °F)
Storage temperature
-20…60 °C (-4…140 °F)
Relative humidity
0…90 % non-condensing
Altitude
≤ 1000 m without derating
Cut-out dimensions
301.5 × 227.5 mm (11.87 × 8.96 in)
Overall dimensions (W × H × D)
315 × 241 × 56 mm (12.4 × 9.49 × 2.2 in) display module only
Weight
2.5 kg (5.51 lb)
Front panel rating
IP65 per IEC 60529; NEMA 4X/13

Certifications

CEATEXcULusClass 1 Div 2ABSDNVGLLRRINARMRSWEEERoHS

CE, ATEX, cULus, Class 1 Division 2; Marine approvals: ABS, BV, DNV, GL, LR, RINA, RMRS; WEEE & RoHS compliance.
