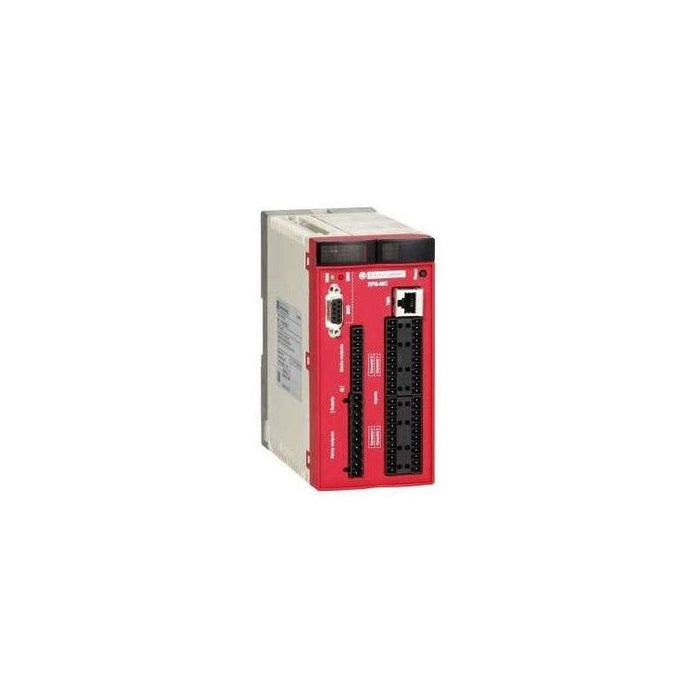

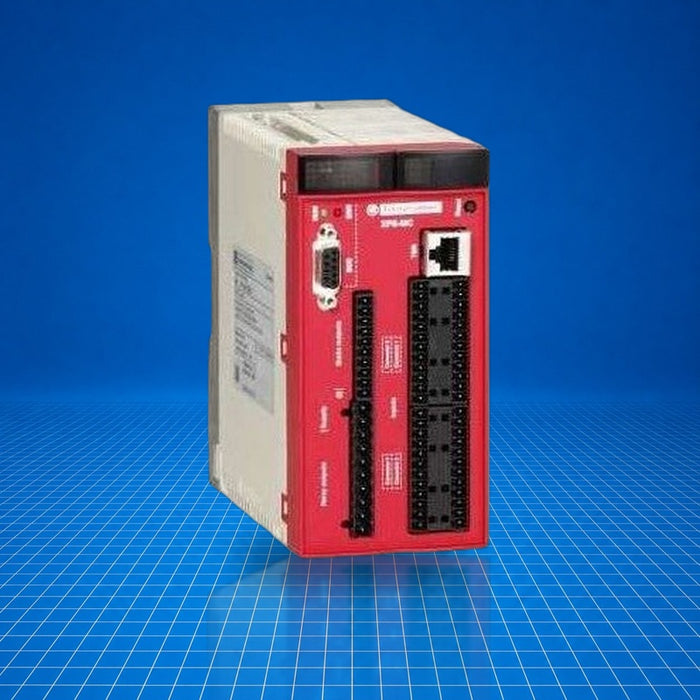

XPSMC32ZP Schneider Electric
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Schneider Electric XPSMC32ZP is a configurable safety controller in the Preventa XPS-MC family, providing safety monitoring under a control system. It provides 32 safety inputs and supports both Modbus and Profibus communication via fieldbus connectors, functioning as a slave. Typical uses include two-hand controls, light-curtain safety, zero-speed detection, and shaft/chain break monitoring in industrial machinery applications requiring Performance Level e (PL e), Category 4, and SIL 3 safety integrity.
Best Suited For
- Two-hand control applications (ISO 13851)
- Light-curtain and perimeter monitoring (EN/IEC 61496 Category 4)
- Zero-speed and shaft/chain break detection
- Integration with Modbus or Profibus networks
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Meets Category 4 (EN/ISO 13849-1), PL e, SIL 3; Relay outputs rated to IEC/EN 60947-5-1; Rated insulation voltage 300 V, impulse withstand voltage 4 kV; Conventional thermal current Ith ≤ 16 A (relay), ≤ 6.5 A (static); Associated fuse ratings: 16 A gL (power), 4 A gL or 6 A fast-blow (relay outputs); Compliance with EU Machinery Directive and EMC (EN 60204-1, EN 62061, EN 60947-1/-5-1, EN 61000-6-2/-6-4, etc.)
