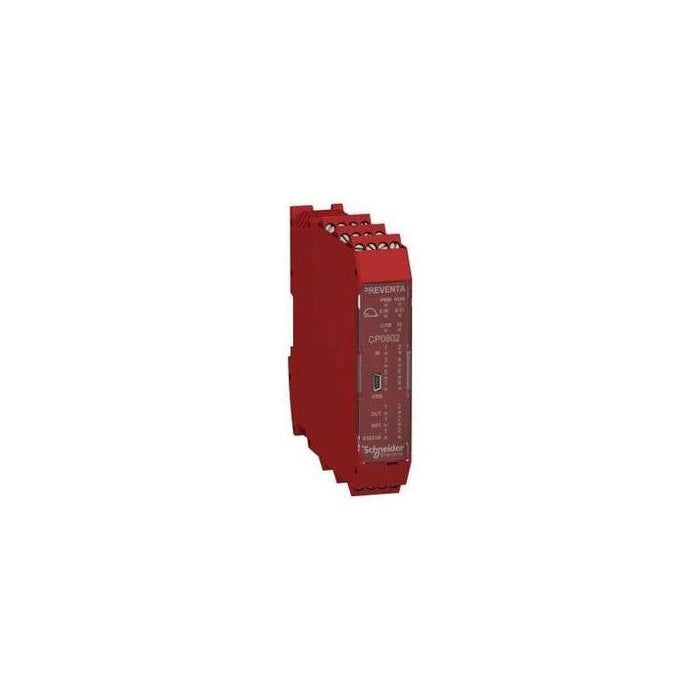

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
XPSMCMCP0802 Schneider Electric
Original price
$0.00
-
Original price
$921.22
Original price
$921.22
$0.00
-
$921.22
Current price
$921.22
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The XPSMCMCP0802 is a modular safety controller from Schneider Electric's Modicon MCM platform. It provides eight type-3 safety inputs and two safety outputs (OSSD) with test outputs, designed for PLe / SIL3 safety applications. The controller monitors safety functions and supports up to 14 expansion modules, making it suited for machine safety, guarded area monitoring, light-curtain integration, and safety network architectures. XPSMCMCP0802 serves as the core safety logic element in distributed safety control systems.
Best Suited For
- Machine guarding and interlock safety circuits
- Distributed safety expansion via modular I/O
- EDM (External Device Monitoring) restart integration
- Networking multiple safety controllers up to 100 m apart
Safety inputs
8 type-3
Safety outputs (OSSD)
2
Maximum expansion modules
14
Test outputs
4 (100 mA / 24 Vdc)
Technical Specifications
I/O & Electrical
Safety inputs
8 type 3, max applicable resistance 1.2 kΩ
Safety outputs (OSSD)
2
Test outputs
4, max current 100 mA at 24 Vdc
Communication & Power
Controller-to-controller network
Up to 10 controllers, 100 m spacing
Input voltage range (with expansions)
10.6…12.6 Vdc at basic; rises up to 25.8…54.6 Vdc with expansions
Physical & Environmental
Electronic housing
Max 24-pole, with locking latch mounting
