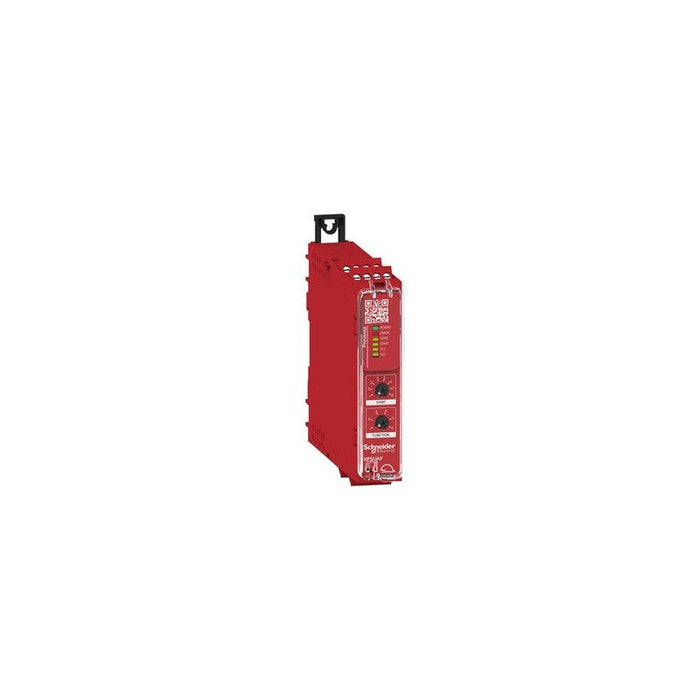

XPSUAF13AP Schneider Electric

Name: XPSUAF13AP Schneider Electric
Brand: Schneider
SKU: XPSUAF13AP
Price: 679.8 USD
Availability: InStock

$480.00 - $679.80

$679.80

$480.00 - $679.80

$679.80

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

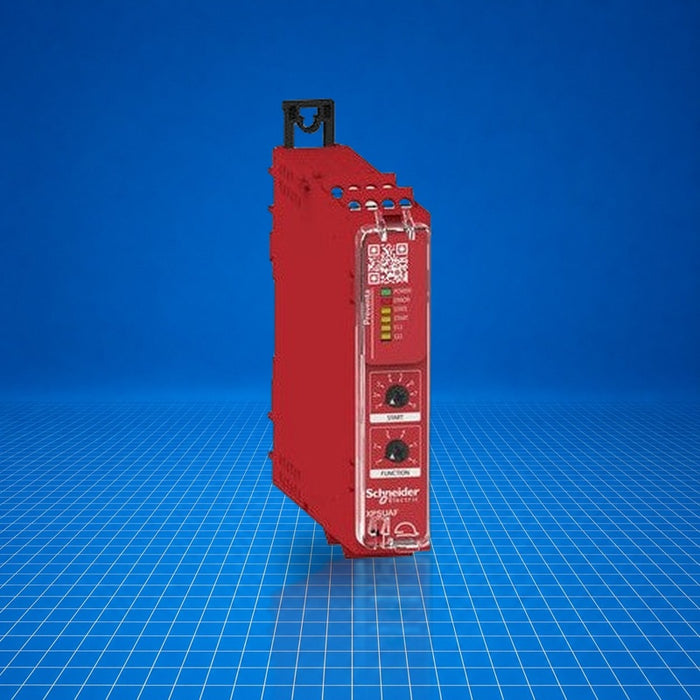

The XPSUAF13AP is a Schneider Electric Preventa Universal (XPSU) safety module, Cat. 4, designed for monitoring safety inputs-such as emergency stop buttons, guard switches, light curtains, magnetic or proximity safety switches, PNP sensors or RFID safety devices-within machine control systems. It provides dual-channel safety input monitoring with configurable safety outputs and selectable function via front rotary switches. The module supports functional safety up to PLe (ISO 13849-1), SILCL 3 (IEC 62061), and SIL 3 (IEC 61508). XPSUAF13AP is used for machine-level safety integration where a standalone safety relay is required.

Best Suited For

Emergency-stop and guard monitoring on standalone machinery
Safety light curtain or RFID safety switch integration
Proximity- or magnetic safety sensor interfaces
Applications requiring PLe/SIL3 safety levels

Safety level

PLe, SILCL 3, SIL 3

Safety inputs

2

Safety outputs

3 NO (relay)

Supply voltage

24 V AC/DC

Dimensions (W×D×H)

22.5 mm × 120 mm × 100 mm

Technical Specifications

I/O & Electrical

Input voltage

24 V AC (±15 %) / 24 V DC (-20 %/+20 %)

Safety inputs

2 safety inputs 24 V DC 5 mA

Safety outputs

3 NO relay outputs

Output type (diagnostic)

Semiconductor pulsed diagnostic output 24 V DC, 20 mA

Rated operational current (Ie)

5 A AC-1; 3 A AC-15; 5 A DC-1; 3 A DC-13

Conventional free-air thermal current (Ith)

8 A

Associated fuse rating

10 A gG for NO relay output circuit

Maximum wire resistance

500 Ohm

Response time (input open)

20 ms

Communication & Power

Power consumption (DC)

2.0 W at 24 V DC

Power consumption (AC)

5.0 VA at 24 V AC 50/60 Hz

Physical & Environmental

Mounting

35 mm symmetrical DIN-rail

Dimensions (W×D×H)

22.5 mm × 120 mm × 100 mm

Weight

0.200 kg

Insulation voltage (Ui)

250 V (pollution degree 2)

Impulse withstand voltage (Uimp)

4 kV, overvoltage category II

Certifications

cULusTÜVEACCCCKC

Functional safety: PLe (ISO 13849-1), SILCL 3 (IEC 62061), SIL 3 (IEC 61508). Safety reliability: MTTFd > 30 years; DCavg ≥ 99 %; PFHd = 1.13E-09; HFT = 1; SFF > 99%.
